QTJ4-60 Great Efficiency Small Occupy Eco Block Machines

Standard seaworthy packing suitable for sea long distance transportation

Specifications

QTJ4-60 Shenta great efficiency small occupy eco block machines

Characteristic of  QTJ4-60 Shenta great efficiency small occupy eco block machines

1. QTJ4-60 manual  hollow block machine price in india  is the semi-automatic brick machine which we design  &  develop  to meet  the market demand,  it is all mechanical transmission, has the features of compact structure, reliable operation, easy maintenance and low failure rate,  it  utilize  the  table  vibration  method  to form  the brick with excellent shape, dense frame and high strength, as well as lower cement comsumption.


2. By changing different forming mold,  the QTJ4-60 manual  hollow block machine price in india can  produce  different  wall brick, hollow brick, solid brick, paver brick and so on, it is the best solution of  the small construction engineering or the middle-small scale brick factory.

Main Specification QTJ4-60 Shenta great efficiency small occupy eco block machines

Theoretic Productivity QTJ4-60 Shenta great efficiency small occupy eco block machines

Brick Type	Dimension	Blocks/Cycle	Blocks/Hour	Blocks/Shift	Remark
Hollow Brick	390*190*190mm	4	240	1920
Porous Brick	240*115*90mm	9	540	4320
Interlock Brick	225*112.5*60mm	9	540	4320
Solid Brick	240*115*53mm	21	1890	10080

Note: Special brick model is available according to customer demand.

Advantage of QTJ4-60 Shenta great efficiency small occupy eco block machines

1. Automatic pallet and concrete feeding, it can save manpower and reduce the labor intensity, increase the forming speed and enhance the working efficiency;

Raw Material for QTJ4-60 Shenta great efficiency small occupy eco block machines

 Our machine can adopt the following raw materials to make the good quality hollow brick, solid brick

and paver brick.

1.Sand:        30~40%;                                      2.Fly Ash or Additive:      0 ~10%;
3.Cement:   10~20%;                                      4.Crushed Stone (<5cm): 30~40%;
5.Construction Refuse or Mineral Slag.

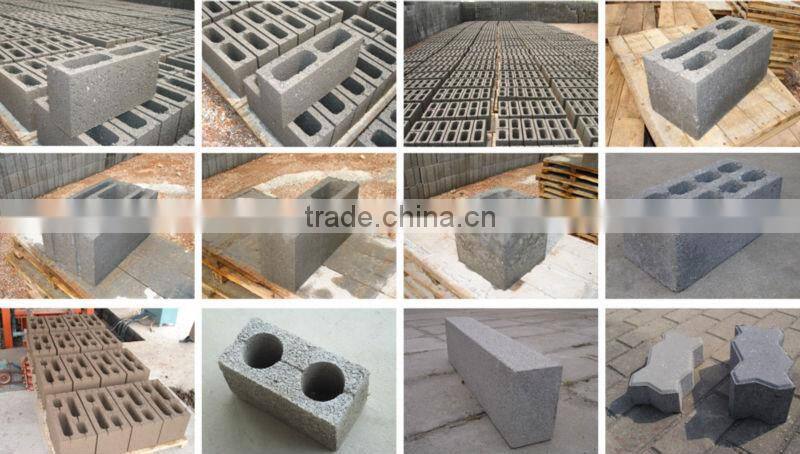

Brick Sample QTJ4-60 Shenta great efficiency small occupy eco block machines

Our machine can produce the concrete hollow brick, solid brick, porous brick, paver brick, interlock brick,

road traffic stone and so on.

Production flow of QTJ4-60 Shenta great efficiency small occupy eco block machines

Experienced in selling concrete brick machine to more than 30 different countries, we pack and load the machines well and prevent any damages during transportation, all the key parts are protect by the wooden box.

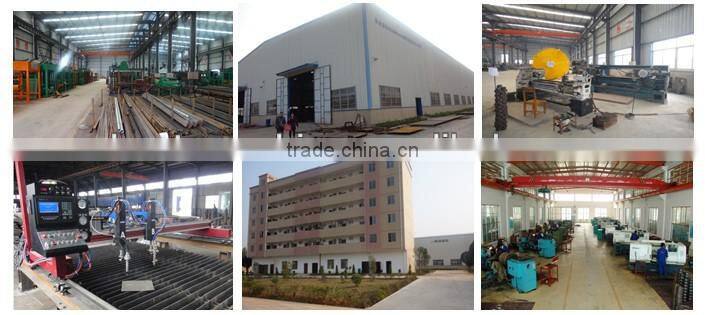

Factory Ability:

1.Factory Area: 40,000 square meter;

2.Facility: CNC Lathe: 06 sets; Boring Lathe: 02 sets; Shaper: 02 sets; Milling Machine: 04 sets;

  Press Brake: 02 units, CNC Flame Cutter: 01 set;  Crane: 10 sets;  Shot Blast Machine: 01 set.

Quality Control:

We adopt the high quality steel materials, and every process will have the strict inspection and test

to ensure the machine has perfect performance.

Certification:

Exhibitions:

We take parts in many exhibitions every year,  such as Canton  Fair in  Guangzhou;  India  international engineering  machinery,  building  materials machinery,  mining  machinery,  engineering  vehicles  and parts exhibition; International concrete technology and equipment exhibition in India; The ASEAN-China Exposition in Nanning, etc.

Pre-sale:

Analyze the customer’s need and factory layout design, confirm scale of operation;

Select the fitting choice;
Provide perfect solution to set up a factory.

Sales:

Help to set up the factory;

Provide free service of installation and commissioning;

Provide training for operator and maintenance person.

After-sale:

Help customers to establish production craft formula;

Provide the consultation all the time;

Supply moulds and parts all the time.
