Product Details

Condition	New	Power Type	Electric
Place of Origin	Guangxi, China	Brand Name	SHENTA MACHINE
Model Number	CTS1000 Twin Shaft Mixers in Concrete Mixers	Power(W)	37kw
Dimension(LWH)	262521421875mm	Weight	5500kg
Certification	CE and ISO9001	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

4SETS Per 40HQ,according to customer requirements

Product Description

Specifications

1.Twin Shaft Mixers in Concrete Mixers
2.German technology
3.For producing ready-mix and precast concrete

Good Stability & High Efficiency CMP1000 Twin Shaft Mixers in Concrete Mixers

......................................................................................................................................................................................................................................

1.Characteristic of Twin Shaft Mixers in Concrete Mixers

HZS Series concrete mixing plant is a modular, quickly-installed concrete mixing plant designed by our company according to market requirement. The aggregate is fed by loader, supplied by batcher and mixed by twin horizontal shafts compulsory mixer. The cement is stored in silo, conveyed by screw conveyor and weighed by cement scale. The water is supplied by water pump and weighted by water scale. The whole procedure is done and controlled by electric control system automatically. It has the function of matching memory, freefall correction, separated manual operation etc, which can realize mode of both manual and automatic operation.

This series of product has the features of simple structure, convenient installation, low cost and advanced configuration. It suits to industry or civil construction, road, bridge and other at site concrete mixing or commercial concrete mixing.

...............................................................................................................................................................................

2.Features of Twin Shaft Mixers in Concrete Mixers

·The reduction unit (patent technology), specially designed for a balanced distribution of power to the various mixing device, ensures a high efficiency and low-noise rotation. Compared the traditional gearbox, this unit takes less space, and the maintenance space of the mixer can enlarge 30%.

·Special designed mixing facility makes the mixing faster and more homogenous, no material heaped.

·According to different materials, the liner and tiles can be cast-iron, HARDOX steel plate (Sweden original) or hard facing materials.

·Ni-hard cast iron blades are more wearable. As an alternative, we also offer polyurethane blades for special requirement.

·Large access facility is for easy maintenance and cleaning. The key-operated safety switch guarantees that the motor cannot be powered with the cover open, even if the disconnect switch is closed.

·Hydraulic system equipped with manual pump allows the door be opened in case of electric failure.

·The discharging door is equipped with limit switches, which can be opened at any angle. Maximum three discharging doors are available.

·From optimal model selection to customerized mixer for special applications, we can offer a full range of technical support and maintenance services

.......................................................................................................................................................................................................................................

3.CTS1000 Twin Shaft Mixers in Concrete Mixers

1.Mixing shafts:The mixing shaft made from smithing alloy steel.They have the best torsion-bent intension.

2.Drive device:Drive device drived by two-planetary gear boxes.And this kind of design has advantages of compact configuration,stabilized driving,low noise and long used life.

.............................................................................................................................................................................

4.Main Technical Parameters of Twin Shaft Mixers in Concrete Mixers

CTS1500/1000	Inputcapacity	Outcapacity	Power
	1500L	1000L	37kw
	Paddles number	Weight		Dimension
	2×7	5500kg		262521421875mm

.......................................................................................................................................................................................................................................

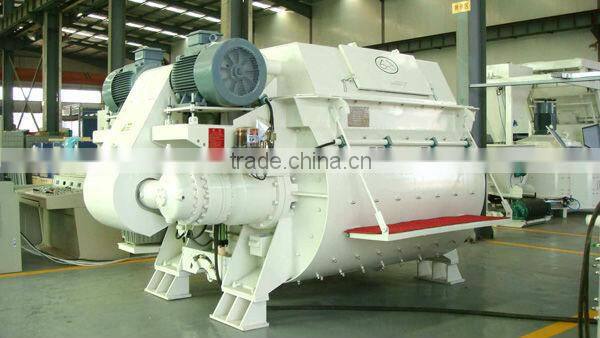

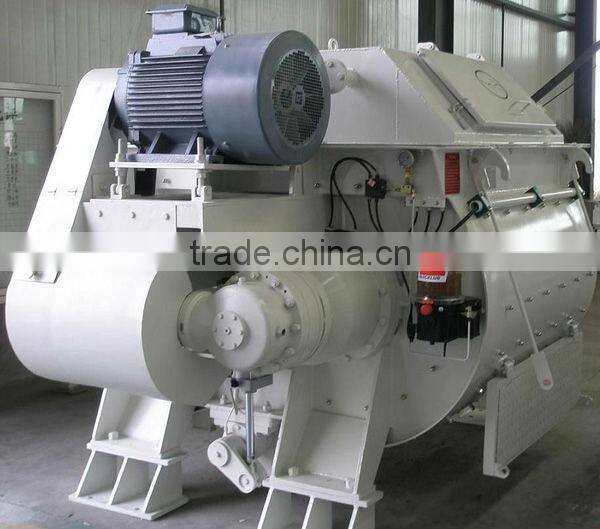

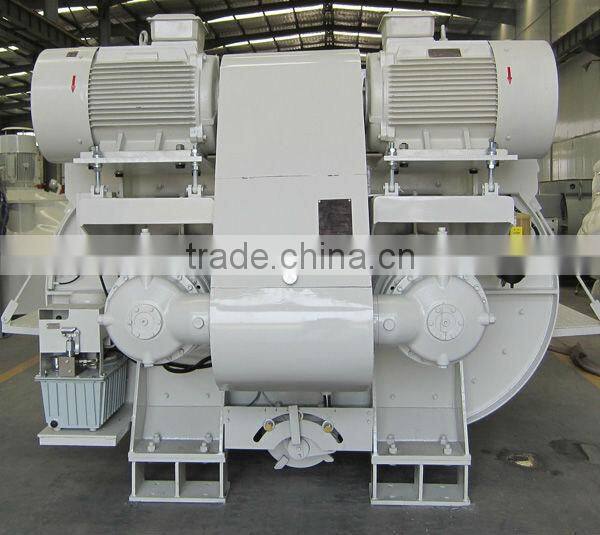

5.Photos of Twin Shaft Mixers in Concrete Mixers

Mixing Blades: Adopt high-rigidity and high-tenacity wearable cast alloy steel

6. shenta user production line of Twin Shaft Mixers in Concrete Mixers

......................................................................................................................................................................................................................................

SHENTA MACHINE, Your best partner & Reliable Consultant

Contact Maky Tel +86.13788113588 you will get swift & professional response!

......................................................................................................................................................................................................................................

Company Profile

Guangxi Shenta Machinery Equipment Co., Ltd.

Nanning SHENTA Machinery Equipment Co., Ltd, established in 1973, is the earliest professional and leading manufacturer of concrete block making machinery. After decades of hard working, we have developed into the high-tech enterprises which integrate the research & development, manufacturing, sales and service. SHENTA factory covers an area of 40,000 square meter, with senior engineers more than 20 people and all kinds of technician more than 200 staff. With an annual production capacity of 500 sets. SHENTA devoted great care to market planning and development, we have earned ISO9001-2008 Quality Management Certificate in 2008, and awarded the title of "valuing contract and keeping promise" for many years. With the advanced technique, sophisticated technology, strict supervision and perfect service, SHENTA has become the high quality supplier in new building material field. SHENTA not only distributed in all around China, but also exported to Southeast Asia, Africa, and Oceania etc. Adhering to the philosophy of "Credit & Honest, dedication & devotion, pragmatism & practice, Innovation & Creation", SHENTA stride forward to construction equipment enterprise of specialization, scale and internationalization, provide strong support of equipment for the new building material, building the solid future for you.
