High Quality DIN8077/8078 Glass Fiber Reinforced PPR Pipe

Specifications

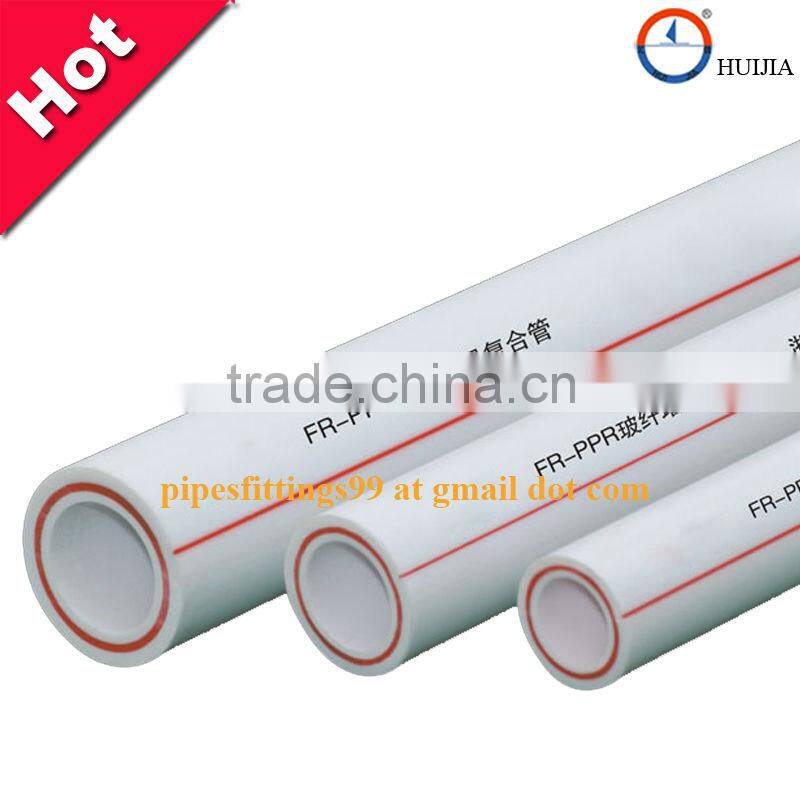

High quality DIN8077/8078 glass fiber reinforced PPR pipe

  Features

 1. Brand name:  HUIJIA (CHINA TOP BRAND), accept OEM

 2. Material: Random Polypropylene    (HYOSUNG R200P, BEIJING YANSHAN)

 3. Pressure Rating: 1.25MPa, 1.6MPa, 2.0MPa, 2.5MPa

 4. Production temperature: -40^oC - +95^oC

 5. Colors: white, green, grey, blue and other colors are also available upon request.

 6. Standard: GB/T 18742.2-2002, Germany Standard DIN8077/8078

 7. Certificate: GOST, State registration certificate(SR), ISO9001, CE

 8. Service life: 50 years

 9. Size:

Photo	Product Name	Specification (mm)	Specification (mm)
	PPR fiber pipe (PN=12.5) cold water pipe	20*1.9	1/2"
		25*2.3	3/4"
		32*3.0	1"
		40*3.7	1.25"
		50*4.6	1.5"
		63*5.8	2"
	PPR fiber pipe (PN=16)     cold water pipe	20*2.3	1/2"
		25*2.8	3/4"
		32*3.6	1"
		40*4.5	1.25"
		50*5.6	1.5"
		63*7.1	2"
	PPR fiber pipe (PN=20)    hot water pipe	20*2.8	1/2"
		25*3.5	3/4"
		32*4.4	1"
		40*5.5	1.25"
		50*6.9	1.5"
		63*8.6	2"
	PPR fiber pipe (PN=20)    hot water pipe	20*3.4	1/2"
		25*4.2	3/4"
		32*5.4	1"
		40*6.7	1.25"
		50*8.3	1.5"
		63*10.5	2"

Advantages

1. Low coefficient of liner expansion---less than 0.045mm/mk, which is only 30% of PP-R pipe's, and this is similar with PP-R stable composite pipe

2. Good rigidity and stability

3. High impact resistance in low temperature

4. High pressure resistance, which is 25% more than PP-R pipe in the same condition

5. Link by welding, safe and reliable

6. Inner layer is pure PP-R material with smooth surface.

PPR pipes and fittings, PPR valves, PE(X)-AL-PE(X) pipe, PE-RT pipe, brass fittings

Certificate

Our factory

Zhejiang Huijia machinery Co., Ltd. was established in 1999, covers more than 33 000 square meter.

HUIJIA specialized in producing PP-R pipes and fittings, brass fittings, PE(X)-AL-PE(X) pipe, PE-RT pipe and faucet. It has passed ISO, CE, GOST, State registration certificate.

As a well-experienced manufacturer of the PP-R pipes and fittings, brass fittings, PE(X)-AL-PE(X) pipe, PE-RT pipe and faucet, we can assure you the quality of the product is one of the best in the industry, and it has also won us the repution worldwide.

Welcome to contact us

If you are interested in our product, please feel free and contact us for more information today!

 We are ready to serve you the best!
