Phenolic Foam Insulation Board With Color Steel Surface
- XIAMEN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | LD, LD phenolic foam insulation board with color steel surface | |
| Model Number | ldp167 |
Product Description
phenolic foam insulation board with color steel surface /Phenolic air conditioning duct panel / Phenolic foam air duct panel / Phenolic Pre-insulated Duct Panel / phenolic sandwich panel
Leading duct Phenolic Foam Insulation Board is used for central air conditioning duct system. It is energy saving and environment-friendly. It had become more and more pupular all over the world.
Phenolic Foam insulation Board consist of 20mm thickness phenolic foam insulation faced on both sides with 80micron thickness alumminum foil, or inside with 80micron thickness aluminum foil & outside with 200micron thickness aluminum sheet.
Technical Data:
| Standard Size | 3950/2950/2900*1200*20mm |
| Foam Density | 45/60kg/m3 |
| Aluminum foil thickness | 80/80micron, 80/200micron |
| Thermal Conductivity | 0.02W/m.k |
| Compressive Strength | 0.25MPa |
| Bending Strength | 2MPa |
| Water Absorption | 0.25% |
| Dimension Change | 0.3% |
| Maximum Wind Velocity | 13-20m/s |
| Maximum Running Temperature | 120 ℃ |

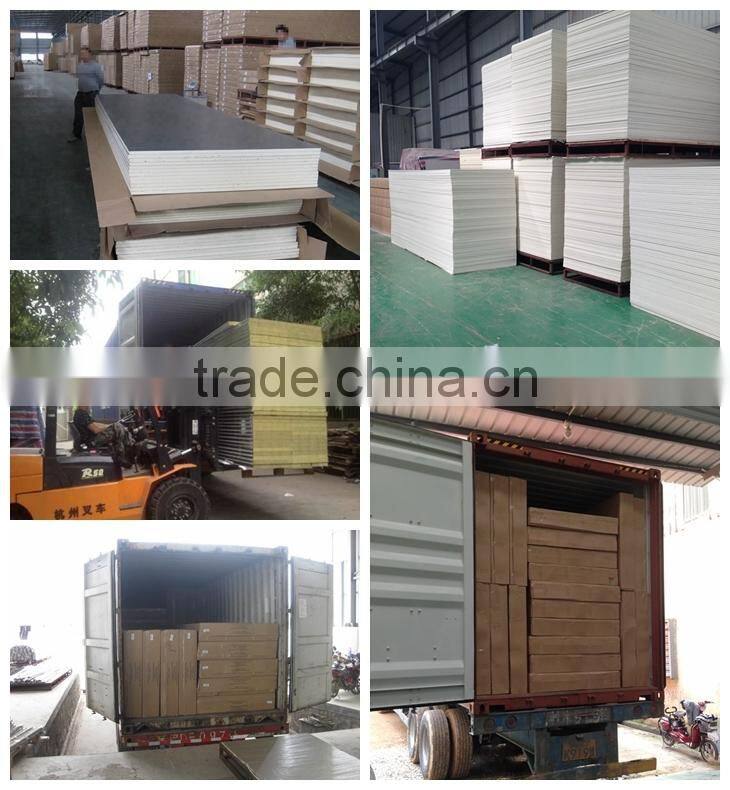

Pre-insulated Duct Panel will be packed as below details:
1. 40'HQ container: 3950*1200*20mm, 12sheets packed in one carton, total 660 sheets.3129m2
2. 20'GP contaienr: 2900*1200*20mm, 10sheets packed in one carton, total 400 sheets.

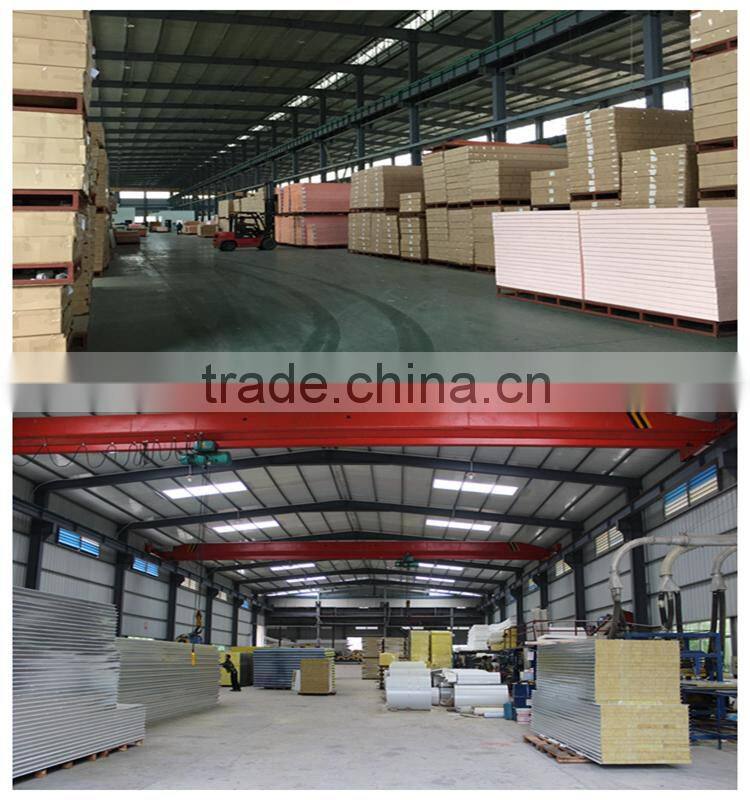

Xiamen Leading Duct Technology Co., Ltd. was established in 2012, We specialize in the research and manufacture of insulation products and air duct systems, such as PIR/PU/Phenolic duct panels, insulation boards, insulation pipe, insulated panels' production lines, etc.
We also have a subsidiary fty located in Shenzhen City, which specialize in color steel sandwich panel and other steel structure fitting material
Our products are widely used in construction, air conditioning duct, train, hotel, cold storage and other fields.
If you need more info, please feel free to contact us:
Tel: 0086-592 6251110
Mob: 0086-13459209134 (Simon) /0086-13646023405 (Michael)
Website: www.leading-duct.en.china.cn
