Wood Lathe Machine CNC1503SA Cnc Wood Turning Lathe
- QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
CNC Woodprocessing Machine Tool
-
CNC2504SA CNC Woodworking Lathe From Wood Lathe Manufacturer
-
Woodworking Cnc Lathe CNC1503S From Wood Lathe Manufacturer Taian Haishu
-
Woodworking Machines HS1503 Round Log Machine From Wood Lathe Manufacturer
-
CNC Wood Processing Lathe on Promotion,new Model
-
2016, New Wood Processing Machine, CNC Woodworking Lahte Praised by Clinets
Product Details
Condition | New | Place of Origin | Shandong, China | |
Brand Name | HAISHU | Model Number | CNC1503S | |
Voltage | 380V/50HZ | Power(W) | 5000 | |
Weight | 1200KG | Dimension(L*W*H) | 2700*900*1300(mm) | |
Certification | ISO CE | Warranty | one year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

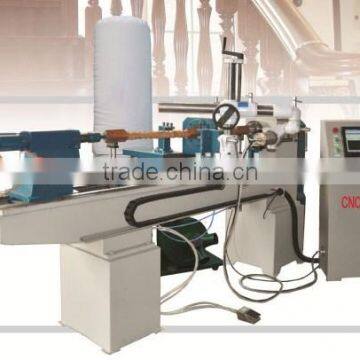

wood lathe machine CNC1503SA cnc wood turning lathe
CNC1503S CNC woodworking lathe
1.Technical Parameters
Brand name | Unit | Technical data | ||
CNC1503S | CNC1504S | |||
Max processing size | mm |
F300 *1500 | F400*1500 | |
Z-axis maximum moving distance
| mm | 1500 | ||
X-axis maximum one-way moving distance
| mm | 200 | 250 | |
Main drive form
|
| Independent spindles, frequency stepless
| ||
Spindle speed range
| r/min | 0-3500 | ||
Feeding speed | mm/min | 3000 | ||
Chuck diameter | mm | Φ160 | ||
Main motor power | kw | 5.0 | ||
Power supply |
| 380V/50HZ | ||
Dimensions (L * W *H) | mm | 2700×900×1300 | ||
Net weight(Kg) | kg | 1200 |
1. the characteristics
1. horizontal flat bed structure;
2, the spindle frequency stepless speed regulation;
3, X / Z-axis stepper drives;
4, bed rail for high-precision gauge;
5, precision ball screws, automatic forced lubrication;
6, duplex turret, roughing, finishing once completed;;
7The control system uses sophisticated CNC controller, 12-inch color screen, the international standard G-code CNC language, supports a variety of software, support for technology extensions.
3. use
Processing: staircase column, bending round, vases, tables, chairs legs, European furniture Roman, wooden hangers, washbasin and so on; cylindrical, conical, curved, spherical and other complex shapes rotator semi-finished wood products or wood .
4 the configuration
Standard configuration:
1,12 inch color screen, built-in CNC computer;
2, imported linear guide, precision ball screws;
3, the rotation center with the knife (5CM wooden, 6CM wooden);
4, pneumatic feeding, automatic centering;
5, pneumatic material thimble;
6, V-type front steel tools;
7, with controls easy to use software, the basic pattern software;
8. Random accompanied.
5.Select Configure
1, φ160 four jaw chuck linkage;
2, engraving spindle and pull trough multifunction control section;
3, woodworking special vacuum cleaner;
4,220V constant power frequency spindle control;
5, universal swivel joints;
Note: Customer-owned gas source, other configurations can be selected according to customer requirements.
If you are interested in iwood lathe machine CNC1503SA cnc wood turning lathe , welcome to leave a message or send the inquiry to understand the details of machine.
