Flat bed wheels repair machine CK6166A

FOB Price

USD $10,000 - $15,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	660mm	Place of Origin	Shandong, China
Brand Name	HaiShu	Model Number	CK6166a
Voltage	220V/380V	Power(W)	7.5kw
Dimension(LWH)	240019002100mm	Weight	3000kg
Certification	CE ISO	After-sales Service Provided	Engineers available to service machinery overseas

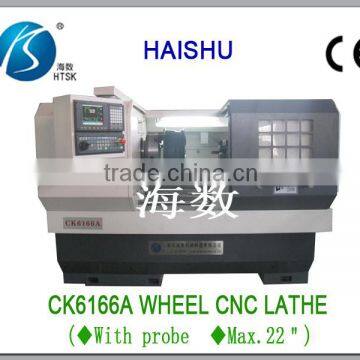

CK6166A Wheel CNC lathe

1.Technical parameters

Project name	Unit	Technical paramaters
Max. turning diameter over the bed	Inch	26”(φ660mm)
Machining diameter of the wheel	Inch	Manual chuck 5"~20" 12"~22”(Optional) Automatic chuck(Optional) 12"~18"
Max. machining length of the workpiece	mm	750
Max. measured depth of the probe	mm	50
Max. machining depth of the tool	mm	50
Machning accuracy		IT6-IT7
Surface roughness	um	Ra0.8~0.1
Main transmission form		Independent spindle; frequency conversion stepless
Range of spindle speed	rpm	150~2000
Main motor power	kw	7.5
Fast-moving feed	mm/min	X - axis:5000 Z - axis:8000
Repeat positioning accuracy	mm	X - axis:0.01 Z - axis:0.015
Standard accessories		4 station electric tool
Repeat positioning accuracy(mm)	mm	0.008
Section of turning tool(mm)	mm	25×25
The size of the machine (L×W×H)	mm	240019002100mm
Net weight of the machine(kg)		3600

2. Main features

1.Achieve the wheel surface profile measurement and data collection and Program Optimization,

2.Automatic precision repair and machining in accordance with the curve of the wheel surface

3.Spindle frequency stepless speed;

4.X / Z axis servo drive;

5.Manual jaw self-centering chuck;

6.Machine guard full protection;

7.Automatic oil lubrication.

3. Uses

1.The machine tool suitable for High-precision turning and repair processing for surface of car wheel.

2.The machine tool has also the function of the general CNC lathes .
