API 5L Gr.A Oil Gas Seamless Line Pipe

FOB Price

US$ 800 - 1,400 / Ton

2 Tons(Min. Order)

Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Thickness	0.889, 22.225
Section Shape	Round	Outer Diameter	22.225 - 457.2 mm
Place of Origin	Hunan, China	Secondary Or Not	Non-secondary
Application	Other, Oil and Gas Line Pipes	Technique	Cold Drawn
Certification	API	Surface Treatment	Galvanized
Special Pipe	API Pipe	Alloy Or Not	Non-alloy

Product Description

API 5L Gr.A Seamless line pipe

Used for construction of long distance pipelines for combustible liquids and gases, nuclear station pipelines, heating system pipelines, general-purpose pipelines, vessels manufacturing, mechanical engineering and instrumental engineering.

Detailed Images

Specifications

Good quality low price Alloy Steel Pipes for Refinery Service
1. good quality
2. best and competitive price
3. professional services

Quality Standard	API 5L
Steel Grade	Gr. A
Delievery Conditon	Hot finish	Cold drawn
O.D.	50.8-762mm	2.2225-457.2mm
W.T.	0.635-101.6mm	0.889-22.225mm
Length	Random Length, Fixed Length, SRL, DRL
End	square ends (straight cut, saw cut, and torch cut);
	beveled for welding (All line piping is square cut to the tolerance specified and bevelled to ANSI B16.25. An angle of 30º (-0º, +5º) and a landing of 1,6 mm, ±0,8 mm is applied. Schedule 160 material is supplied without bevelling.)
Surface	Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy, Fusion Bond Epoxy, 3-layers PE)
Coating Standard	1)ANSI/AWWA C104/A21.4 American National Standard for Cement-Mortar Lining for Ductile-Iron Pipe and Fittings for Water
	2)ISO 21809 Petroleum and natural gas industries — External coatings for buried or submerged pipelines used in pipeline transportation systems
	3)DIN 30670 Polyethylen coatings of steel pipes and fittings
End	square ends (straight cut, saw cut, and torch cut);
	beveled for welding (All line piping is square cut to the tolerance specified and bevelled to ANSI B16.25. An angle of 30º (-0º, +5º) and a landing of 1,6 mm, ±0,8 mm is applied. Schedule 160 material is supplied without bevelling.)
Test	Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Hardness Test, Blow Test, Impact Test, etc.), Exterior Size Inspection, Hydrostatic Test(The standard pressure is limited to 20,7 MPa (3000 psi)), X-ray Test.
Mill Test Certificate	EN 10204/3.1B

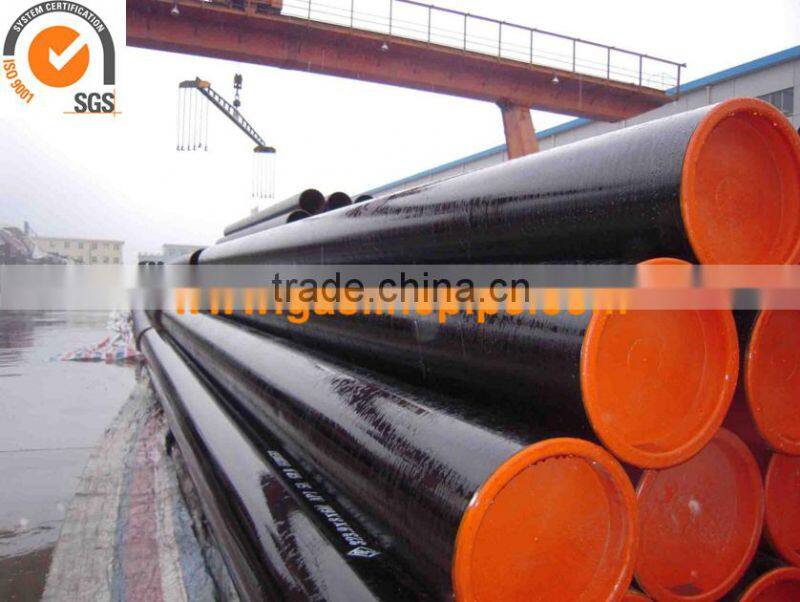

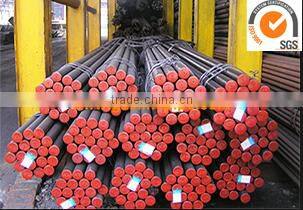

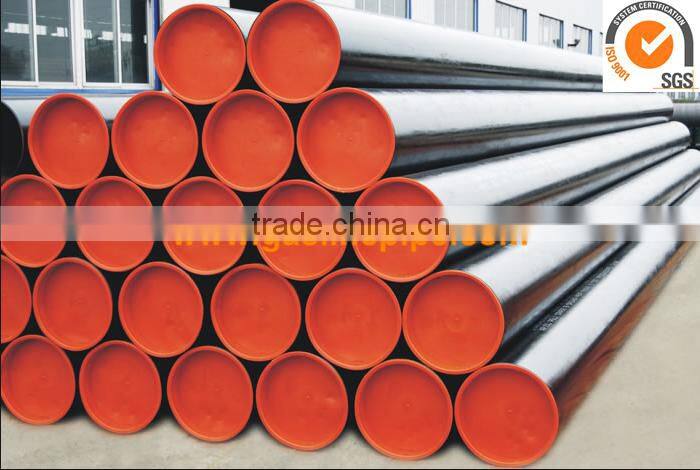

Product Pictures
