ASTM A513 1010 High Precision Cold Rolled Welded Steel Tube
- 10000 Ton / Tons per Month
- SHANGHAI NINGBO QINGDAO DALIAN TIANJIN ETC
- T/T D/P D/A
You May Like
-
DIN Standard ST52-3 High Precision Cold Rolled Welded Steel Tube
-
DIN Standard RSt37.2 High Precision Cold Rolled Welded Steel Tube
-
EN Standard E355 High Precision Cold Rolled Welded Steel Tube
-
EN Standard E235 High Precision Cold Rolled Welded Steel Tube
-
EN Standard E195 High Precision Cold Rolled Welded Steel Tube
-
JIS SS400 High Precision Cold Rolled Welded Steel Tube
Product Details
| Thickness | 0.5, 1.6 | Section Shape | Round | |
| Outer Diameter | 8 - 80 mm | Secondary Or Not | Non-secondary | |
| Application | Other, used in automotive industry | Technique | Cold Rolled | |
| Certification | CE | Surface Treatment | Other | |
| Alloy Or Not | Non-alloy |
Product Description

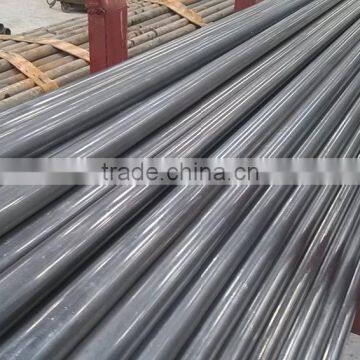

High Precision Cold Rolled Welded Steel Tube
Applications:
Furniture, Decorative, Curtain, Telescopic tube used in plastic injection, Automotive and precision machinery.
Quality Standards:
ASTM A513 Standard Specification for Electric Resistance Welded Carbon and Alloy Steel Mechanical Tubing
Steel Grades:
JIS Standard: SPCC, SS400
EN Standard: E195, E235, E355
DIN Standard: RSt37.2, St52-3
ASTM Standard: 1010, 1020
Chemical Composition(%):
Grade | C | Si | Mn | P | S |
1010 | 0.02-0.15 | / | 0.30-0.60 | 0.035 max | 0.035 max |
Size Range:
Outer Diameter: 8mm-80mm
Wall Thickness: 0.5mm-1.6mm
Delivery Conditions:
+C (BK) Hard. No final treatment after final cold rolling.
+LC (BKW) Soft. Final heat treatment is followed by a suitable drawing pass (limited reduction of area).
+SR (BKS) Stress Relieved. After final cold rolling, the tubes are stress relieved in a controlled atmosphere.
+A (GBK) Annealed. After final cold rolling, the tubes are annealed in a controlled atmosphere.
+N (NBK) Normalized. After final cold rolling, the tubes are normalized in a controlled atmosphere.
Mechanical Properties( T=20°C if not differently stated ):
Grades | Delivery Conditions | Tensile Strength Rm (Mpa) | Yield Strength R2 (Mpa) | Elongation in the longitudinal direction Al (%) |
1010 | +C | 310 min | 221 min | 15 min |
1010 | +N | 276 min | 172 min | 30 min |
Package:
1. Bundle Packing.
2. Plain end or vanished as per customer’s request.
3. Wrapped in waterproof paper.
4. Sackcloth with several steel strips.
5. Pack in heavy tri-wall boxes.
Mill Test Certificate:
MTC is issued in accordance with EN 10204.
