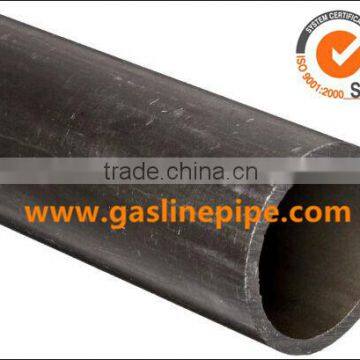

ASTM A513 4130 Carbon Steel Cold Drawn Welded Tube

Applications:

Agricultural oil cylinder (<200bar), more fuel-efficient cylinder, stabilizer, load cylinder, steering system.

Steel Grades:

ASTM Standard: 4130

Size Range:

Outer Diameter: 18mm-230mm
Wall Thickness: 1.5mm-15mm

Tolerance of Dimensions:

Inner Diameter：H9, H10
Inner surface roughness: Ra 0.80u max
Eccentricity: 3% max

Delivery Conditions:

+C Hard. No final treatment after final cold drawing.
+LC Soft. Final heat treatment is followed by a suitable drawing pass (limited reduction of area).
+SR Stress Relieved. After final cold drawing, the tubes are stress relieved in a controlled atmosphere.
+A Annealed. After final cold drawing, the tubes are annealed in a controlled atmosphere.
+N Normalized. After final cold drawing, the tubes are normalized in a controlled atmosphere.

Process:

The cold drawn welded tube is produced by drawing ERW (electric resistance welded tube) through a die and over a mandrel plug. During this process the sizing (wall thickness, inside and outside diameter), as well as weld integrity and surface finish is closely controlled to produce tube of the required size and mechanical property characteristics.

Tube Finishing Options:

Our tubes can be additionally treated to achieve the exact finishes and ends needed by customers. These are some of the additional operations that can be performed on our tube:
Drawing, Heat treatment, Bulging, Swaging, Cutting, Deburring, Vibro cleaning, Threading, De-rusting, Chamfering, Washing.

Standard AND Optional Testing:

Visual and dimensional test 100%.
Eddy current test 100% acc. to EN 10246-3.
Ultrasonic test 100% acc. to EN 10246-7.
Chemical composition.
Impact test.

Mill Test Certificate:

MTC is issued in accordance with EN 10204.
