Car Wheel Repair Lathe CK6187W Cnc Wheel Lathe Cutting Machine
- QINGDAO
- T/T Credit Card
You May Like
-
Cnc Wheel Lathe Cutting Machine CK6180A Car Wheel Repair Lathe
-
China Shandong Giamite High-quality Hign Precision Alloy Wheel Lathe
-
China Shandong BMW Alloy Rim Repair Cnc Lathe/alloy Wheel Repair Equipment
-
China Shandong Cnc Horizontal Lathe Machine CK6180W Alloy Wheel
-
China Wheel Lathe
-
China Haishu Alloy Steel Wheel Cnc Lathe Ck6187W With Low Price
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 870mm | Place of Origin | Shandong, China | |
| Brand Name | HAISHU | Model Number | CK6187W | |
| Voltage | 380v | Power(W) | 11KW | |
| Dimension(L*W*H) | 2650X1750X2050(mm) | Weight | 3500KG | |
| Certification | ISO9001:2008,CE | After-sales Service Provided | Overseas third-party support available |
Product Description

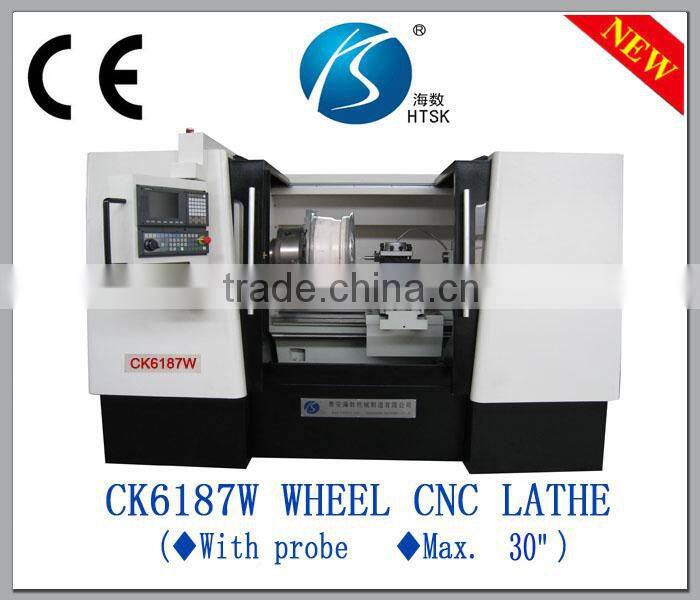

CK6187W Wheel CNC lathe machine for High-precision turning and repair processing for surface of car wheel
1.Technical parameters
Project name | Unit | Technical paramaters |
Max. turning diameter over the bed | Inch | 34”(φ870mm) |
Machining diameter of the wheel | Inch | Manual chuck 5"~24" 16"~30”(Optional) Automatic chuck(Optional) 16"~26" |
Max. machining length of the workpiece | mm | 750 |
Max. measured depth of the probe | mm | 100 |
Max. machining depth of the tool | mm | 100 |
Machning accuracy |
| IT6-IT7 |
Surface roughness | um | Ra0.8~0.1 |
Main transmission form |
| Independent spindle; frequency conversion stepless |
Range of spindle speed | rpm | 150~2000 |
Main motor power | kw | 11 |
Fast-moving feed | mm/min | X - axis:5000 Z - axis:8000 |
Repeat positioning accuracy | mm | X - axis:0.01 Z - axis:0.015 |
Standard accessories |

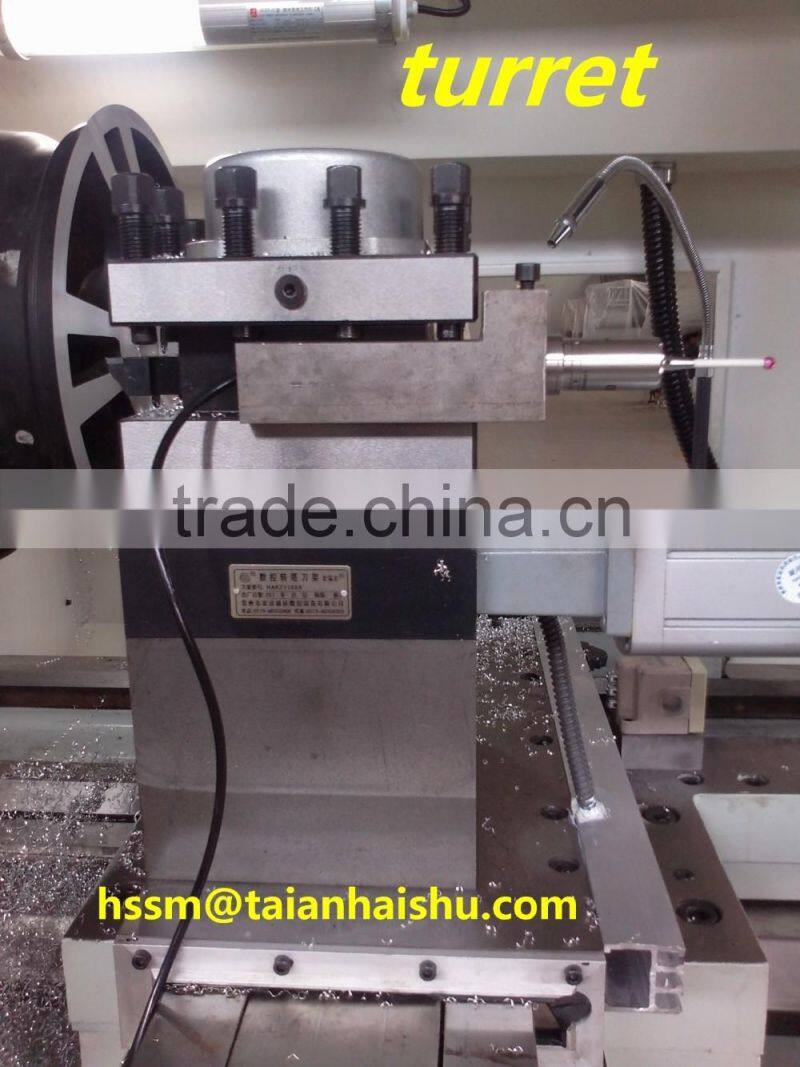

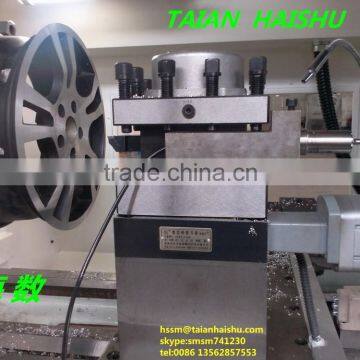

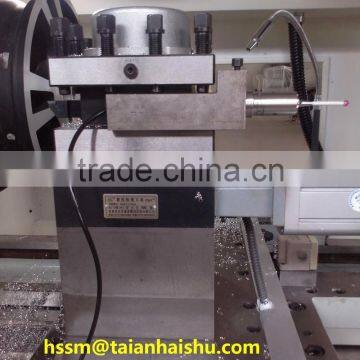

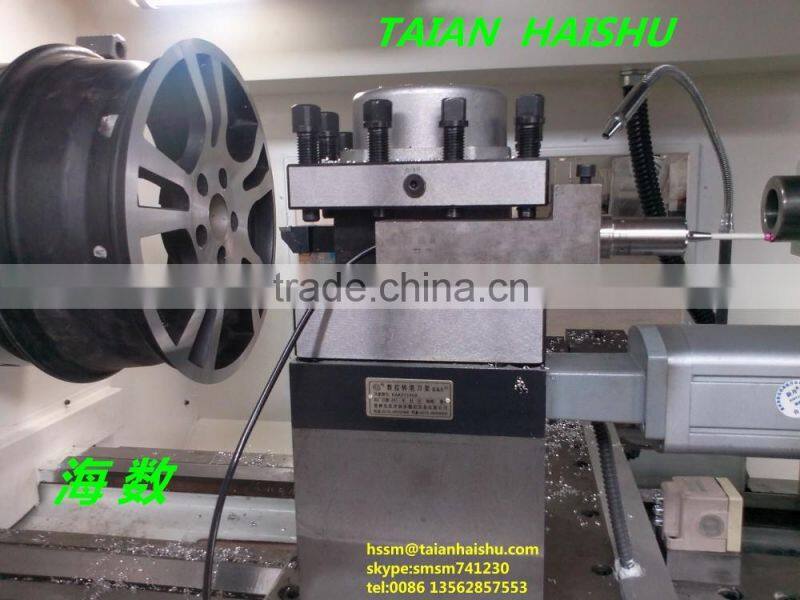

| 4 station electric tool |
Repeat positioning accuracy(mm) | mm | 0.008 |
Section of turning tool(mm) | mm | 25×25 |
The size of the machine (L×W×H) | mm
| 2680×1820×2050 |
Net weight of the machine(kg) | 3600 | |
2. Main features
1.Achieve the wheel surface profile measurement and data collection and Program Optimization,
2.Automatic precision repair and machining in accordance with the curve of the wheel surface
3.Spindle frequency stepless speed;
4.X / Z axis servo drive;
5.Manual jaw self-centering chuck;
6.Machine guard full protection;
7.Automatic oil lubrication.
3. Uses
1.The machine tool suitable for High-precision turning and repair processing for surface of car wheel.
2.The machine tool has also the function of the general CNC lathes .
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine .
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.
our wheel repair lathe is very mature product, and a series of products, including CK6166A, CK6180A, CK6180W, CK6187W, CK6190W, to meet the different requirements of different customers, If you are interested in
car wheel repair lathe CK6187W cnc wheel lathe cutting machine,welcome to leave a message or send the inquiry to understand the details of machine.

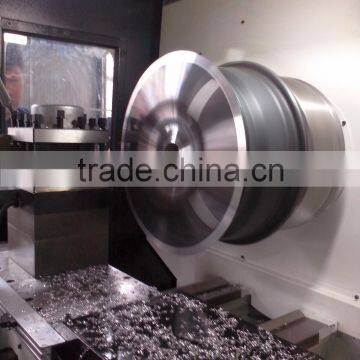

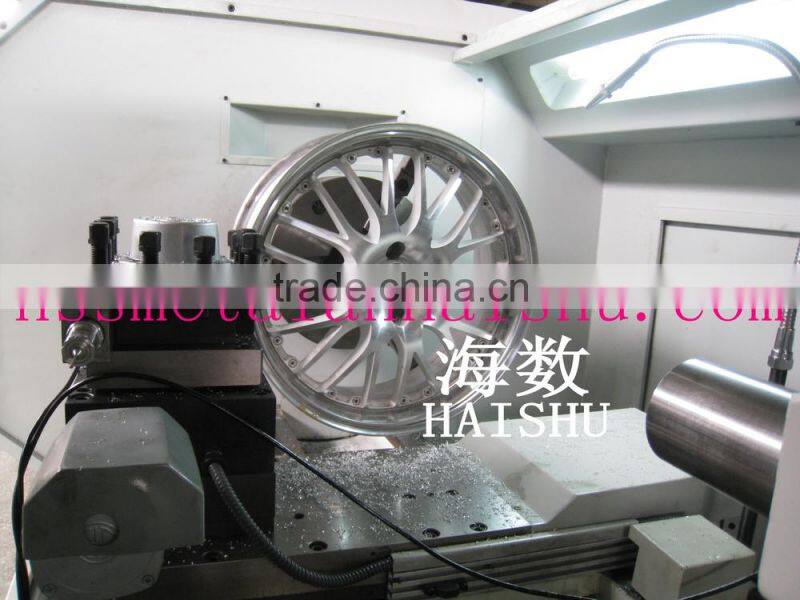

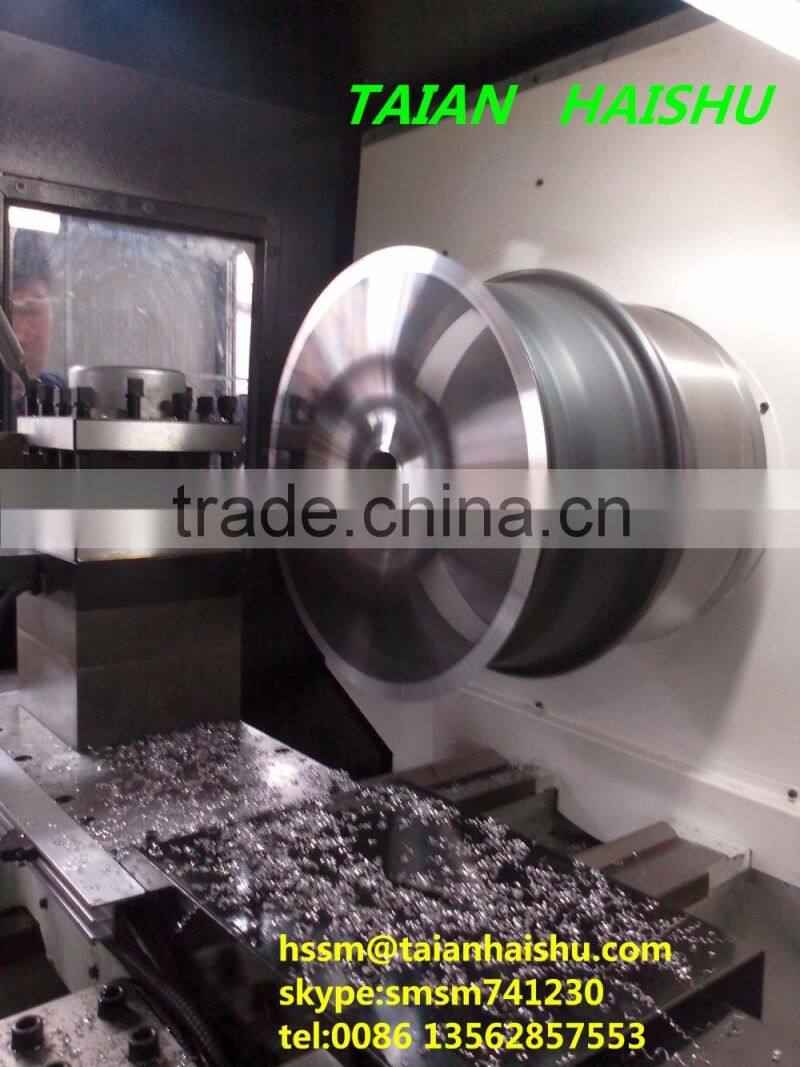

Wheel wire drawing effect
Customer case
