light duty factory steel pipe storage rack for clothing manufacturer

                                     Reason 1: Good services, free design
                                     Reason 2: High quality Q235 cold rolled steel, smooth surface without burrs,  plastic powders never fade
                                     Reason 3: Double layer design to enhance shelf load capacity
                                     Reason 4: Environment-friendly plastic powder, no poison, no pollution
                                     Reason 5: Butterfly holes design,beam plugged in , easy to install.
                                     Reason 6: Foot protection increased surface friction, more stable.

Quick Detail:

    1. Cold rolled steel
    2. Finish: galvanized with spray paint
    3. Anti-rust , Corrosion-protection
    4. Available for hand works or with ladder helpfulness
    5. Easy to assemble or dispatch
    6. 3 years warranty

Description:

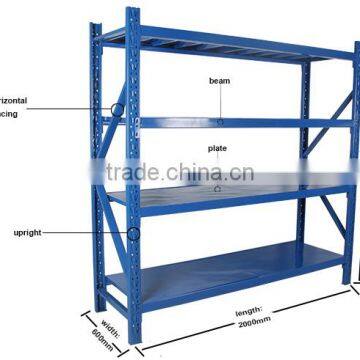

    Medium duty shelf rack, comes with upright set, beam, steel plate or wood plate, loading capacity from 150kg to 600kg per layer, maximum height 4m normally, handwork as common option or with ladder works;
It is good to warehouse storage system used. Special work for carton in different size, loose products, not heavy and flexible to take or stock.

Applications:

    Factory
    Stores
    Supermarket
    Logistic cental
    Industrial storage system
    Warehouse storage system

Specifications:

Competitive Advantage:

    Carton or loose cargo can be located, stock or move-out individually
    Installation is easy and flexible
    The distance of each layer is adjustable

Technical details:

    All of the shelf components are made of Wisco steel and raw materials processed by cold rolling of profiles, the strength index is as follows

    Racking strength indexes of cold rolled profiles(N/mm2)

 Racking strength of welds(N/mm2)

manufacturing process

    Raw materials(Wisco)→Cold rolling→Fixed length→Punching(Welding)→Rectify→Surface powder coating→Packing→Finished product

Surface treatment:

The process flow:Raw material→Unoil→Rust removal→Pre-dips→Phosphating→Drying→Powder coating→Curing→Packing

    1. Shelf surface treatment using electrostatic spray process of epoxy, powder coating 60~80 microns

    2. Electrostatic powder spraying adhesion level 0 in GB92865-88 standard requirement.

    3. Hardness(abrasion resistance) as 100 times more than ordinary lacquer, achieve GB6739 the 2 h - 86 standard requirements, namely the 2 h pencil test without scratches.

    4.Corrosion resistance (hydroelectric acid) GB1771-91 more than 500 hours.

Accurate color configuration and material requirements:

1. Column: Color RAL5010——Blue;Material Q235,Wisco.
2. Beam:Color RAL2004——Orange;Material Q235,Wisco.

Standard Export Seaworthy Packing

Knockdown packing with plastic air bubble film package, save transportation cost, safe for long distance transportation.

Loading Port

Foshan Port of China: (or any Port of China)

Guangzhou Kimsuk Shelves Co., Ltd., located in Guangzhou City of Southern China, is a professional company specializing in designing, manufacturing, selling and installing all types of displays and storage shelves.
