high loading capacity medium sized storage shelves manuafacturer

                                     Reason 1: Good services, free design
                                     Reason 2: High quality Q235 cold rolled steel, smooth surface without burrs,  plastic powders never fade
                                     Reason 3: Double layer design to enhance shelf load capacity
                                     Reason 4: Environment-friendly plastic powder, no poison, no pollution
                                     Reason 5: Butterfly holes design,beam plugged in , easy to install.
                                     Reason 6: Foot protection increased surface friction, more stable.

Quick Detail:

    1. Cold rolled steel
    2. Finish: galvanized with spray paint
    3. Anti-rust , Corrosion-protection
    4. Available for hand works or with ladder helpfulness
    5. Easy to assemble or dispatch
    6. 3 years warranty

Description:

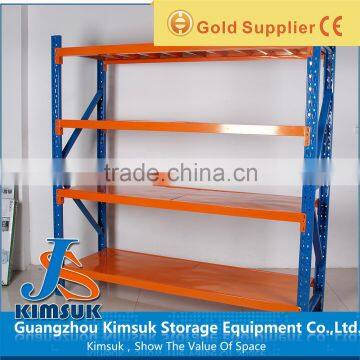

    Medium duty shelf rack, comes with upright set, beam, steel plate or wood plate, loading capacity from 150kg to 600kg per layer, maximum height 4m normally, handwork as common option or with ladder works;
It is good to warehouse storage system used. Special work for carton in different size, loose products, not heavy and flexible to take or stock.

Applications:

    Factory
    Stores
    Supermarket
    Logistic cental
    Industrial storage system
    Warehouse storage system

Specifications:

Competitive Advantage:

    Carton or loose cargo can be located, stock or move-out individually
    Installation is easy and flexible
    The distance of each layer is adjustable

Technical details:

    All of the shelf components are made of Wisco steel and raw materials processed by cold rolling of profiles, the strength index is as follows

    Racking strength indexes of cold rolled profiles(N/mm2)

 Racking strength of welds(N/mm2)

manufacturing process

    Raw materials(Wisco)→Cold rolling→Fixed length→Punching(Welding)→Rectify→Surface powder coating→Packing→Finished product

Surface treatment:

The process flow:Raw material→Unoil→Rust removal→Pre-dips→Phosphating→Drying→Powder coating→Curing→Packing

    1. Shelf surface treatment using electrostatic spray process of epoxy, powder coating 60~80 microns

    2. Electrostatic powder spraying adhesion level 0 in GB92865-88 standard requirement.

    3. Hardness(abrasion resistance) as 100 times more than ordinary lacquer, achieve GB6739 the 2 h - 86 standard requirements, namely the 2 h pencil test without scratches.

    4.Corrosion resistance (hydroelectric acid) GB1771-91 more than 500 hours.

Accurate color configuration and material requirements:

1. Column: Color RAL5010——Blue;Material Q235,Wisco.
2. Beam:Color RAL2004——Orange;Material Q235,Wisco.

Standard Export Seaworthy Packing

Knockdown packing with plastic air bubble film package, save transportation cost, safe for long distance transportation.

Loading Port

Foshan Port of China: (or any Port of China)

Guangzhou Kimsuk Shelves Co., Ltd., located in Guangzhou City of Southern China, is a professional company specializing in designing, manufacturing, selling and installing all types of displays and storage shelves.

1. Q: Are you a factory or trading company?

A:We are a manufactory

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Guangzhou City, Guangdong Province, China, You can fly to Guangzhou airport directly. We will pick you up on Guangzhou international airport All our clients, from home or abroad, are warmly welcome to visit us!

3. Q: What makes you different with others?

A: 1) Our Excellent Service
For a quick, no hassle quote just send email to us
We promise to reply with a price within 24 hours - sometimes even within the hour.
If you need an advice, just call our export office at 0086-13699703517, we will answer your questions immediately.
2)Our quick manufacturing time
For Normal orders, we will promise to produce within 15 days.
As a manufactory, we can essure the delivery time according to the formal contract.
3)Our Special Export Design
We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface

damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.

4)Our Warranty Time

The High Standards in the Design and Manufacturing ensure us to support the products with a 10-Year Warranty Time for
your normal use, it is the Longest Manufacturer's Warranty !

4. Q: What is delivery times?

A: This depends on the product. Typically standard products are delivered within 20 days.
The delivery time of the special products is according to the time of setting up of the tooling.

5. Q: What is the term of payment?

A: 1) T/T payment.
2) LC

6. Q: May I know the status of my order?
A: Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.

7. Q: Are samples available?
A: Yes, we can send some sections of samples for your reference by express.

Just leave us an inquiry in the message box below. We will offer you best price with best quality and service.
