2015 Novo Modelo Centro de Torneamento
- Qingdao
- T/T D/P D/A Credit Card
You May Like
-
CNC450 (T) CNC Turning Center for Processing Complex Parts of Machinery
-
CNC450 (T) Turning Center With Protective Door
-
CNC450 (T) Newly-improved CNC Turning CenteMax.workpiece Length: 750/1000/1500
-
HAISHU Newly-improved CNC Turning CenteMax.workpiece Length: 750/1000/1500 mm
-
CNC LATHE TURRENT LATHE
-
CNC TURNING CENTER/turrent Lathe
Product Details
| CNC Machining or Not | CNC Machining | Type | Broaching, Drilling, Etching / Chemical Machining, Milling, Rapid Prototyping, Turning, Wire EDM | |
| Material Capabilities | Aluminum, Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Steel Alloys, Other | Micro Machining or Not | Not Micro Machining | |
| Place of Origin | Shandong, China | Model Number | CNC250T | |
| Brand Name | HAISHU |
Product Description

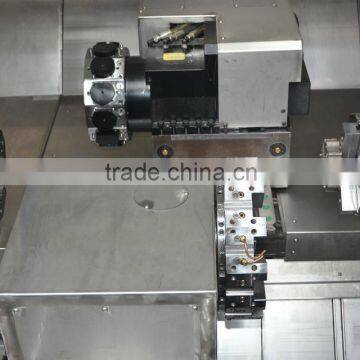

CNC250T
Max.rotation diameter on lathe’ body:250 mm
piece length: 750/1000/1500 mm
Max.turning diameter:200 mm
Spindle nose type and code A6mm
2-Hydraulic chuck: 2-φ160 (6") mm
Front spindle bore taper: 1:20
Spindle bore: 40 mm
2- Servo spindle speed range: 0-4000 mm/min
X/Z/B Rapid traverse:40000 mm/min
Cs1,Cs2 main servo motor power: 5.5kW
C-axis(Turret power axis) motor power: 3.7kw
X/Z-axis motor max.torque:10N.m
Y-axis travel(optional): +25/-25mm
B-axis(sub-spindle) motor max.torque: 15N.m
Power specifications: 380±10%. 50Hz±1Hz v
Turret transfer time (one station): 1.6(H12)s
Turret transfer repeat positioning accuracy: 0.005"mm
X1/X2-axis travel:150 mm
Z1/Z2-axis travel:1100/1350/1850 mm
B-axis (sub-spindle) travel: 1400/1650/2150:mm
2-C axis(Turret power axis) max.speed:4000 rpm
Biaxial dynamic docking concentricity: 0.004mm
Ydraulic servo turret form: 2-Horizontal 12-station servo power turret
Turret cylinder clamping force: 2350kg
Turret hydraulic power source:30 kg/cm²
Power tool holder specification: VDI30 DIN5480
Knife handle size:20*20 mm
Net weight: 4600kg
Dimensions(L×W×H):3000×1650×1900mm
