Chongqing China MH Oil Water Separator Centrifuging Machine

Brief Introduction>>>  Oil Centrifuge Separator

Centrifugal Disc Type Separator which is mainly used for purifying fuel oils from ships and overland power stations, and also for regenerating lubricating oils, can speedily separate out moistures and harmful impurities from oil liquids, thus to prolong service life of machines and to assure normal operation.

Take principles of different sedimentation velocities caused by different densities and mutual insoluble phases (light, heavy, and solids) in centrifugal force field and gravity field to achieve the purpose of layering the light, heavy, and solid phases. It is called gravity separation in gravity field, while centrifugal separation in centrifugal force field.

Characteristics>>>  Oil Centrifuge Separator

There is a set of discs inside the bowl of the disc type separator, these discs divide the bowl space into many thin layer separating room, thus to greatly shorten the distance of sedimentation, and to improve and enhance the separation results.

If any extreme dimension particles between two discs reaches internal surface of each disc, it will be separated out.

The bowl is the core part of the separator. Separation procedure of feeding materials is accomplished in the bowl. Other parts of the separator are mainly bowl body, bowl cover, disc sets, clamp rings, etc.

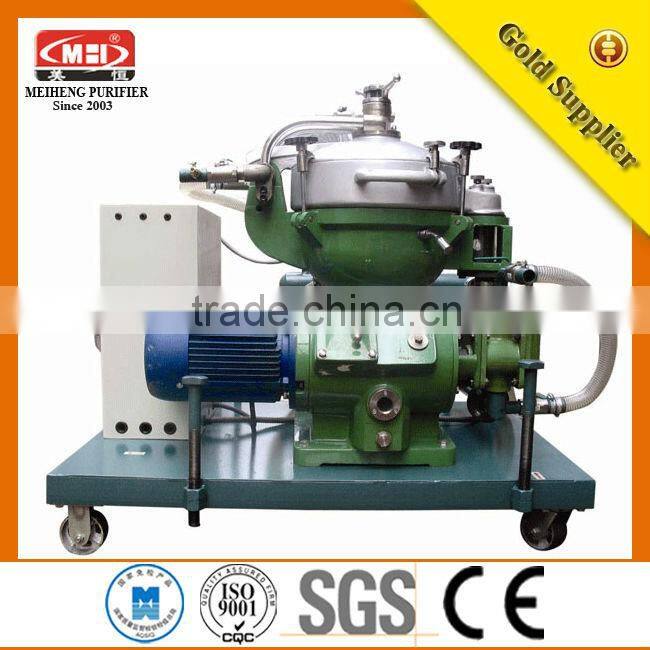

Photo Display>>>  Oil Centrifuge Separator

Relative Information

Why do we choose oil purifier?
After a period of operation, owing to its exposal to oxygen and mixed with water, copper and iron and other foreign materials and high working temperature acceleration , transformer oil will oxidize and lose its original property and cannot be used effectively again. So Wanmei oil purifiers can efficiently remove water, dirt, gases and other foreign impurities from oil, such as de-electrical oil, turbine oil, lubricating oil, engine oil, hydraulic oil, compression oil, mechanical oil, quenching oil, heat conducting oil, gear oil etc; so as to maintain its lubricating and insulating property, then to reduce components wear, and cut down oil expenses.

What Oil can we process?

we can process turbine oil, transformer oil , insulation oil, switch oil, capacitor oil, gear oil, vacuum pump oil, bunker oil. engine oil, hydraulic oil, black oil, diesel, freezer oil, compressor oil, vacuum pump oil, heat treatment oil, fire-resistant oil, machinery oil and other lubricant oils.

Meiheng Cases and Hardwork

Maintenance
A. check and adjust after oil purifier works for a period of time
   1. all the electric control apparatus
   2. temperature controller
   3. oil seals and motor couplings
   4. clean filter elements, check pumps and motors
   5. all the pipes for leaking
B. Clean the motor and change the lubricating grease
C. Check and add specified lubricating oil to vacuum pump,
D. If oil purifier is not in use for one month or more, put it on a dry, flat ground, close all valves and electric cabinet, cove the whole machine with

     canvas.

Return & Feedback
We can provide the main component for each marking machine. You can send back the unqualified spare parts to maintenance or replacement the new spare parts for your marker.

After-sales Services

One year guarantee for product quality. (People damaged parts are charged).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
