UL TUV CE Bridgelux IP65 CRI>90 PF>0.95 50w Led High Bay
- Shenzhen Hong Kong
- T/T Credit Card
You May Like
-

                        CE RoHS 85lm/w CRI>85 36w 595x595 Led Panel Light
-

                        CE RoHS 85lm/w CRI>85 600X600 36w Luxury Led Panel Light
-

                        CE RoHS SAA 100lm/w Led Light New Products on China Market
-

                        3 Years Warranty 85lm/w SMD 10W Round Led Lamp
-

                        100lm/w Epistar SMD 3528 38w 2400mm High Lumen t8 Led Tube Light
-

                        100lm/w Epistar SMD 3528 28w 1800mm t8 Led Fluorescent Tube
Product Details
| LED Light Source | LED | Warranty(Years) | 3 | |
| Input Voltage(V) | AC100~240VAC | Lamp Power(W) | 50 | |
| Lamp Luminous Flux(lm) | 4640lm | Lamp Luminous Efficiency(lm/w) | 90 | |
| Color Temperature(CCT) | Other, 50w led high bay:3000K~3500K,4000K~4500K,5500K~6500K | Working Temperature(℃) | -40, 60 | |
| Working Lifetime(Hour) | 40000 | Lamp Body Material | Aluminum Alloy | |
| IP Rating | IP65 | Certification | CE, EMC, FCC, LVD, UL | |
| Place of Origin | Guangdong, China | Brand Name | NGE or OEM | |
| Model Number | NGE-HB01-50W |
Product Description
Specifications
50w led high bayBridgelux,PF>0.95,CRI>90
Replace 150W halide lamp
Extruded Aluminum, 40,000 Hours
CE and RoHS
UL TUV CE Bridgelux IP65 CRI>90 PF>0.95 50w led high bay
Product Features of NGE 50w led high bay
- Epistar/Bridgelux COB LED,high lumen and stable quality.
- Wide radiation angle, huge lighting area.
- Start without delay and flickering free.
- UL and TUV CE approved driver,PF>0.95,efficiency>90%.
- No UV & IR, No Blinking and No Mercury & Lead free.
- Good quality aluminum or Copper Pillar radiator materials.
- Aluminum alloy and PC reflectors available,45°/ 90°/120°.
- Energy saving system, saving 60% energy than Metal halide lamp, Sodium Light.
- CE,RoHS certificate,3 years warranty.

| Product Name | 50w led high bay |
| Model No. | NGE-HB01-50W |
| Rated Power | 50W |
| Input Voltage | AC100~240VAC, 50-60 Hz |
| Beam Angle | 45° |
| Light Source | Bridgelux/Epistar COB LED |
| Dimension | D420*H568mm |
| CRI | >Ra90 |
| Color Temperature | 3000K~3500K,4000K~4500K,5500K~6500K |
| Lumens | 4640lm±5% |
| Luminous Efficiency | 80~90lm/w |
| Radiator Material | Extruded Aluminum Black/Silver Color |
| IP Rating | IP65 |
| Illuminance | 6m=360lux, 8m=204lux, 10m=130lux |
| Power Factor | 0.95 |
| Driver Efficiency | >85% |
| THD | <10% |
| Life time | >40,000 hours(>L70) |
| Warranty | 3 Years |

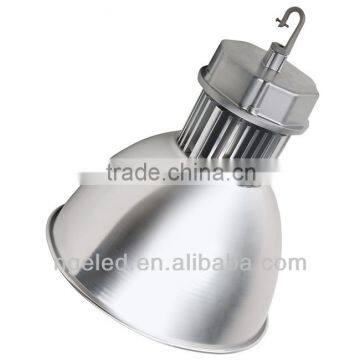

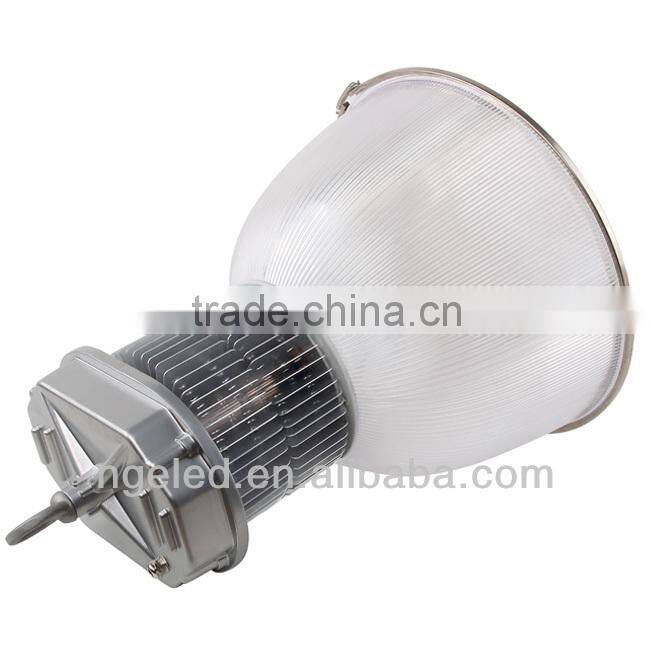

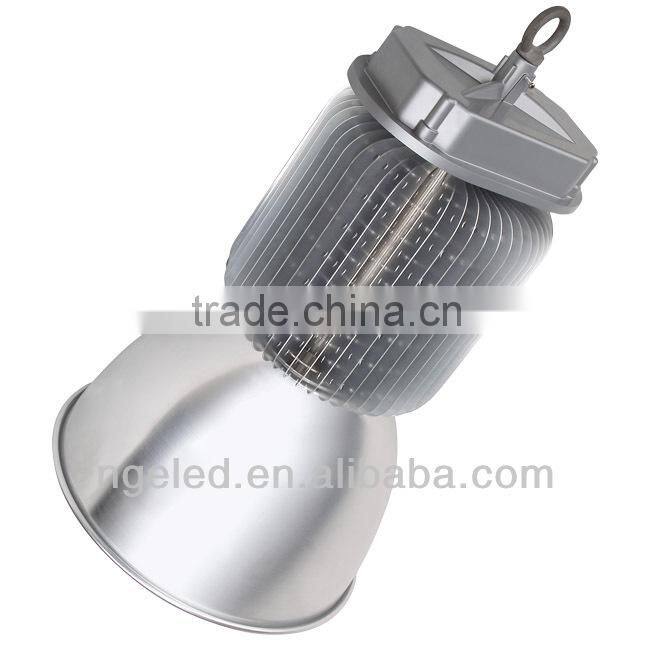

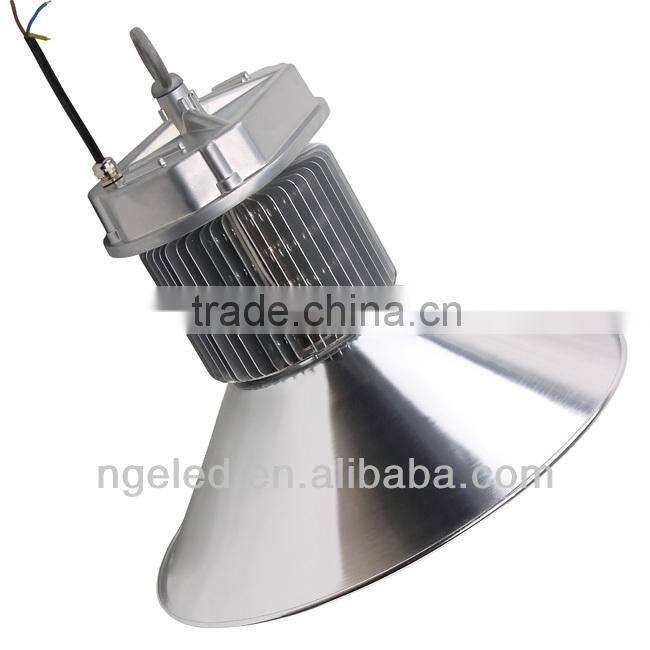

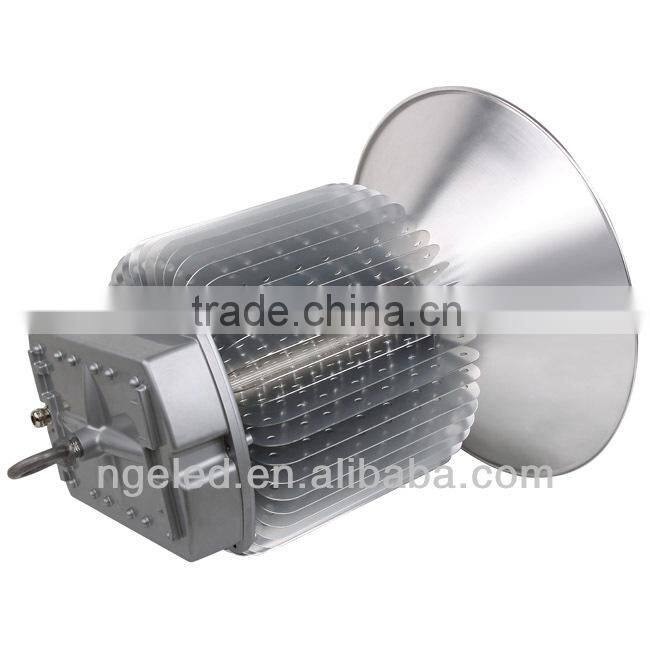

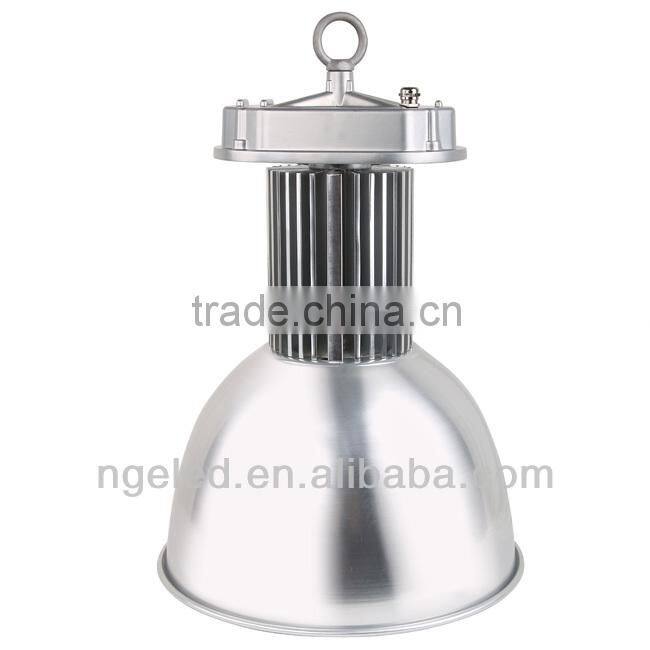

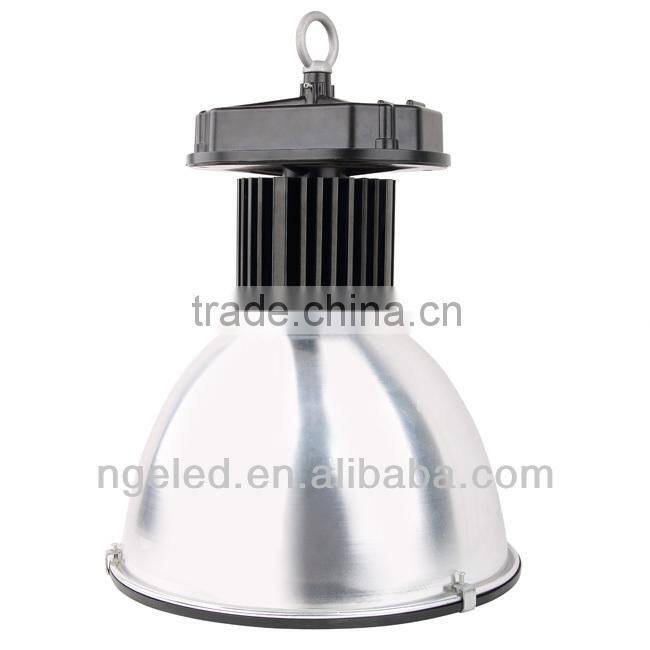

Product Pictures of NGE 50w led high bay

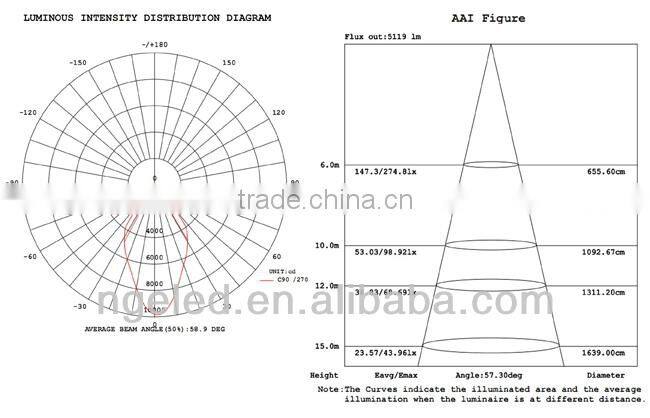

Test Report of NGE 50w led high bay

Series Products of NGE 50w led high bay
| Item No. | CRI | Input Vol | Lumens | Radiator Materials | Beam Angle | LED Brand | PF |
| NGE-HB01-30W | 90 | AC100-240V | 2880lm±5% | Extruded Aluminum | 45°/120° | Bridgelux | >0.95 |
| NGE-HB01-50W | 90 | AC100-240V | 4640lm±5% | Extruded Aluminum | 45°/120° | Bridgelux | >0.95 |
| NGE-HB01-80W | 90 | AC100-240V | 7350lm±5% | Extruded Aluminum | 45°/120° | Bridgelux | >0.95 |
| NGE-HB01-100W | 90 | AC100-240V | 8500lm±5% | Extruded Aluminum | 45°/120° | Bridgelux | >0.95 |
| NGE-HB01-120W | 90 | AC100-240V | 10150lm±5% | Extruded Aluminum | 45°/120° | Bridgelux | >0.95 |
| NGE-HB01-150W | 90 | AC100-240V | 12850lm±5% | Copper Pillar | 45°/120° | Bridgelux | >0.95 |
| NGE-HB01-180W | 90 | AC100-240V | 15450lm±5% | Copper Pillar | 45°/120° | Bridgelux | >0.95 |
| NGE-HB01-200W | 90 | AC100-240V | 17300lm±5% | Copper Pillar | 45°/120° | Bridgelux | >0.95 |
