Home > Products > Uncategorized > Creative Design T8 LED Tube 18W 1200mm 3 years warranty
Creative Design T8 LED Tube 18W 1200mm 3 years warranty
- ShenZhen HongKong
- T/T Credit Card
You May Like
-
100lm/W SMD 2835 25w 150cm led tube 8 animal tube8
-
85lm/w Ra>85 CE SMD 56w led ceiling lighting panel
-
105lm/W ce SMD 2835 25w 5ft t8 led tube
-
SAA Samsung SMD Bridgelux COB led shop light, rotatable led downlight
-
Ultra slim 9mm 85lm/w CRI>80 72w 1200X600 led panel light distributor
-
Epistar 3014 SMD 36W 600X300 panel led light fixture
Product Details
LED Light Source | Epistar 2835 | Warranty(Years) | 3 | |
Input Voltage(V) | AC170~265V | Lamp Power(W) | 18 | |
Lamp Luminous Flux(lm) | 1900 | Lamp Luminous Efficiency(lm/w) | 100 | |
Color Temperature(CCT) | Other, 3000K~3500K,4000K~4500K,5500K~6500K | Working Temperature(℃) | -30, 60 | |
Working Lifetime(Hour) | 350000 | Lamp Body Material | Aluminum Alloy | |
IP Rating | IP44 | Certification | CE, EMC, FCC, LVD | |
Place of Origin | Guangdong, China | Brand Name | NGE or OME | |
Model Number | T8 |
Product Description
Specifications
100lm/w, CRI>80Super driver, PF>0.9
One End Input, safer
Fantastic Rotatable End Cap
CE,RoHS approved, 3 Years Warranty
Creative Design T8 LED Tube 18W 1200mm 3 Years Warranty
Product Features of NGE High Brightness 2835 T8 LED Tube 18W 1200mm
1.LED:High brightness Taiwan Epistar chip, light efficiency 100lm/w,CRI>80;
2.Super driver:Conversion efficiency above 90% and power factor reach to 0.90;
3. Thermal technology:Advanced technology with first class radiator materials;
4. Modular Structure,easy assembly and disassembly,rotatable end cap available;
5.Certificate:CE approval and RoHS compliant;
6.Warranty:3 years.
Technical Parameters of NGE High Brightness 2835 T8 LED Tube 18W 1200mm
Product Name | 2835 T8 LED Tube 18W 1200mm |
Model No. | NGE-T801-120CM-T18W |
Rated Power | 17.5W±1W |
Input Voltage | AC170~265V 50~60Hz |
Light Source | Epistar 2835 LED |
Dimension | L1198*L30mm |
CRI | >Ra80 |
Color Temperature | 3000K~3500K,4000K~4500K,5500K~6500K |
Lumens | 1800lm ±100lm |
Luminous Efficiency | 100lm/w |
Equal to fluorescent | 40W fluorescent+Ballasts consumption |
Illuminance | 1m=405lux,2m=110lux,3m=46lux |
Power Factor | 0.9 |
Materials | Aluminum Shell, Clear PC Cover, Aluminum PCB |
Life expectancy | >35,000 hours(>L70) |
Warranty | 3 Years |

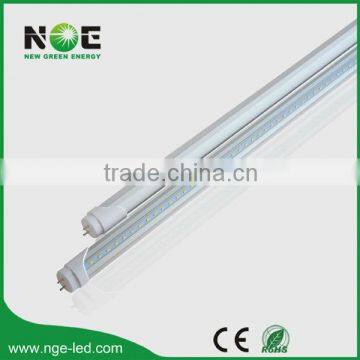

Product Pictures of NGE High Brightness 2835 T8 LED Tube 18W 1200mm
Certificates of NGE High Brightness 2835 T8 LED Tube 18W 1200mm
Test Report of NGE High Brightness 2835 T8 LED Tube 18W 1200mm
Production Pictures of NGE High Brightness 2835 T8 LED Tube 18W 1200mm
Series Products Of NGE High Brightness 2835 T8 LED Tube 1200mm
Item No. | Watt | Input Vol | Lumens | Equal to traditional fluorescent tube | CRI | LED Brand | PF |
NGE-T801-60CM-T10W | 10W | AC100-240V | 1000lm±100lm | 20W | >Ra80 | Epistar 2835 | >0.90 |
NGE-T801-60CM-M10W | 10W | AC100-240V | 850lm±100lm | 20W | >Ra80 | Epistar 2835 | >0.90 |
NGE-T801-120CM-T18W | 18W | AC100-240V | 1800lm±100lm | 40W | >Ra80 | Epistar 2835 | >0.90 |
NGE-T801-120CM-M18W | 18W | AC100-240V | 1530lm±100lm | 40W | >Ra80 | Epistar 2835 | >0.90 |
NGE-T801-150CM-T25W | 25W | AC100-240V | 2500lm±5% | 58W | >Ra80 | Epistar 2835 | >0.90 |
NGE-T801-150CM-M25W | 25W | AC100-240V | 2125lm±5% | 58W | >Ra80 | Epistar 2835 | >0.90 |
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting,office Lighting,commercial lighting,LED industrial lighting and residential lighting research and manufacture. Especially,LED shop light,the LED tube,LED Panel light,LED downlight,LED high bay and LED floodlight and LED bulb products are most popular products for us.
NGE Technology owns more than 180 experienced worker,15 persons' R&D team and 8000 square workshop. It is equiped auto SMT machines, reflow-soldering machine,integrating sphere,goniophotometers machine and inspection instruments,etc.
NGE Technology endeavor to develop new LED lighting products,our expert R&D team have abundant knowledge of electronic technology,structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant,and our LED Shop light are UL,PSE,SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team.NGE products are very popular in Europe,America,Australia,Japan,Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. The turnover in 2012 is estimated to be 12 million US dollars. Let's work together to devote to the new,green and eco-friendly cause for the world.
