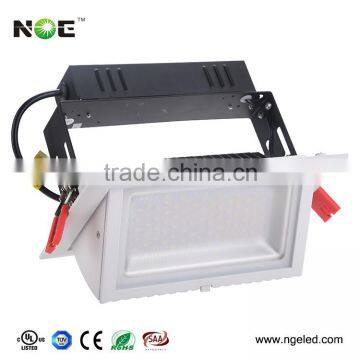

Quality 100lm/w led rectangular downlight adjsutable 28w with LiFud driver
- 20000 Piece / Pieces per Month
- Shenzhen Hong Kong
- T/T Credit Card
You May Like
-
100lm/w good qaulity rectangular downlight led 28w downlight 5 years warranty
-
100lm/w quality led rectangular downlight tuv saa lifud driver 28w 5 years guarantee
-
5 years warranty adjustable downlight 60w rectangular downlight 100lm/w
-
100lm/w cri>80 rectangular downlight 28w 5 years warranty
-
100lm/w high power 60w rectangular downlight samsung 5630
-
aluminum rectangular downlight 100lm/w led rectangular downlight 5 years warranty
Product Details
LED Light Source | Samsung smd | Warranty(Years) | Five Years | |
Input Voltage(V) | AC100-240V | Lamp Power(W) | 28 | |
Lamp Luminous Flux(lm) | 2750lm±5% | Lamp Luminous Efficiency(lm/w) | 100 | |
Color Temperature(CCT) | Other, 2700-7000K | Working Temperature(℃) | -30, 45 | |
Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
IP Rating | Other, IP20 | Certification | C-tick, CE, EMC, LVD, SAA | |
Model Number | NGE-SMD01-RD28W | Place of Origin | Guangdong, China | |
Brand Name | NGE |
Product Description
Quality 100lm/w led rectangular downlight adjsutable 28w with LiFud driver
NGE Rectangular LED downlight is the ideal replacement for the conventional HID downlight, energy-saving above 60%. Designed with advanced heat dissipation structure, used high brightness Samsung SMD LED and super constant current driver, NGE rectangular LED downlight is much better than most similar square LED downlight
Benefits
Replacement for HID 70/150W downlight
Energy saving over 50%
Environmental protection, no pollution
Significant reduction in maintenance cost
High CRI>80
Features
High lumen Samsung LED, 100lm/w for whole lighting, CRI ≥80;
Excellent driver wide input AC100V~240V, PF>0.90, low THD<15%.
Good thermal structure, compliance with the U.S.Energy Star, L70>35,000 hrs.
Humanized rotation design, 0-60 degree adjustable.
Dimmable and emergency items available.
CE,RoHS, SAA and C-Tick approved.
3 years warranty.
Product Specification
Specification for Quality 100lm/w led rectangular downlight adjsutable 28w with LiFud driver | ||
General Information | Product Type | 28w recessed adjustable led downlight |
Product Size | 240*145*135mm | |
Cutout | 227*130mm | |
Product Color | white | |
Electric parameter | Driver Brand | Lifud |
Input Voltage | AC100-240V/50-60Hz | |
Power | 28W | |
Power Factor (PF) | >0.90 | |
Optical Parameter | LED Brand | Samsung G2 5630 |
CRI | >80 | |
Color Temperature (CCT) | 2700K-7000K | |
Luminous Flux | 2750lm±5% | |
Luminous Efficiency | 100lm/w | |
Beam angle | 120° | |
Others | Lifetime | 50,000Hr |
Operating temperature | -30℃~45℃ | |
Warranty | 3 years | |
Materials | AL housing+tempered glass +AL board | |
Installation | Recessed | |
Application | shops, supermarkets.,etc |
Series Products of Quality 100lm/w led rectangular downlight adjsutable 28w with LiFud driver
Item No. | Input Voltage | Power | Luminous Flux | Luminous Efficiency | CRI | PF | Cutout |
NGE-SMD01-RD20W | AC100-240V | 20W | 1950lm±5% | 100lm/w | >80 | >0.90 | 227*130mm |
NGE-SMD01-RD28W | AC100-240V | 28W | 2750lm±5% | 100lm/w | >80 | >0.90 | 227*130mm |
NGE-SMD01-RD38W | AC100-240V | 38W | 3700lm±5% | 100lm/w | >80 | >0.90 | 227*130mm |
NGE-SMD01-RD48W | AC100-240V | 48W | 4650lm±5% | 100lm/w | >80 | >0.90 | 227*130mm |
NGE-SMD01-RD60W | AC100-240V | 60W | 5950lm±5% | 100lm/w | >80 | >0.90 | 215*125mm |
Application
• Shop
• Supermarket
• Department store
• Showroom
Item No. | Quantity/Carton | Net weight/Pcs | Gross Weight/ Carton | Carton Size | Notes |
Rectangular led downlight | 8 | 4.0kg | 18.5kg | 59*38.5*42.5mm | Each light packed by one PE bag, and use paper pulp packing in each box. |
NGE Technology Limited, established in 2009, dedicates to R&D, manufacture and sales of LED Lighting. We are specialized in commercial LED lighting and industrial LED lighting, and our main products are Gimbal LED downlight, adjustable rectangular LED downlight, LED panel light, LED high bay light and LED tri-proof light.
NGE Technology has more than 120 experienced workers, 15 persons' R&D team and more than 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere and distribution photometer, etc. With expert R&D teams of electronic technology, structure technology, thermal management as well as optics design, NGE develops new LED lighting products every year. And most of our products are UL, TUV, SAA, CE and RoHS approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, Australia, Japan, Middle East and Southeast Asia market now. We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
Welcome to inquire Quality 100lm/w led rectangular downlight adjsutable 28w with LiFud driver .
