Home > Products > Rectangular LED Downlight > Lifud driver Ra80 48w cob shoplighter rectangular
Lifud driver Ra80 48w cob shoplighter rectangular
- 20000 Piece / Pieces per Month
- Shenzhen Hong Kong
- T/T Credit Card
You May Like
-
Replace shop lighter Rectangular Led Downlight 28w
-
Bridgelux COB Ra 80 Lifud driver 28w led rectangular cob
-
Samsung SMD 5100lm 60w led square downlight fixture adjustable
-
Samsung SMD 100lm/w Ra80 20w adjustable led downlight square
-
Lifud driver Ra80 20w 28w 38w 48w 60w downlight led rectangular cob
-
TUV CE SAA approved driver 100lm/w led rectangular cob led rectangular downlight 60w
Product Details
LED Light Source | Bridgelux COB | Warranty(Years) | Three Years | |
Input Voltage(V) | AC100-240V | Lamp Power(W) | 48 | |
Lamp Luminous Flux(lm) | 4100lm±5% | Lamp Luminous Efficiency(lm/w) | 100 | |
Color Temperature(CCT) | Other, 2700-7000K | Working Temperature(℃) | -30, 45 | |
Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
IP Rating | Other, IP20 | Certification | C-tick, CE, EMC, LVD, SAA | |
Model Number | NGE-COB01-RD48W | Place of Origin | Guangdong, China | |
Brand Name | NGE |
Product Description

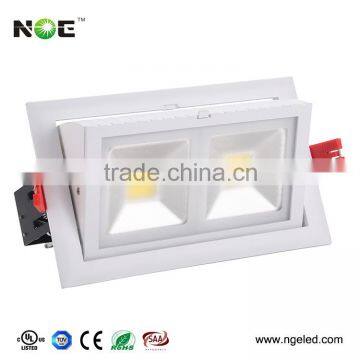

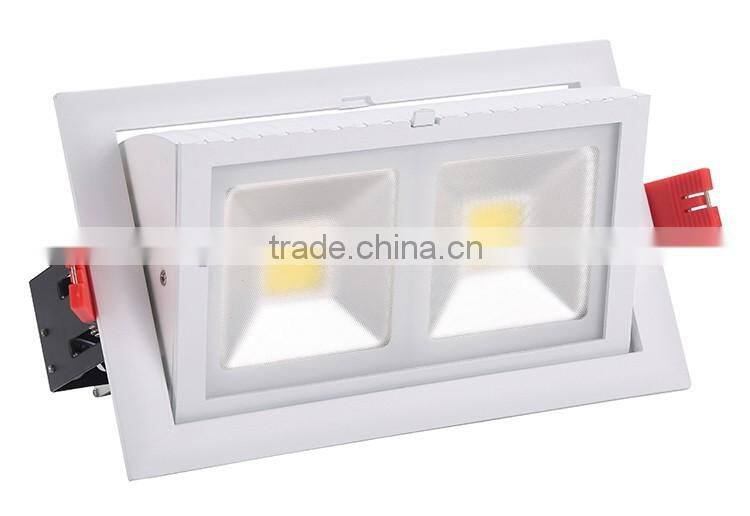

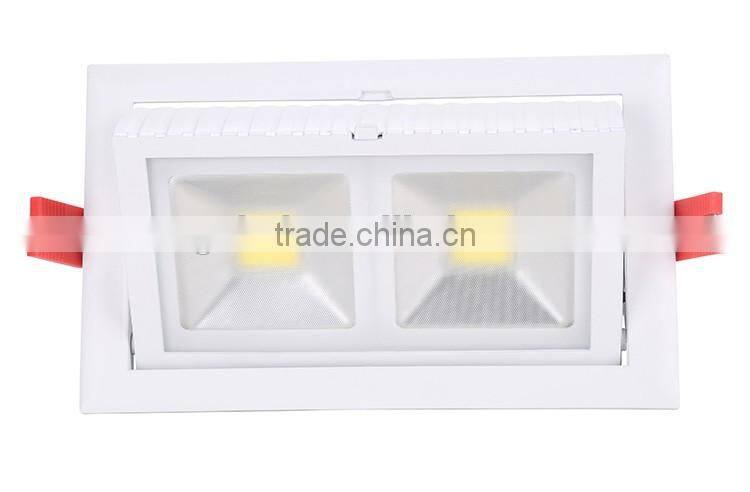

Lifud driver Ra80 48w cob shoplighter rectangular
NGE led cob shoplighter rectangular is the ideal replacement for the conventional HID rectangular downlight, energy-saving above 60%. Designed with advanced heat dissipation structure, used high brightness Bridgelux COB LED and super constant current driver, NGE led cob shoplighter rectangular is much better than most similar COB led rectangle downlight in the market.
Benefits
Replacement for HID 70/150W rectangular Downlight
Energy saving over 50%
Environmental protection, no pollution
Significant reduction in maintenance cost
High CRI>80

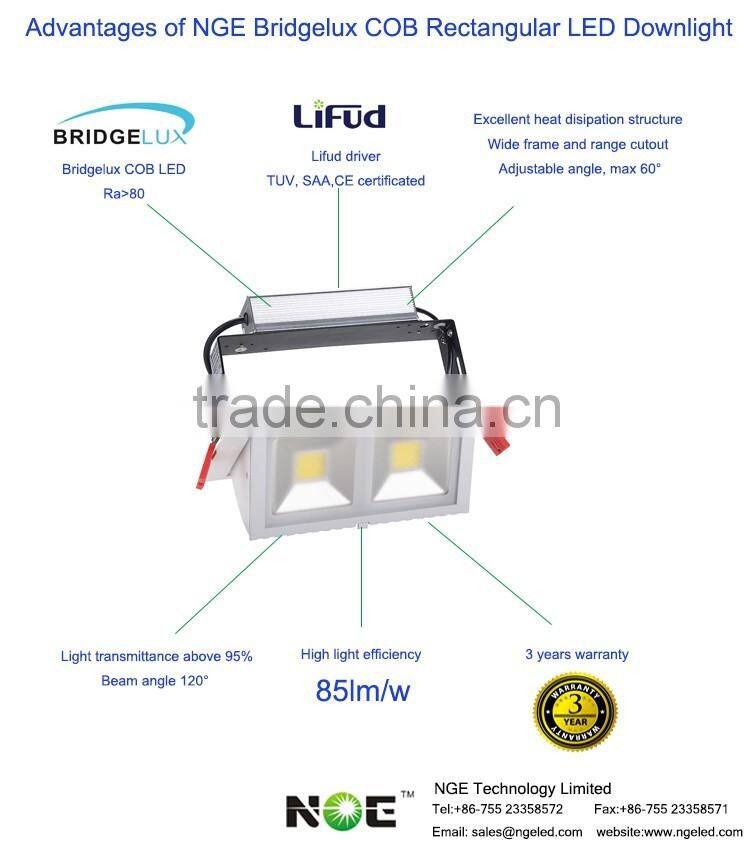

Features
High lumen Bridgelux COB LED, 85lm/w for whole lighting, CRI ≥80;
Excellent driver wide input AC100V~240V, PF>0.90, low THD<15%.
Good thermal structure, compliance with the U.S.Energy Star, L70>35,000 hrs.
Humanized rotation design, 0-60 degree adjustable.
Dimmable and emergency items available.
CE,RoHS, SAA and C-Tick approved.
3 years warranty.
Product Specification
Specification for Lifud driver Ra80 48w cob shoplighter rectangular | ||
General Information | Product Type | cob shoplighter rectangular |
Product Size | 240*145*135mm | |
Cutout | 227*130mm | |
Product Color | white | |

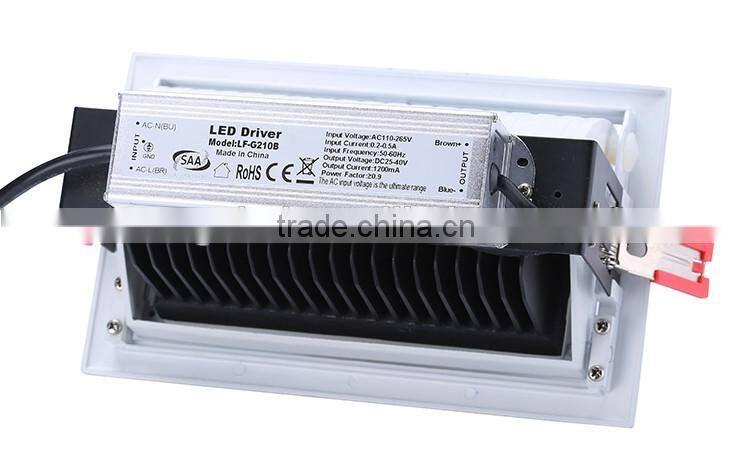

Electric parameter | Driver Brand | Lifud |
Input Voltage | AC100-240V/50-60Hz | |
Power | 48W | |
PF | >0.90 | |
Optical Parameter | LED Brand | Bridgelux COB |
CRI | >80 | |
Color Temperature (CCT) | 2700K-7000K | |
Luminous Flux | 4100lm±5% | |
Luminous Efficiency | 85lm/w | |
Beam angle | 120° | |
Others | Lifetime | 50,000Hr |
Operating temperature | -30℃~45℃ | |
Warranty | 3 years | |
Materials | AL housing+tempered glass | |
Installation | Recessed | |
Application | shops, supermarkets.,etc |
Series Products of Lifud driver Ra80 48w cob shoplighter rectangular
Item No. | Input Voltage | Power | Luminous Flux | Beam angle | CRI | PF | Cutout |
NGE-COB01-RD20W | AC100-240V | 20W | 1900lm±5% | 120° | >80 | >0.90 | 227*130mm |
NGE-COB01-RD28W | AC100-240V | 28W | 2450lm±5% | 120° | >80 | >0.90 | 227*130mm |
NGE-COB01-RD38W | AC100-240V | 38W | 3200lm±5% | 120° | >80 | >0.90 | 227*130mm |
NGE-COB01-RD48W | AC100-240V | 48W | 4100lm±5% | 120° | >80 | >0.90 | 227*130mm |
NGE-COB01-RD60W | AC100-240V | 60W | 5100lm±5% | 120° | >80 | >0.90 | 215*125mm |
Application
• Shop
• Supermarket
• Department store
• Showroom
Item No. | Quantity/Carton | Net weight/Pcs | Gross Weight/ Carton | Carton Size | Notes |
COB Rectangle LED downlight | 8 | 4.0kg | 18.5kg | 59*38.5*42.5cm | Each light packed by one PE bag, and use paper pulp packing in each box. |
NGE Technology Limited, established in 2009, dedicates to R&D, manufacture and sales of LED Lighting. We are specialized in commercial LED lighting and industrial LED lighting, and our main products are Gimbal LED downlight, LED rectangle downlight, LED panel light, LED high bay light and LED tri-proof light.
NGE Technology has more than 120 experienced workers, 15 persons' R&D team and more than 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere and distribution photometer, etc. With expert R&D teams of electronic technology, structure technology, thermal management as well as optics design, NGE develops new LED lighting products every year. And most of our products are UL, TUV, SAA, CE and RoHS approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, Australia, Japan, Middle East and Southeast Asia market now. We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
Welcome to inquire Lifud driver Ra80 48w cob shoplighter rectangular.
