Home > Products > New Product > TUV CE SAA UL 95lm/w Ra80 rotatable 20w cob led downlight
TUV CE SAA UL 95lm/w Ra80 rotatable 20w cob led downlight
- 30000 Piece / Pieces per Month
- Shenzhen Hong Kong
- T/T Credit Card
You May Like
-
TUV CE SAA UL small beam angle accent lighting led cob ceiling light
-
Accent lighting CREE & Bridgelux COB Ra80 PF>0.95 mini led ceiling light
-
CREE & Bridgelux COB accent lighting 3 inch 10w led recess downlight
-
CREE & Bridgelux COB Ra80 2.5 inch 7w led downlight
-
TUV CE SAA UL CREE & Bridgelux cob 30w led down light
-
ce high brightness 2014 85lm/w 600x600 LED panel Light
Product Details
| LED Light Source | CREE & SHARP COB | Warranty(Years) | 3 years | |
| Input Voltage(V) | AC100~277V 50~60Hz | Lamp Power(W) | 20 | |
| Lamp Luminous Flux(lm) | 1900lm±5% | Lamp Luminous Efficiency(lm/w) | 95 | |
| Color Temperature(CCT) | Other, 3000K,4000K,5000K | Working Temperature(℃) | -40, 60 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Other, Aluminum alloy and tempered glass | |
| IP Rating | Other, IP20 | Certification | CE, EMC, LVD, SAA, UL | |
| Model Number | NGE-COB01-AD20W6 | Place of Origin | Guangdong, China | |
| Brand Name | NGE or OEM |
Product Description
Specifications
20w cob led downlightCree/Sharp COB,95lm/w,CRI>80
TUV CE SAA UL driver PF>0.95
3 years warranty
CE,RoHS,SAA
TUV CE SAA UL 95lm/w Ra80 rotatable 20w cob led downlight
Product Features of TUV CE SAA UL 95lm/w Ra80 rotatable 20w cob led downlight
1. High Lumen CREE & SHARP COB LED, 95lm/w for whole lighting, CRI >80;
2. Excellent TUV, CE, SAA, UL listed driver, AC100V~277V, PF>0.95, low THD<15%.
3. Patent design with small beam angle 16°/24°/48° for adjustable spotlight.
4. Ultra-low light degradation, compliance with the U.S.Energy Star requirements,L70>35,000hrs.
5. Good thermal structure design, the fully released, lamp life last longer than 35,000hrs.
6. Dimmable and emergency version available for choice.
7. Three years warranty, CE, RoHS, SAA approved.
8. Direct replacement for traditional adjustable downlight, popular in shop, supermarket.
Technical Parameters for TUV CE SAA UL 95lm/w Ra80 rotatable 20w cob led downlight
| Product Name | 20w cob led downlight |
| Item Number | NGE-COB01-AD20W6 |
| Rated Power | 20W |
| Input Voltage | AC100~277V 50~60Hz |
| Driver | TUV, CE, SAA, UL listed |
| Power Factor | >0.95 |
| LED Type | CREE & SHARP COB |
| Luminous Flux | 1900lm±5% |
| Color Temperature | 3000K,4000K,5000K |
| CRI | Ra>80 |
| Product Size | φ195*179mm |
| Cutout | φ165mm-185mm |
| Adjustable Angle | 60° |
| Beam Angle | 16°/24°/48° |
| Main Materials | Aluminum alloy and tempered glass |
| Working Temperature | -40~60°C |
| Lifetime | L70>35,000hours |
| Warranty | 3 years |
| Certificate | CE,RoHS,SAA |
Trade Info
Trade Terms | EXW, FOB, CIF |
| Payment Terms | T/T, Paypal, West Union, L/C |
| Payment Condition | in advance for samples; 30% deposit and 70% balance paid before shipment for bulk order |
| Packing | Neutral carton |
| Delivery Time | 5-7 working days for samples; 15-20 working days for formal bulk order |
| Shipping | By sea, by air, by express |

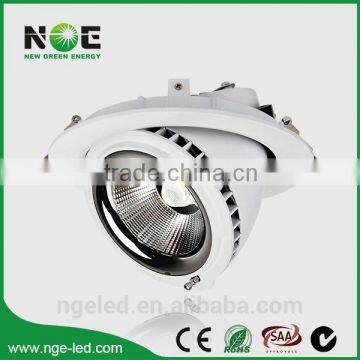

Product Pictures for TUV CE SAA UL 95lm/w Ra80 rotatable 20w cob led downlight
Production pictures for TUV CE SAA UL 95lm/w Ra80 rotatable 20w cob led downlight
Packing information for TUV CE SAA UL 95lm/w Ra80 rotatable 20w cob led downlight
Series Products for TUV CE SAA UL 95lm/w Ra80 rotatable 20w cob led downlight
| Model No. | Specification | ||||||||
| Power | Input Voltage | Color Temperature | Luminous flux | Size | Cutout | Beam angle | Power Factor | CRI | |
| NGE-COB01-AD20W6 (6inch) | 20W | AC100~277V 50~60Hz | 3000K | 1900lm±5% | φ195*179mm | φ165mm-185mm | 16°/24°/48° | >0.95 | >80 |
| 4000K | |||||||||
| 5000K | |||||||||
| NGE-COB01-AD28W6 (6 inch) | 28W | AC100~277V 50~60Hz | 3000K | 2660lm±5% | φ195*179mm | φ165mm-185mm | 16°/24°/48° | >0.95 | >80 |
| 4000K | |||||||||
| 5000K | |||||||||
| NGE-COB01-AD38W6(6 inch) | 38W | AC100~277V 50~60Hz | 3000K | 3610lm±5% | φ195*179mm | φ165mm-185mm | 16°/24°/48° | >0.95 | >80 |
| 4000K | |||||||||
| 5000K | |||||||||
| NGE-COB01-AD20W8 (8inch) | 20W | AC100~277V 50~60Hz | 3000K | 1900lm±5% | φ250*144mm | φ210mm-230mm | 16°/24°/48° | >0.95 | >80 |
| 4000K | |||||||||
| 5000K | |||||||||
| NGE-COB01-AD28W8 (8inch) | 28W | AC100~277V 50~60Hz | 3000K | 2660lm±5% | φ250*144mm | φ210mm-230mm | 16°/24°/48° | >0.95 | >80 |
| 4000K | |||||||||
| 5000K | |||||||||
| NGE-COB01-AD38W8 (8inch) | 38W | AC100~277V 50~60Hz | 3000K | 3610lm±5% | φ250*144mm | φ210mm-230mm | 16°/24°/48° | >0.95 | >80 |
| 4000K | |||||||||
| 5000K | |||||||||
| NGE-COB01-AD48W8 (8inch) | 48W | AC100~277V 50~60Hz | 3000K | 4560lm±5% | φ250*144mm | φ210mm-230mm | 16°/24°/48° | >0.95 | >80 |
| 4000K | |||||||||
| 5000K | |||||||||
Manufacturer of TUV CE SAA UL 95lm/w Ra80 rotatable 20w cob led downlight
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED Panel light, LED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.
NGE Technology has more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equiped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.
NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
Welcome to visit our website .
