Home > Products > New Product > Samsung 5630 SMD Meanwell driver IP65 80W linear LED high bay light
Samsung 5630 SMD Meanwell driver IP65 80W linear LED high bay light
- 5000 Piece / Pieces per Month
- Shenzhen Hong Kong
- T/T Credit Card
You May Like
-
TUV CE SAA UL 95lm/w Ra80 rotatable 20w cob led downlight
-
TUV CE SAA UL small beam angle accent lighting led cob ceiling light
-
Accent lighting CREE & Bridgelux COB Ra80 PF>0.95 mini led ceiling light
-
CREE & Bridgelux COB accent lighting 3 inch 10w led recess downlight
-
CREE & Bridgelux COB Ra80 2.5 inch 7w led downlight
-
TUV CE SAA UL CREE & Bridgelux cob 30w led down light
Product Details
| LED Light Source | Samsung 5630 | Warranty(Years) | 5 | |
| Input Voltage(V) | AC90-305V 50/60Hz | Lamp Power(W) | 80 | |
| Lamp Luminous Flux(lm) | 7600lm±5% | Lamp Luminous Efficiency(lm/w) | 95 | |
| Color Temperature(CCT) | Other, 3000K~3500K,4000K~4500K,5500K~6500K | Working Temperature(℃) | -40, 60 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
| IP Rating | IP65 | Certification | CE, EMC, FCC, LVD, UL | |
| Place of Origin | Guangdong, China | Brand Name | NGE | |
| Model Number | NGE-HB02-80W |
Product Description
Samsung 5630 SMD Meanwell driver IP65 80W linear LED high bay light
Product Features of Samsung 5630 SMD Meanwell driver IP65 80W linear LED high bay light
1. LED: Samsung 5630 LED, CRI>80, light efficiency 95lm/w;
2. Super driver: Top quality UL, CE approved no flicking Meanwell driver and PF>0.95;
3. Excellent optical design, frosted pc cover gurantee uniform light, no shadow and glare;
4. Thermal technology: First class aluminum radiator and wide aluminum PCB;
5. Easy installation: suspending wires installation;
6. Certificate: CE approval and RoHS compliant;
7. Warranty: 5 years.
Product Name | linear LED high bay light |
Model No. | NGE-HB02-80W |
Rated Power | 80W |
Input Voltage | AC90-305V , 50-60 Hz |
Dimension | 600*150*74mm |
Light Source | Samsung 5630 |
CRI | >Ra80 |
Color Temperature | 2700k-3200k,4000K~5000K,5500K~6500K |
Lumens | 7600lm±5% |
Luminous Efficiency | 95lm/w |
Materials | AL housing+PC cover+AL board |
IP Rating | IP65 |
Driver | CE, UL approved Meanwell driver |
Power Factor | 0.95 |
Driver Efficiency | >90% |
Life time | >35,000 hours(>L70) |
Warranty | 5 Years |
Certificate | CE, RoHS |

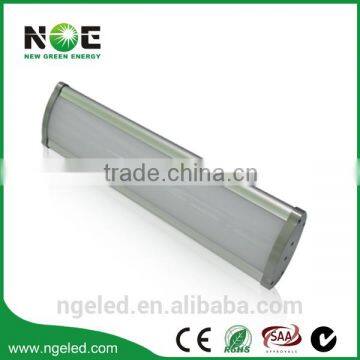

Product Pictures of Samsung 5630 SMD Meanwell driver IP65 80W linear LED high bay light
Series Products of Samsung 5630 SMD Meanwell driver IP65 80W linear LED high bay light
| Part No. | Specification | ||||||||
| Rated Power | Input Voltage | Color Temperature | Luminous flux | IP Rating | Dimension | Materials | Power Factor | Equal to traditional high bay light | |
| NGE-HB02-80W | 80W | AC90-305V 50/60Hz | 2700k-3200k | 7600lm±5% | IP65 | 600*150*74mm | AL housing+PC cover+AL board | >0.95 | 160W |
| 4000k-5000k | |||||||||
| 5500k-6500k | |||||||||
| NGE-HB02-120W | 120W | AC90-305V 50/60Hz | 2700k-3200k | 11400lm±5% | IP65 | 900*150*74mm | AL housing+PC cover+AL board | >0.95 | 250W |
| 4000k-5000k | |||||||||
| 5500k-6500k | |||||||||
| NGE-HB02-150W | 150W | AC90-305V 50/60Hz | 2700k-3200k | 14250lm±5% | IP65 | 1200*150*74mm | AL housing+PC cover+AL board | >0.95 | 300W |
| 4000k-5000k | |||||||||
| 5500k-6500k | |||||||||
| NGE-HB02-200W | 200W | AC90-305V 50/60Hz | 2700k-3200k | 19000lm±5% | IP65 | 1500*150*74mm | AL housing+PC cover+AL board | >0.95 | 400W |
| 4000k-5000k | |||||||||
| 5500k-6500k | |||||||||
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED Panel light, LED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.
NGE Technology owns more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equiped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.
NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
