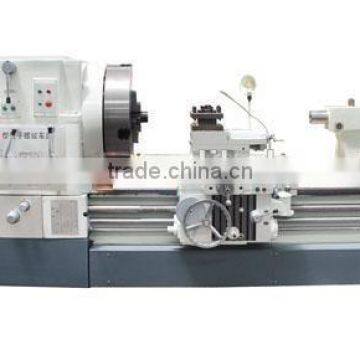

modern machine tools Q500 pipe thread lathe and threading machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Manual
Max. Swing Diameter	800mm	Place of Origin	Shandong, China
Brand Name	HAISHU	Model Number	Q500
Voltage	380V 50HZ	Power(W)	22kw
Dimension(LWH)	5000X2100X1892	Weight	10000Kg
Certification	ISO9001:2008 CE	After-sales Service Provided	Engineers available to service machinery overseas

modern machine tools Q500 pipe thread lathe and threading machine

SPECIFICATIONS

Outline size
L: 5000mm		W: 2100mm
H: 1892mm		Machine weight: 10000Kg
Max.swing diameter on the bed 800mm		Diameter of pipe 280-508
Max.outside diameter of pipe 1000-6000mm		Max. taper 1:4
Tails quill diameter 930mm
Spindle
Spindle bore 515mm		Level of spindle speed 9
Range of spindle speed 4.9-180r/min
Feed system
Vertical and horizontal feed species 32
Thus feed range
Processing metric thread number 32	Transverse 0.06-0.89mm
Inch thread processing number 31	Longitudinal0.36-5.36mm
Pitch processing metric thread 1-15mm
Inch thread processing pitch 2-30t.p.i
Saddle longitudinal moving speed 2.5m/min
The slide board box handwheel rotates a saddle longitudinal travel 1mm
Tool carrier
The knife frame maximum stroke 210mm	The surface of the knife section size 30×30mm
The cutter turntable rotation angle ±90°
The knife frame dial rotates every one stroke of knife 0.05mm
The lower sliding plate dial rotates one grid knife stroke 0.05mm
Spindle center line to the tool installation datum vertical distance 53mm
The tailstock
Top sleeve diameter 140mm	Top sleeve travel 360mm
Top sleevetaper Morse6	Tailstock lateral movement amount ±15mm
The top taper Morse6
The power part
Gear pump belt CB-B6		Rapid motor JCO2-21-23 1.5kw 2850r/MIN 380v
The main motor belt B1700		Clamping motor yxz90-l-4 1.5KW 1400r/min 380v
Gear pump CB-B6 2.5Mpa 1450r/min		The main motor y180l-4-b3 22kw 1470r/min

GUARANTEE AND AFTER-SALE SERVICES:

1.one year guarantee for whole machine except of CNC system, which guarantee is three years

2.24-hours technical support by E-mail or telephone

3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD

4.Provide extra accessories for the machine

5.Also provide service of make program according to your drawings

6.Customized or special design is OK.
