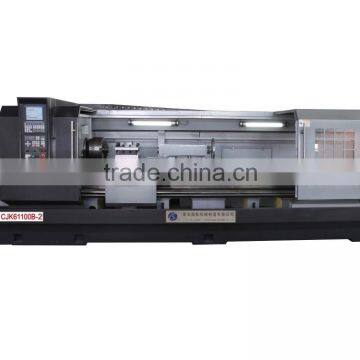

High precison and low price CJK61100B-2*2000 Pipe threadIing lathe machine
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
pipe threading machine
-
pipe threading machine /pipe threader /electric threader
-
metal engraving machine Q245 pipe thread lathe machine with High quality and best price
-
modern machine tools Q500 pipe thread lathe and threading machine
-
Q350 pipe threading lathe machine with High quality and best price from Taian Haishu
-
pipe threading lathe Q1327 pipe thread lathe and machinery metal works
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 880mm | Place of Origin | Shandong, China | |
| Brand Name | HIASHU | Model Number | CJK61100B-2*2000 | |
| Voltage | 380v 50hz 3phases | Power(W) | 15kw | |
| Dimension(L*W*H) | 3800/5300/8300*1920*1800 | Weight | 6000,8500,13500 | |
| Certification | CE , ISO9001:2008 | After-sales Service Provided | Overseas service center available |
Product Description
h precison and low price CJK61100B-2*2000 Pipe threadIing lathe machine
Technical Data
2015 , on promotion CJK61100B-2*2000 Pipe threadIing lathe
1.General Specifications
CJK61100B-2×2000 | |
Maximum workpiece swing diameter over bed
| Φ1000mm |
Maximum workpiece rotating diameter on the turret
| Φ660mm |
Max workpiece length | 2000mm |
Bed rail width and super audio quenching hardness
| 660mm HRC46-52 |
Two centers maximum workpiece bearing weight | 3000kg |
Maximum plate workpieces allowable weight | 1300kg |
:Headstock
The height from Spindle center to bed | 500mm |
Spindle hole diameter
| Φ1 130mm |
Front spindle bearing diameter
| Φ1 180mm |
Headstock length
| 850mm |
Spindle ends Code | C11 |
Front spindle taper hole diameter and taper
|
Metric system Metric system
140mm 1:20 |
Spindle speeds (mechanical third gear)
| 38-90-285r/min |
Spindle speed range (frequency stepless)
| 15-500r/min |
Chuck (manual) four - jaw chuck
| K72800 Φ800mm |
Main motor type and power
| YVP180L-6-B5 15Kw 970r/min |
3. Feeding system:
X / Z to feed to the minimum increment
X / Z to feed to the minimum increment
| 0.001/0.001 mm |
X /Z to feed range | 1~2000mm/min |
X-axis ball screw diameter and pitch
| Φ40mm×6mm |
Z ball screw diameter and pitch
| Φ1 63mm×10mm |
Servo drive motor rated torque
| X:15N.m Z:23N.m |
Repeat accuracy
| X:0.012mm Z:0.020mm |
Positioning accuracy
| X:0.030mm Z:0.045mm |
