Electric Pipe Threading Machine CKG1319E CKG(E) Series CNC Pipe Thread Lathe With Four-position Electric Turret
- QINGDAO
- T/T Credit Card
You May Like
-
Pipe Threading Machine CKG1319E Automatic Pipe Threading Machine
-
Pipe Threading Machine CKG1335 CNC Pipe Thread Lathe Machine
-
CNC Meter r Machine Tools
-
Pipe Threading Machine With Verall Dimensions(L*W*H): 1550*1000*1500mm
-
Pipe Threading Machine With Trombone Bore: 110mm
-
Pipe Threading Machine With Spindle Bore: 120mm
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 800mm | Place of Origin | Shandong, China | |
| Brand Name | HAISHU | Model Number | CKG1319E CKG | |
| Voltage | 380v | Power(W) | 15KW | |
| Dimension(L*W*H) | 3700*1800*1760(mm) | Weight | 4800KG | |
| Certification | ISO CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

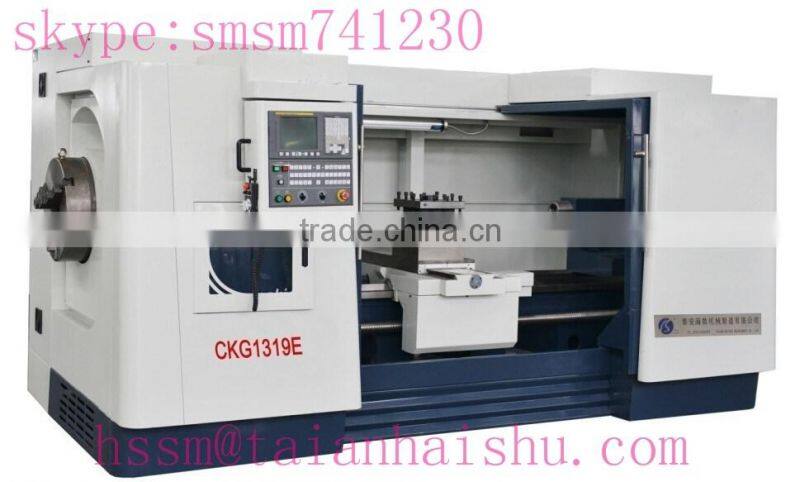

electric pipe threading machinCKG1319E CKG(E) Series CNC pipe thread lathe with four-position electric turret
Main features:
1.Overall casting bed,rail width 660mm, heavy weight, good rigidity and stability;
2.Three gears mechanical transmission, frequency stepless speed regulation.
Standard configuration
1.CNC system :GSK980 TDc,
2.The spindle three gears frequency conversion speed,
3.Front and rear three-jaw manual chuck,
4.Vertical four-position electric turret,
5.With tailstock,
6.Automatic lubrication system,
7.Turning cooling system.
Select Configure
1.CNC system :KND, Siemens, Fanuc,
2.Electric chuck, pneumatic chuck, hydraulic chuck,
3.Horizontal six-position electric turret,
4.The rear bracket.
Item |
Unit |
Specification | ||
CKG1319E | CKG1327E | CKG1335E | ||
Max. swing diameter on the bed | mm | Φ800 | Φ800 | Φ1000 |
Max. swing diameter on the sliding plate | mm | Φ480 | Φ480 | Φ650 |
Max.turning length | mm | 1500 | ||
Bed rail width | mm | 660 | ||
The main drive in the form |
| Three gears to change speed, Stepless change frepuency | ||
Range of spindle speed | r/min | 22~540 | 18~450 | 15~400 |
Max.outside diameter of pipe | mm | φ185 | φ275 | Φ350 |
Spindle bore | mm | φ190 | φ280 | Φ360 |
Main motor power
| kw | 15 | 15 | 18.5 |
Max.stroke of the turret | mm | X: 480 Z: 1520 | ||
Speed of quick travel | mm/min | X: 4000 Z: 5000 | ||
Positioning accuracy | mm | 0.032 | ||
Repeatability positioning accuracy | mm | 0.011 | ||
Turret form |
| Four-station ,Vertical | ||
Tool section size | mm | 40×40 | ||
Tailstock quill diameter | mm | Φ100 | ||
Tailstock quill stroke | mm | 300 | ||
Tailstock sleeve taper |
| MT5 | ||
Machine weight | Kg | 4800 | 5000 | 5600 |
Outline size (L × W× H) | mm | 3700×1800×1760 | 3700×1800×1760 | 3700×1880×1860 |
CNC system |
| (standard):GSK980 (optional):FANUC SIEMENS | ||
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine .
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
