sports wear heat press printing machine

sports wear heat press printing machine

sports wear heat press printing machine is special apply for garment, textile, fabric etc big size sublimation, our machine high efficiency heat transfer and large quantity production. high quality pattern transfer into objection, due to we adopt high quality heating element-aluminum alloy heating platen which thick and never deformation by high temperature and pressure. also we use SSR- solid state relay ( most factory use contact relay) which can accurately control the temperature.

Technical Parameter:

Features:
Adopt IC board, touch buttons, electromagnetic switch and ON/OFF timer, providing elegant appearance and high reliability.
Stable running,deforming free and low noise
Automatic control,even and stable pressure (pressure up to 8KG/CM2)
Two optional running modes for work bench manual and automatic
Dual-side pull type work bench saves labor and provides high printing speed
Using special security devices,the machine is anti-crushing, safe and rationalized
Surrounding design is adopted for special tube of heating panel,ensuring uniform heating
Specially treated working table is suitable for printing products for sublimating,heat transfer printing and gilding.
1-year warranty on heating element and other components.
CE certification.

Operation tips:
Attention: The machine must have a strong protective ground wire

1. Plug into power, turn on the power switch, indicate lighting is on.
2. Open the motor switch, adjust the pressure till 4-6 kg/cm3

3. Adjust the temperature of Digital display thermostat, when the temperature reached the setting temperature, red indicate light will off, at this time the machine could start working.
4. Setting the time as you want in time controller.
5. When the actual temperature reaching setting temperature, press the option switch where is at the bottom of electric box , the first working platen (A) is automatically up pressing the heating platen and start working, automatically time count down, when the time up, it automatically decrease to specific location, press the start switch ( the green or red one in front), at the same time, the second working platen (B) automatically enter into specific location, after that the time automatically count down working the same as A platen. So it cycling repeat working. ( attention: if working platen is not reach the specific location, the machine will not work), this machine can switch freely between manual and automatic, before large quantity production, use manual mode to small sample printing, only after confirm the quality reach you want, you can press it to automatic production.
6. The red round switch is "Emergency stop" switch, press this switch, the machine can not work, working platen reach specific location. When need re-start working, clockwise rotation the red round switch, it will automatically flick, then re-start working.
7. Before adjust time and temperature, you must turn the option switch to stop position, after that you can adjust the time and temperature.

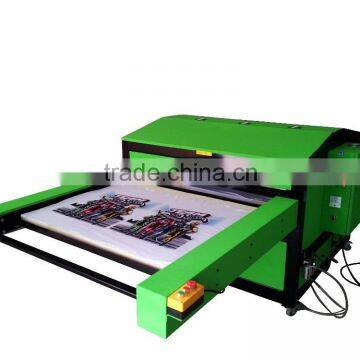

Machine photos:
