Ningbo 200W IP65 Top Quality Best-Selling COB LED Solar StreetLight 10 Years Warranty

                          200W COB LED Streetlight  Made in Ningbo

                    Top Quality, High Efficiency, IP65/IP66, IK09

with TUV-GS, CB, SAA, CE, RHOS certificate for 10 Years warranty for light head and 5 years warranty for driver

Ecobra Series

Solar power street lighting system

The system is mainly composed by five parts: LED streetlights, solar panels, solar controller, storage tattery andlamp-pole.

The battery and controller box can also be put in the middle of the pole and on the top of the pole.

We can make and provide the solution of the whole solar system according to the road condition and our clients' requirements.

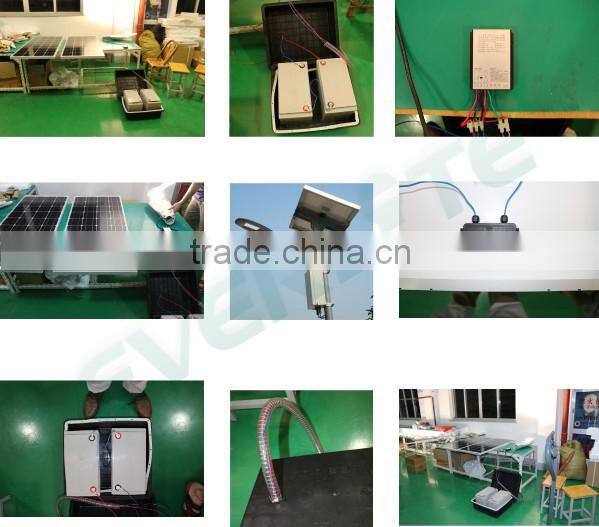

Solar System Installation

Overview

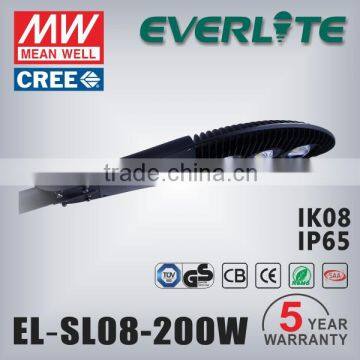

New designed streamline structure LED street light of EVERLITE, equipped with high efficient CREE COB LED source and high power factor MEAN WELL/Inventronics LED driver, have bright lighting and good heat dissapation capacibility. EL-SL08 is the best choice in energy-saving generation.
ADC 12 Die-casting aluminum body
Color Temperature: 3000-5700k
System Luminous efficacy: 105-110lm/w with CREE chips
CREE chips and MANWELL driver for 5 years warranty
Built-in Surge Protection: 4kv/6kv
Life Time: 70000 Hours
Input Voltage: 90-305V
Frequency Range: 50~60Hz
Temprature of Working Condition: -40°~+50°
Humidity of Working Condition: 10%~90%
Protection Grade: IP65/IP66

Product benefits

1.LED LUMINOUS SOURCE

American CREE high power LED luminous source, with LM-80 certificte, providing excellent lumen output and high CRI, is compatible with Bridgelux, Sharp, Nichia COB LED source as well.More information about CREE LED source, please visit .

2.LED DRIVER

Full range EVERLITE LED street lights are utilizingMEAN WELL/ INVENTRONICS high end driver, great luminous stability, long lifespan and optional performance status. More information about MEAN WELL LED driver technologies, please visit www.meanwell.com.

3.Packing and Delivery

Detailed Fectures

1. Die-casting aluminum body with anti-corrosion treatment.
2. Highly polished aluminum reflector.
3. Adjustable bracket for angle of light output
4. IP65 rated for external use.
5. Equipped with CREE LED chip, generate high luminous flux.
6. High efficient and power factor led power supply
7. Long life span over 70000 hours
8. Obstain a 50%0-70% energy saving  compared with Halogen lamps

Specification

Control System

A. Programmable time control dimmable LED driver

EVERLITE LED street lights can be installed with dimmable driver that varies voltage from 0to 10v DC and can also support intelligent communication protocol. Its features including programmable dimming control, factory setting and accurate calibration etc.

B. Light control LED street lights

Though street lamp light controller, detecting theenvironment illuminance<10lux, after 30 seconds,it automatically turn on, decting the environmentilluminance>30lux, after 30 seconds, it automaticallyturn off.

Production Process

Application

Company Overview
