Unique Ribbon-free 40W LED Solar Street Light 115lm/w With TUV-GS SAA CB

1.We really do R&D with the most talented and experience know-how engineers of LED industry.

2.We have completed equipments to produce the outdoor lights.

3.We can supply top quality LED lighting with best possible price Ratio.

4.We support our clients with our unique product and non-stop innovation.

5.We have the most flexible solutions for outdoor lighting.

6.We will always be honest to our clients, do what we can do and do it well.

Obtain Obvious Advantages, Provide Best Price, Welcome to Talk More.

   Overview

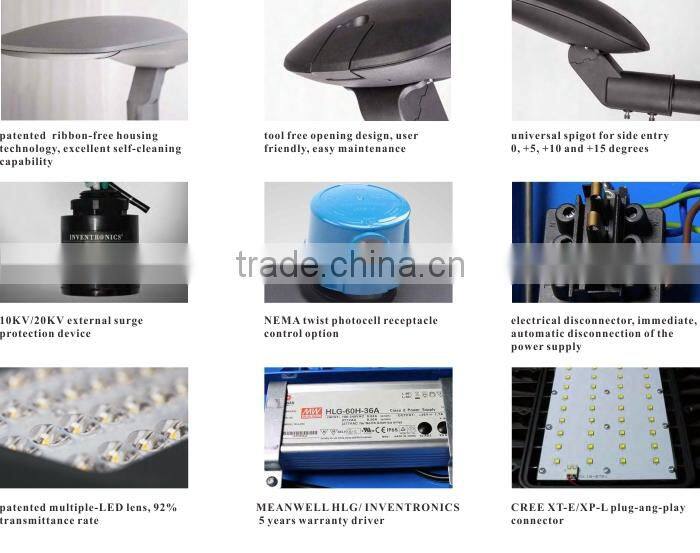

1. CREE XT-E/XP-L Plug-and-Play Connector
2. CREE/Bridgelux/Citizen/Sharp/Nichia COB chips Available
3. MEANWELL and INVENTRONICS Led Driver Available
4. Patented E-Lens G2 Angle-eyes optic, 93% Transmittance Rate
5. Patented Multiple-LED Lens, 92% Transmittance Rate
6. More than 10 different beam patterns to satisfy any kind of road requirements
7. Patented Ribbon-Free Housting Technology
8. Universal Spigot for side entry and Post top, 0,+5,+10 and +15 Degrees
9. 10kv/20kv External Surge Protection Device
10. Electrical Disconnector, Immediate, Automatic Disconnection of the Power Supply
11. Nema Twist Photocell Receptacle Control Option
12. Tool Free Opening Design, User Friendly, Easy Maintenance
13. Solar Streetlights System Available

  Specification

  Product Details

COB Mould and Multiple-led Mould

1. 1. COB: 2 size, Power range : 30w-120w
   2. Multipe: 2 size, Power range: 30w-150w
   3. ADC 12 Die-casting aluminum body
   4. Color Temperature: 3000-5700k
   5. System Luminous efficacy: 113-114lm/w with CREE chips
   6. CREE chips and MANWELL driver for 5 years warranty
   7. Built-in Surge Protection: 4kv/6kv
   8. Life Time: 70000 Hours
   9. Input Voltage: 90-305V
   10. Frequency Range: 50~60Hz
   11. Temprature of Working Condition: -40°~+50°
   12. Humidity of Working Condition: 10%~90%
   13. Protection Grade: IP65/IP66

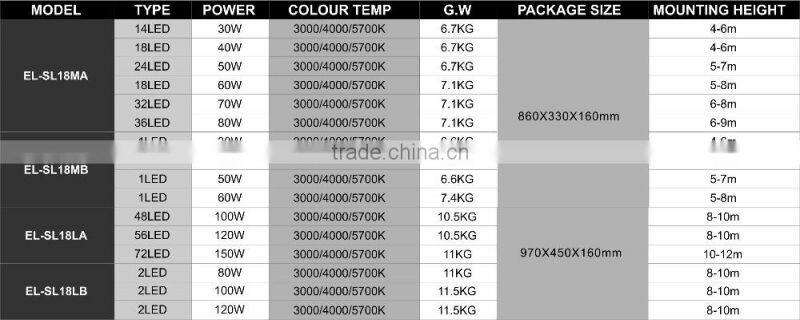

 More models of Everlite EL-SL18 series Street Light are avaliable:30-150W

Solar power street lighting system

The system is maily composed by five parts: LED street lights, solar panels, solar controller, strong battery and lamp-pole.

Intelligent Control System

The street light control system adopts PLC technology, through intelligent communication protocol, such as power line carrier and Zigbee to control every lamp, it can be widely used on street lighting system, control on-off, dimming control for specific lamp, check each lamp’s voltage, current, alarm for wire anomaly and failure, collect data and feedback system running status.

Concentrator

It communicates with each lamp through communication protocol to issue command and collect feedback data. Through Internet, WIFI to accept order from control center and feedback the nodes data.

Programmable time control dimmable LED driver

EVERLITELED street lights can be installed with dimmable driver that varies voltage from 0 to 10V DC and can also support intelligent communication protocol. Features including programmable dimming control, factory setting and accurate calibration etc.

eg: 150w LED steet light to replace the 400w HPS Lamp, ennergy-saving rate 68.75%, by dimming function, it is saving another 32%.

Light control LED street light

Through street lamp light controller, detecting the environment illuminance<10flux, after 30 seconds, it automatically turn on, detecting the environment illuminance>30lux, after 30 seconds, it automatically turn off.

Reference Table

We recommend the following configuration, according to the lamp power, temperature, sunshine radiation, continuously rainy days an every night working hours.

Solar System Installation

1. Reply your inquiry within 24 working hours.

2. Make customized products according to your requirement.

3. Finished goods in time and delivery as soon as possible all around the world.

4. Offer suitable prices based on customers required.

5. Honest and good after sales services.

6. Most professional solutions ever.

7. Non-stop updating products.

Production Process

Application

Company Overview

• Everlite LED Lighting Co., Limited, a professional manufacturer of outdoor LED street lighting, floodlighting and high bay lamps, located in Ningbo. It is consist of a completed lighting design teams, tooling and mold development shops, aluminum die-casting parts manufacturing facilities, paint finishing assembly lines, and lighting assembly lines.
• We are always keeping pace with the new development of led lighting industrial, which enable us to launch at least 3 new products per month. With the support of lighting designing engineers and lighting software , our service is far beyond than selling led lights, we help customers designing products, making tooling and testing products, planning  and designing lighting projects,etc.
• Everlite are now selling its LED street lights, floodlighting and housing mainly to North and South America, Southeast Asia, Europe, Russia, China Mainland.
• Contact Us now to experience our good products and service.

Q: Are you manufacturer or trading company.

A: We are mainly manufacturer and also we can do trading, located in Ninghai,Ningbo,Zhejiang.

Q: Main products produced?

A: Outdoor lighting: led street light, flood light, high bay light, wall lamp, garden light.

Q: Required mainly certificates?

A: TUV, GS, SAA, UL, CB, CE, RHOS.

Q: Your main export market?

A: European, Mid-East, South-East Asia, Latin America, Africa, Australia.

Q: How many years warranty provide?

A: Standard version 5 years warranty for driver and chips, 10 years warranty for lights head.

     Update Meanwell driver for 7 years warranty. Also 2-3 years warranty available.

Q: The advantages between you and others.

A: We have the most talent engineers and we are always honest to our clients, best quality conrol,

     best service and non-stop innovation.
