180W Led Highbay Lamp TUV-GS SAA CB 5 Years Warranty
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
60W Good Price ADC12 Die-Casting Solar Led Street Light 5 Years Warranty
-
Heavy Alumunium Alloy Body Top Quality 90W LED Solar Power Street Light
-
50W-70W Everlite Heavy Body Aluminum LED Street/Roadway Light Housing
-
80W-120W Everlite Hot Selling COB LED Die Cast Street Light Housing
-
20W/30W Everlite COB Outdoor LED Roadway/Street Light Housing EL-SL09
-
250W IP65 SMD LED Solar High Bay Light TUV-GS SAA CB 5 Years Warranty
Product Details
| LED Light Source | EVERLIGHT SMD2835 | Input Voltage(V) | 90-305v | |
| Lamp Power(W) | 180 | Lamp Luminous Flux(lm) | 16200 | |
| Lamp Luminous Efficiency(lm/w) | 90 | Color Temperature(CCT) | Other, 2700-6500k | |
| Working Temperature(℃) | -45, 50 | Working Lifetime(Hour) | 70000 | |
| Lamp Body Material | Aluminum Alloy | IP Rating | IP65 | |
| Certification | CE, EMC, GS, LVD, SAA, UL | Warranty(Year) | 5 | |
| Place of Origin | Zhejiang, China | Brand Name | Everlite | |
| Model Number | EL-ML |
Product Description
Aluminum Alloy Solar Powered IP 65 180w LED Highbay Light
Overview
Excellent heat radition, optical and electrical ability.
Die-cast Aluminum body with powder-coating and anti-corrosion surface treatment.
DIffuser with 4.00mm super white toughened glass.
Product benefits

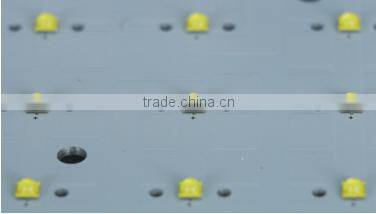

LED LUMINOUS SOURCE
American CREE high power LED luminous source, with LM-80 certificte, providing excellent lumen output and high CRI, Is compatible with Bridgelux, Sharp, Nichia LED source as well.
More information about CREE LED source, please visit .
LED DRIVER
Full range EVERLITE LED street lights are utilizing MEAN WELL/ INVENTRONICS high end driver, great luminous stability, long lifespan and optional performance status. More information about MEAN WELL LED driver technologies, please visit m
Detailed Fectures
IP65 led highbay light for your choosing!
- Die-casting aluminum body with anti-corrosion treatment.
- Highly polished aluminum reflector.
- IP65 rated for external use.
- High efficient and power factor led power supply
- Long life span over 70000 hours
- Obstain a 50%0-70% energy saving compared with Halogen lamps
Specification
Model | EL-ML-150W |
LED Brand | EVERLIGHT |
Driver Brand | MEANWELL/Inventronics |
Power Comsuption | 180W |
Input Voltage | 90v-305v AC/12-24v DC |
Power Efficiency | >90% |
Power Factor | >0.95 |
Surge Production Class | 3KV/6KV/10KV |
Lamp Rated Luminous Efficiency | 90lm/w |
Lamp Rated Lumen output | 16200lm (Lumen tolerance +/- 5%) |
Color Rendering Index | >70 |
Color Temperature | 2700-7000K |
Working Environment | Between -40℃~50℃,10%~90%RH |
Total Harmonic Distortion | <15% |
Life span | 70000hours |
Wind Index | Force 12 |
Body and Shell Materials | Aluminum Alloy |
IP Rating | IP65 |
Certification | UL,TUV,GS,SAA,CB,CE&ROHS |
Optional Function | 0-10V DC or PWM Signal or Resistance Dimming Timer/ Photocell Contral
|
Warranty | 5 years |
|
|
Packing Details |
|

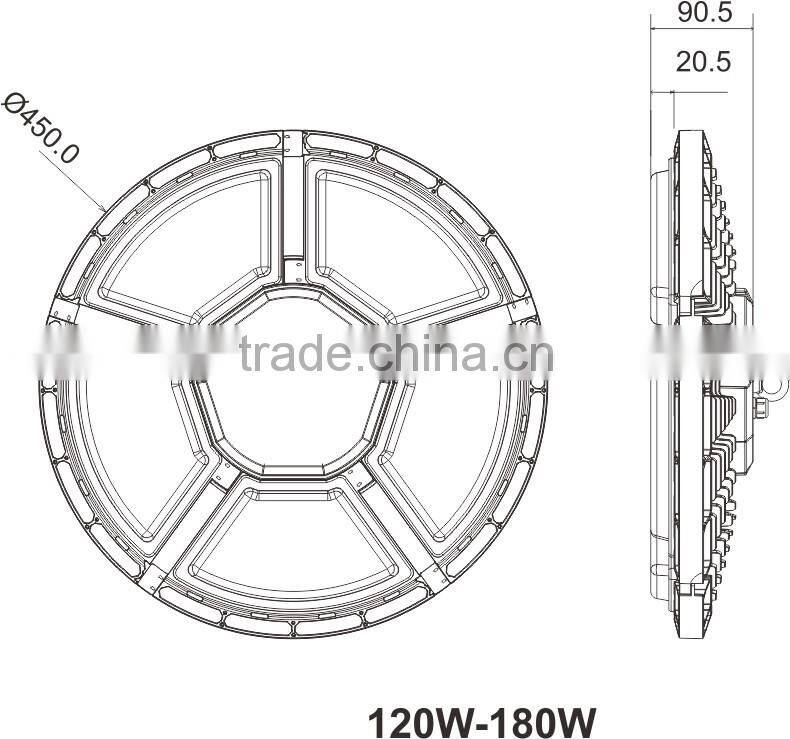

Fixture Dimension | 450x450x90.5mm |
Fixture Weight | 6.8KG |
Packing Dimension | 650x650x160 mm |
Packing Weight | 8.8KG |
Control System

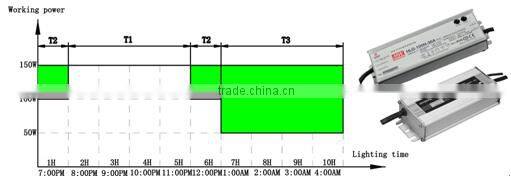

A. Programmable time control dimmable LED driver
EVERLITE LED street lights can be installed with dimmable driver that varies voltage from 0to 10v DC and can also support intelligent communication protocol. Its features including programmable dimming control, factory setting and accurate calibration etc.
B. Light control LED street lights
Though street lamp light controller, detecting theenvironment illuminance<10lux, after 30 seconds,it automatically turn on, decting the environmentilluminance>30lux, after 30 seconds, it automaticallyturn off.

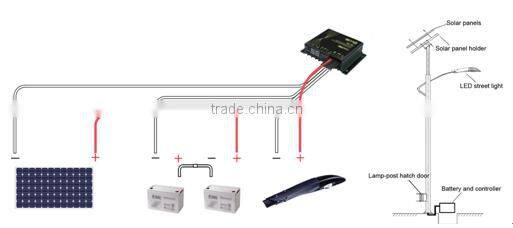

C. Solar power street lighting system
The system is mainly composed by five parts: LED streetlights, solar panels, solar controller, storage tattery andlamp-pole.
Production Process
Application
Company Overview
- Everlite LED Lighting Co., Limited, a professional manufacturer of poutdoor LED street lighting, floodlighting and high bay lamps, located in Ningbo. It is consist of a completed lighting design teams, tooling and mold development shops, aluminum die-casting parts manufacturing facilities, paint finishing assembly lines, and lighting assembly lines.
- We are always keeping pace with the new development of led lighting industrial, which enable us to launch at least 3 new products per month. With the support of lighting designing engineers and lighting software , our service is far beyond than selling led lights, we help customers designing products, making tooling and testing products, planning and designing lighting projects,etc.
- Everlite are now selling its LED street lights, floodlighting and housing mainly to North and South America, Southeast Asia, Europe, Russia, China Mainland.
- Contact Us now to experience our good products and service.
