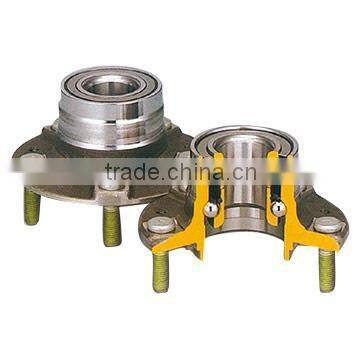

High Quality Hub Unit (513061)

FOB Price

USD $15 - $30 / Piece

500 Pieces(Min.Order)

Supply Ability 100 Piece / Pieces per Month
Port Ningbo/Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	CIE
Model Number	513061

Product Description

Specifications

hub unit:More than 200 different types of 2nd general hub units are suitable for Japanese, Korean, American and European cars.

Hub Unit Features:

1.material:

1) Chrome steel.Steel from the Fifth Factory Of Shanghai Steel Company

2) Lubrication grease from ESSO and Shell

3) Nylon of the keeping shelf from DuPont

2.quality certification:ISO9001:2000 system
3.fields used in: series of cars,such as Fiat,Renault,Citroen,Fiat,BMW,Benz,Ford,Nissan, Opel and ect.

4.service:prompt delivery,OEM available
5.Advantage:competitive prices with excellent quality

3nd generation hub units

Hub Unit	Dimension(mm)							Inner Flange
General No.	A	B	C	D	E	F	G	Hole Size	Bolt Size
General No.	A	B	C	D	E	F	G	H		I	J
100104	116.8	98	58.9	57.9	-	52	85	4XM12X1.25	-	4XΦ10X1.25	20
513017	125.4	100	58.32	57.02	73.4	44.3	98.5	-	5XM12X1.5	3XΦ12.7	33
513016K	146	115	70.63	70.15	90	41.78	116	-	5XM12X1.5	3XΦ12.7	27
513084	154	114.3	72	71.4	100	54	120.65	-	5X1/2-20UNF	3XM12X1.75	27
52730-37102	148	114.3	75.9	66.9	65.9	59	100	-	4XM12X1.5	4XM10X1.25	-
513074	139	114.3	72.8	71.2	86.8	37.7	112	-	5XM12X1.5	4XM10X1.5	26
513075	126	100	60.7	56.7	87	37.3	112	-	5XM12X1.5	4XM10X1.5	26
513011K	125.4	100	57.73	57.02	71	41.96	102	-	5XM12X1.5	3XΦ13	33
574566B	135.5	108	68	65	83.5	43	103	4XM12X1.75	-	4XM12X1.75	26
BARB243823AD	130.5	108	68	65	81	37	103	4XM14X1.5	-	4XM12X1.5	26
633293	116.8	98	58.9	57.9	-	52	85	4XM12X1.25	-	4XΦ10X1.25	-
513100	139	108	70.92	63.1	85.4	36.2	112	-	5XM12X1.5	3XM12X1.75	26
513087	145.5	115	70.61	70.1	-	42	116	-	5XM12X1.5	3XΦ14	33
513138	128	100	60.9	56.9	87	37.6	112	-	5XM12X1.5	3XM12X1.75	26
513121	145.8	115	70.6	70.1	-	41.9	116	-	5XM12X1.5	3XM12X1.75	33
513044	144.5	115	70.61	70.1	91.1	44.85	146.05	-	5XM12X1.5	4XM12X1.5	33
513089	146	114.3	73.3	71.4	91.3	42.1	116	-	5XM12X1.5	3XM12X1.75	33
513061	144.5	120.65	70.63	71.14	92	47.24	120.65	-	5XM12X1.5	3XM12X1.75	27
30BWK16	151.8	114.3	62	60	-	75	99	5XM12X1.5	-	4XΦ10.5	-
3DACF026-1	135	100	54.95	53.92	73.9	54.5	-	-	4XM10X1.25	4XM12X1.5	-
801106	139	120	79	74	90	51.1	106	5XM12X1.5	-	4XM12X1.5	-
42450-02090	135	100	54.95	53.92	73.9	54.5	93	-	4XM10X1.25	4XM12X1.5	-
42460-48010	152	114.3	62	60	74	74.5	99	-	5XM12X1.5	4XM12X1.5	-
9173872	135.6	108	67.9	65	87.5	59	112	5XM14X1.5	-	4X12X1.75	-
274298	135.6	108	67.9	65	87.5	59	112	5XM14X1.5	-	4XM12X1.75	36
89411-B2010	-	100	55	54	56	52.5	81.8	-	4XM12X1.5	4XΦ12.5	-
3DACF026-2	135	100	54.95	53.92	73.9	54.5	-	-	4XM12X1.5	4XM12X1.25	-
513124	145.5	120.65	70.62	70.14	91.9	47	120.65	-	5XM12X1.5	3XM12X1.75	27
513159	164	114.3	71.8	71.4	100	54	120.65	-	5X1/2-20UNF	3XM12X1.75	27
513123	139.3	114.3	73.25	71.32	87	37.5	112	-	5XM12X1.5	4XM10X1.5	26
513122	126	100	56.8	60.8	87	37.5	112	-	5XM12X1.5	4XM10X1.5	26
512155	126.3	100	56.84	57.34	86	48	108	-	5XM12X1.5	4XM12X1.5	-
512001	138	100	57.5	57	61	65	88.7	-	5XM12X1.5	4XΦ11	-
513137	145	115	70.1	70.6	-	37.2	116	-	5XM12X1.5	3XM12X1.75	30
513156	140.3	114.3	71.8	71.3	86	48	108	-	5XM12X1.5	4XM12X1.5	-
513157	142.8	114.3	67	57	84	40.5	-	-	4XM12X1.5	4XM12X1.25	25
513158	153.5	114.3	72	71.4	100	48.3	120.65	-	5X1/2-20UNF	3XM12X1.75	27
