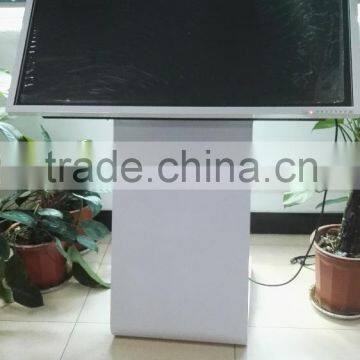

58 Inch Touch screen all in one advertising monitor

FOB Price

USD $1,170 - $1,365 / Piece

1 Piece(Min.Order)

Port Guangzhou Huang pu port or other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	All-In-One
Screen Size	Other, 58''	Processor Brand	Intel
Memory Capacity	Other, ≥ 4GB	Hard Drive Capacity	Other, 120G or 500G mechanical harddisk
Graphics Card Type	Integrated Card	Display Type	Other, LED
Widescreen	No	Optical Drive Type	Other
Processor Main Frequency	2.0/2.3/3.4GHz	Brand Name	YCZX
Model Number	YC580-JX	Place of Origin	Guangdong, China

Product Description

Model	YC580-JX
LED Screen
Screen type	LED brand-new HD A-grade screen
Screen size	58Inch
Screen ratio	16:09
Display area	1271*724mm
Pixel pitch	0.4845 x0.4845 mm
resolution	1920x1080
color	16.7M color
brightness	400cd
Contrast ratio	5000:1
Viewing angle	178°
Service Life	60000H
Touch screen
Touch type	Infrared touch 10 points
The smallest touch body	3mm*3mm
Touch resolution	32768 x 32768
Response time	6ms
Hardness	Morse level 7
Transmittance	White glass≥95%, anti-dazzle glass≥80%(optional)
Glass thickness	4mm tempered glass
Power consumption	≤1w
Operating life	≥60,000,000 times to click
Operation Systerm	WIN7/WIN8/WIN10/Android(Optional)
Power supply system	USB
PC Configuration (I5,I7 OPS is optional, and 8G is optional)
Standard	motherboard:J1900; CPU:Celeron quad core 1.99G; Memory Capacity:4G; hard drive capacity:500G (or 120G);with WIFI
Middle	Motherboard:HM76; CPU:i3-2350M 2.3G; Memory Capacity:4G; hard drive capacity:500G(or 120G).with WIFI
Senior	motherboard:H81; CPU:i3-4160; Memory Capacity:4G; hard drive capacity:500G(or 120G).with WIFI
TV
Image Engine	HD2D model
Speaker	Output Power 10W x 2
Sound	Stereo,theaters, and other effect
Language	Chinese,English;Spanish;Russian;French;Italian
Input /Output Port
Front port	USB2.03,multi-media USB1,IR touch output port1,HDMI input port1
Rear port	USB2.03,HDMI input3,coaxial1,TV input1,AV1input port1, AV2 input port1,AV output1,YPBPR1,VGA input port*1
Rear port	VGA audio output1,HDMI input port 3,earphone port1,RJ45 port1, SD card port1,USB3.01,optical output port*1
Rear PC port	HDMI output port1,USB3.0 output port2,USB2.0 output port2, VGA output1,network input/output interfaces1, 12-19V power port1,earphone output port1,MIC port1
Other Parameter
Power	AC:100~240V 60/50HZ
Operating power	90W
Standby power	≤5W
Working temperature	0℃~60℃
Storage temperature	-20℃~60℃
Storage humility	85%
Net weight	34kg
Gross weight	39kg
Shell material	Aluminum alloy frame
Display size	1271*724mm
Overall Dimensions	132577858mm
Package size	1485938218mm
Accessories	Remote control unit,instruction book,power cord , Touch Pen,wall mounting stand
Guarantee	One year Warranty

1.Q: Are you a factory?

A: Yes, we are a factory, we have our own production line. We are in Guangzhou, welcome to our factory for a visit .

2. Q: what's your products' quality control?

A: Our tenet is Quality first. We pay much attention to the beginning till the very end of the production. Our products have passed the CE & ROHS & ISO & FCC etc. certification.

3. Q: What's your after-sale service?

A: We can offer 100% guarantee on our product. If any problems, you will get our reply within 24 hours.

4. Q: What's your MOQ? A: Generally, our MOQ is 1 pcs. But the greater the quantities , the bigger the discount .

5. Q: Could you offer the OEM service? A: Yes, we can provide the OEM service if our customer requested.

6. Q: How about the delivery? A: The delivery would be with in 2-15 days according to the order quantity and size of the items.

7.Q: What are your advantages?

1.We specialize in the research, production and sales ,so our price is reasonable and our service is professional .

2. 10 users can write simultaneously on our touch monitor and IR whiteboard, with the certificates of ISO9001, CCC, CB.

3. Low defectives and timely service. The defectives of our products seldom appear , if quality problem, we give spare part or new replacement free of charge.
