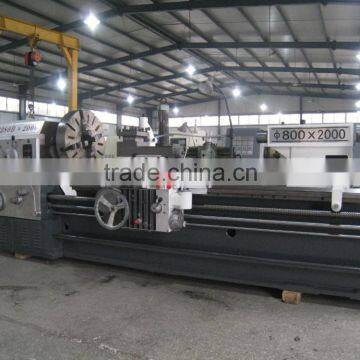

CW6180B/6280B ordinary saddle lathe machine with best price from Taian Haishu

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

high quality and low price CW6180B6280B ordinary ( saddle) lathe CE Certificate Maximum rotation diameter 800mm

CW6180B/6280B

Item	Unit	Parameters
Maximum workpiece swing diameter over bed	mm	800
Maximum workpiece length	mm	1500
Maximum workpiece swing diameter over carriage	mm	480
Turning diameter in the saddle	mm	1100
Effective with in the saddle	mm	310
Sindle head form		D11
Spindle speed progression		18
Infeed amount longitudinal feed rate		1/2
Longitudinal feed progression and scope	mm/r	64inds,0.06-24.range :0.1-1.52(1:1):1.6-24.3(16:1)
With a range of aicro feed change gears	mm/r	0.06-0.912
On turret maximum stroke	mm	200
Below turrest maximum stroke	mm	450
Taper of tailstock sleeve	kw	NI NO.5#
Tailxtock sleeve maximum stoke	mm	250
Machine screw pitch	mm	12mm(metric),1/2#(Inch)
Procesing Metric thread range and knids	mm	60knids :1-240(another 14 kinds of ono-standard thread )
Processing inch thread range and kinds	Teeth/inch	26 kinds :14-1
Module thread range and knids	mm	53knids :0.5-120
Sindle speed range	R/min	5.4-720
Processing thread pitch range and kinds	DP	24 kinds .28-1
Bed rail width	mm	600
Bed rail hardness	RC	RC52
Main motor power	kw	11
Fast motor power	kw	11
Coolant pump motorpower	kw	0.09
Machine weight	kg	4000
Overail deimension	mm	350015001630
