Home > Products > Common lathe > 2015, new product CW6132 manual lathe , mnaul lathe machine form haishu

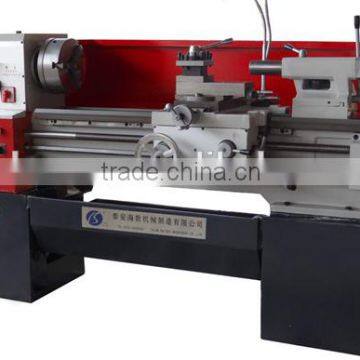

2015, new product CW6132 manual lathe , mnaul lathe machine form haishu
- Qingdao
- T/T Credit Card
You May Like
-
High quality for big workpiece CW6140/CW6140B/CW6150/CW6150B Common Lathe
-
lathe machines for sale Normal CNC or Not lathe machine parts and function
-
lathe machine parts and function/ Not cnc lathe machine
-
lathe machine parts and function/ Not cnc lathe machine /lathe machines for sale
-
2015, new product CW6132 automatic lathe manual with low price
-
2015 , low price on promotion CQ0618*300 mini bench lathe for sale
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 400mm | Place of Origin | Shandong, China | |
| Brand Name | Haishu | Model Number | CW6132 | |
| Voltage | 380v 50hz | Power(W) | 7.5KW | |
| Dimension(L*W*H) | 2100 1100 1600mm | Weight | 1300kg | |
| Certification | CE | After-sales Service Provided | Overseas third-party support available |
Product Description
Technical data
CW6132 manual lathe , mnaul lathe machine form haishu
Item | Technical data | |||
CW6132 | CW6136 | |||
Maximum turning diameter over bed
| 360mm | 400mm | ||
| 180mm | 200mm | ||
| 750 mm, 1000mm | |||
Travel on the turret
| 120mm
| |||
Transverse slide travel
| 205 mm
| |||
| 290 mm
| |||
| C-6 | |||
/
The spindle taper
| M6
| |||
Spindle bore
| Φ52 mm | |||
Spindle speed
| 12 30-1600 rpm | |||
Screw pitch / Pitch thread / modulus thread
| 6mm/160DP-3 1/2DP(30) / 0.25-10mm(25) | |||
Inch thread range / metric thread range
| 80nt/in-1 3/4nt/in(35) 0.45-20mm(30) | |||
Longitudinal feed range
| 0.039-1.1mm | |||
Infeed range
| 0.018-0.55mm | |||
Tailstock sleeve diameter
| Φ52 mm | |||
Tailstock quill stroke
| 100 mm | |||
Tailstock taper
| M4 | |||
Main motor power
| 3kw | 4kw | ||
Cooling motor power
| 0.11kw | |||
Dimensions (L × W × H)
| 2100×1100×1600mm | |||
Machine weight
| 1300kg | |||
