Home > Products > Common lathe > High Profile . 2014 Hottest CW61100 Rolling Steel Heavy Common Lathe Machine From Haishu With High Quality
High Profile . 2014 Hottest CW61100 Rolling Steel Heavy Common Lathe Machine From Haishu With High Quality
- Qingdao
- T/T Credit Card
You May Like
-
Maximum Turning Diameter Over Bed 400mm CW6140 Lathe Machine With Low Price And High Quality
-
High Quality And Low Price CW6163E Metal Lathe Machine
-
Workpiece Swing Diameter Over Bed :800 CW6280 Chinese Common Saddle Lathe With High Qaulity
-
High Quality And Low Price CW6163E Heavy Duty Lathe Machine From Haishu
-
Maximum Turning Diameter Over Bed 400mm CW6140 Common Lathe Metal Lathe With Low Price And High Quality
-
C6141 Common Lathe Light Duty Lathe From Haishu
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Manual | |
| Place of Origin | Shandong, China | Brand Name | HIASHU | |
| Model Number | CW6110 | Voltage | 380v 50hz 3phases | |
| Power(W) | 22 | Dimension(L*W*H) | 6100.2150.1700 | |
| Weight | 8000 | Certification | CE , ISO9001:2008 | |
| After-sales Service Provided | Overseas service center available |
Product Description

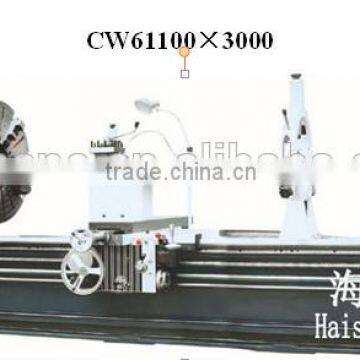

CW61100 rolling steel heavy common lathe machine
Item | Unit | Parameters |
Maximum workpiece swing diameter over bed | mm | 1000 |
Maximum workpiece length | mm | 3000 |
Turning diameter in the saddle | mm | 610 |
Spindle head form | mm | 130 |
Spindle head form | mm | 140 |
Spindle speed species( Forward) | kinds | 21 |
Spindle speed species( Reversion) | kinds | 12 |
Spindle speed range | r/min | 5.4~720 |
Forward | r/min | 3.15-315 |
Reversion | r/min | 3.5-178 |
Spindle turret feed range | kinds | 56 |
Longitudinal | mm | 0.1-12 |
Cross | mm | 0.05-6 |
Up turret | mm | 0.025-3 |
Metric thread pitch range |
| 44kinds 1-120 |
Inch thread range |
| 31kinds 24-1/4t.p.i |
Modulus thread range | mm | 45kinds 0.5-60 |
Pitch thread range |
| 38kinds 1/2-56DP |
Saddle maximum stroke | mm | Maximum workpiece length -50 |
Below turret maximum cross travel | mm | 520 |
Middle turret maximum stroke | mm |
|
Up turret maximum stroke | mm | 300 |
Fast-moving turret (Longitudinal) | mm/min | 3740 |
Fast-moving turret (cross) | mm/min | 1870 |
Middle turret | mm/min | 935 |
Tailstock sleeve diameter | mm | 160 |
Tailstock sleeve maximum stroke | mm | 300 |
Taper of tailstock sleeve | kw | MT6 |
Main motor power | kw | 22 |
Overall dimensions | mm | 6100×2150×1700 |
Machine weight | kg | 10700 |
Bed rail width | mm | 755 |
Maximum loading | kg | 8000 |
