Home > Products > carbonated beverage rinser.filler,capper 3-in-1 > Soft Drinks Filling Production Plant
Soft Drinks Filling Production Plant
- shang hai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Beverage, Food | |
| Packaging Type | Barrel, Bottles, Cans | Packaging Material | Glass, Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V/380V 50HZ | Power | 4KW | |
| Place of Origin | Jiangsu, China | Brand Name | Chun Yuan | |
| Model Number | DXGF | Dimension(L*W*H) | 2450*1900*2300mm | |
| Weight | 3500KG | Certification | CE SGS ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

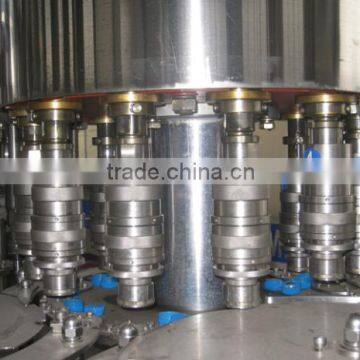

Soft Drinks Filling Production Plant
Introduction
This Soft Drink Filling Production Plant works harmoniously with air-conveyor belt, It holds the bottles by the neck, thus, reducing the possibility of bottles falling over during conveying process.
This Fully Automatic Carbonated Beverage Bottle Filling Line is used to fill carbonated drink,gas water,soft drinks into pet bottle and with screw caps capping function.
It includes water treatment system, beverage preparing system,water treatment system,3 in 1 carbonated beverage filling machine, labeling machine,date printer, and package machine etc.
1. All parts contacting with beverages adopt top grade stainless steels whose surfaces are polished till smooth for easy rinsing. The sealing materials are EPDM rubber.
2. Carbonated beverage filling line/carbonated drink machine/carbonated filling machine/carbonated beverage machinery/carbonated filling line.
3. Adopt PLC as center control, make use of pressure transmitter and electromagnetism pneumatic valve to measure liquid level, keep balance of filling pressure to insure stable liquid level.
4. Adopt new type filling valves which are especially designed for plastic bottles. The returned air and the liquid in filling tank are insulated to insure cleanliness of the filled beverages.
5. Adopt advanced magnet clutches for capping with adjustable torsional moment to insure capping safely and reliably.
Soft Drinks Filling Production Plant
Equipment Details
Machines | Function |
1.Bottle Blowing Machine | Making bottles by blowing preforms |
2.Water Treatment System | Raw water pump---sand filter--active carbon---precision filter--high pressure pump---RO—UV sterilizer--water tank |
3.Beverage Mixing System | Syrup melting tank--syrup pump—syrup blending tank—Beverage Pump—Double filter—CO2 Mixing Machine---Water Chiller& Plate exchanger—Pipes&valves |
4.Carbonated Beverage Filling Machine | Washing,Filling,Capping 3 In 1 unit |
5.Bottle Labeling Machine | Put Labels on the bottles, label type: PVC, PET. |
6.Ink Jet Printer | Printing production date in bottle |
7.Bottle Packing Machine | Group Bottles like:24=4*6 ,12=3*4 6=2*3 |
We have 12 months warranty, and lifetime maintenance. Within one year, if there is some accessory going wrong, we will send you the accessory at once, free of charge.
1). Within one month, if the machine is of any big fails, we will send you a new machine.
2). Within 12 month,if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; Both of them are free of charge.
3). After 12 months, we offer to repair the machine, but we quire for the cost of the changed parts, not for manual cost.
4). No responsibility for man-made destroy.
5). If the buyer has any questions with our technical department, we can supply on-line service Or we can send professional engineers to help you.
Q1:What kind of products you supply?
A1:Beverage filling machine for water,juice and carbonated drink;Packing system;PET bottle blowing machine;Injection molding machine.etc.
Q2:How can we get your products?
A2:Find our products through Zhang jia ang Chun Yuan Machinery Co.,Ltd in Google ,Baidu. Bing ,Yahoo, etc
Q3:How to tell us your enquiry?
A3:Contact us by email, phone call, fax, Instant Messenger (Trademanager, MSN, Skype) and let us know your inquiry.
Q4: Where is your factory?
A4: Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi. If you fly to Shanghai or Wuxi, we can pick you up to visit our factory.
Q5: Can you send engineer to our local place for installation?
A5: Yes, If you need, we will arrange engineer for you, and we can provide turn-key project.
