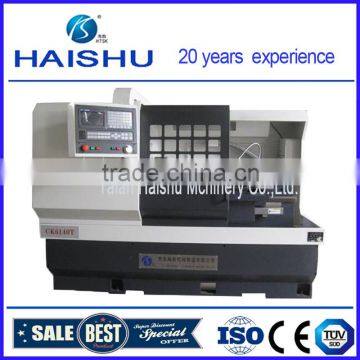

Chinese high-speed large diameter spindle CNC lathe CK6140
- 50 Set / Sets per Month
- Qing Dao
- T/T Credit Card
You May Like
-
CNC550B-1 cnc lathe slant
-
Chinese manufacturers to produce quality and reliable small CNC lathe
-
From China manufacturing high quality low price small CNC lathe
-
Micro cnc Lathe for Trainning Education small Metal cnc Lathe
-
Micro cnc Lathe for Trainning Education Metal cnc Lathe
-
Small CNC Lathe Machine Specification for Sale Low Price From China Factory CK6132
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 420mm | Place of Origin | Shandong, China | |
| Brand Name | HaiShu | Model Number | CK6140T | |
| Voltage | 220V/380V | Power(W) | 5.5KW | |
| Dimension(L*W*H) | 1550*1000*1500 | Weight | 1800kg | |
| Certification | CE ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Micro cnc Lathe for Trainning Education Metal cnc Lathe
Item | Project name | Technical paramaters |
technical specifications | Max.swiming over the bed dia. (mm) | Φ420 |
Max.swiming over pallet(mm) | Φ230 | |
Max.the workpiece length(mm) | 750 | |
Main transmission | Main transmission form | Independent spindle; frequency conversion stepless |
Number of spindle speeds | stepless | |
Range of spindle speed(r/min) | 200~2800 | |
The form of the spindle head | NO.6 A2 type | |
taper of Spindle hole | MT6 | |
Spindle bore(mm) | Φ70 | |
Chuck dia. (mm) | Φ250 | |
Main motor power(kw) | 5.5kw | |
Feed system | Turret maximum stroke(mm) | X - axis: 260 Z - axis:750 |
Fast-moving feed(mm/min) | X - axis:6000 Z - axis:8000 | |
Repeat positioning accuracy(mm) | X - axis:0.01 Z - axis:0.015 | |
Workpiece accuracy | IT6-IT7 | |
Workpiece surface roughness | Ra1.6 | |
tailstock | Dia. of tailstock quill(mm) | Φ60 |
Tailstock quill stroke(mm) | 120 | |
Taper of tailstock quill | MT4 | |
Tool post | Standard accessories | 4 station electric tool |
Opinional accessories | Horizontal 6,8-station electric turret or gang-type tool camier | |
Repeat positioning accuracy(mm) | 0.008 | |
Section of turning tool(mm) | 25*25 | |
Size and weight | The size of the machine (length*width*height)(mm) | 2400*1450*1650 |
Net weight of the machine(kg) | 2000 |
1.) big spindle bore dia (Φ70mm)
2.) big swim over the bed dia (Φ420mm)
3.) Long X-axis stroke (295mm)
4.) high spindle speed (2800rpm)
5.) wide casting at all the foot of the bed;30mm higher side to Stop water
6.) the guide rail width (340mm)
7.) Double triangle guide rail.
8.) Tailstock is double platen to strength
9.) independent spindle and frequency conversion stepless
10.) Feed of X Z axis are driven by ball screw with servo-motor or stepper motor.
11.)the guideway use hyperacoustic quenching.
12.)Hardended and ground bed guide way coated with Turcite-B
13.)high pression ball screw, High rigid precision composite bearing structure
14.)ball screw and the guide surface combination use automatic lubrication system.
- 20 years experiences in cnc lathe machine reserach and production.
- High reliability ,long lifetime to 10 years
- One year warranty for whole machine,KND and GSK CNC System is 3 years
- Professional engineer team to help you choose the suitable model and configuration.
- Friendly factory price
- Mechanical precision of our cnc lathe machine meet or exceed international standards
- 7X24 hours telephone or online technology support for free.
