Home > Products > heat exchanger gasket > food gasket for plate heat exchanger edible

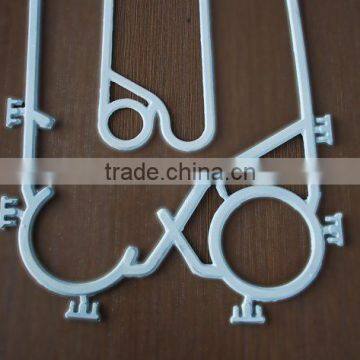

food gasket for plate heat exchanger edible
- Dalian
- T/T
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | SUCCESS, SUCCESS | |
| Model Number | M6, M6 | Type | Other, Refrigerant Liquid Receiver, Plate Heat Exchanger | |
| Application | Other, Refrigeration Parts, Food Industry | Certification | Other, ISO9001:2008 |
Product Description
Specifications
1. Fast delivery2. Over 10 years experience
3. Safe operation
4. Easy to install
5. Long functional life
GASKET
EPDM | NBR | PTFE | FKM |
-30°C+150°C | -20°C+110°C | -20°C+110°C | 0°C+180°C |
≥16 | ≥17 | ≥16 | ≥15 |
≥170 | ≥200 | ≥170 | ≥120 |
80±5 | 75±5 | 75±5 | 80±5 |
≤15 | ≤15 | ≤15 | ≤15 |
Rubber | The characteristics of the polymer |
EPDM | Good resistant against weather, organic phosphate hydraulic oil, acid base, |
NBR | Good resistant against mineral oil, plant oil, fat, alkali and alcohol. |
PTFE | Good sealing performance, good resistant against abrasion and weather, non |
FKM | Good resistant against high temperature, better anti-chemical corrosion performance than NBR. Good resistant against the oil products, chlorides solvent and aliphatic hydrocarbon, aromatic hydrocarbon as well as other strong and flammable liquid. The price is higher than other types. |
Material of plate heat exchanger
1. Plate material
Stainless steel-----clean water, river water, edible oil, and mineral oil
Titanium and titanium palladium-------sea water, salt water, salt.
Hastelloy---------sulfuric acid, hydrochloric acid, phosphoric acid
2.Gasket material
NBR (nitrile rubber)----water, sea water, mineral oil, brine
HNBR------high temperature mineral oil, high temperature water
EPDM(ethylene-propylene)--------hot water, water vapor, acids and alkalis.
HEPR-------high temperature water vapor, acids and alkalis fluid.
FKM-------strong acids and strong alkalis
3.Frame materia
Standard: plastic coated carbon steel
Special: Stainless steel covering
4.Connection material
Standard: EPR and NBR
Special: Stainless steel and titanium
5. Accessories
The insulation cover of heat exchanger can also be provided according to customer requirement.
Models
Alfa Laval Models | ||
M3 | M6 | M6B |
M6M | M10B | M10M |
M10B WFM | M15 | M15M |
M15B | M15-BFML | M20 |
M20M | M20MW | M30 |
M30MFGL | MX25 | P22 |
P26 | TS6 | TS20 |
T20-MFG | AK20 | A15B |
