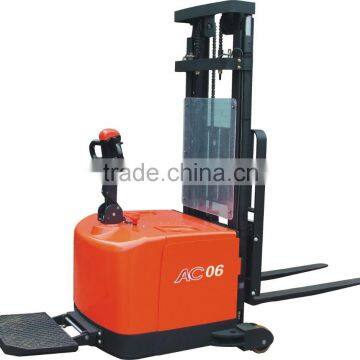

Counterbalanced Electric Pallet Stacker CDD06-970 0630

FOB Price

USD $3,000 - $10,000 / Piece

2 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	Yi-Lift	Model Number	CDD06-970 Counterbalanced stacker
Type	Powered Pallet Truck	Power Souce	AC Motor
Rated Loading Capacity	600kg	Max. Lifting Height	3000mm
Min. Lifting Height	55mm	Fork Length	1070mm
Fork Width	1070/100/40mm	Overall Dimensions	2120*10152030mm
Certification	ISO9001	After-sales Service Provided	No overseas service provided

Counterbalanced Electric Pallet Stacker CDD06-970 0630

Feature
Model		CDD06
Configuration No.		970
Type		Counterbalanced
Mast type		2-Stage STD
Load capacity	kg	600
Load center	mm	500
Wheel base	mm	794
Operating type		Walkie / Stand On
Wheels
Wheels type		PU
Wheel quantity Driving wheel/Balance wheel/Bearing wheel		1/0/2
Dimension
Standard lift height	mm	1400/2000/2500/3000/3300
Max extend height	mm	2400/3000/3500/4000/4300
Mast lowered height	mm	1230/1580/1780/2030/2130
Lowered fork height	mm	55
Fork size(length/width/thickness)	mm	1070/100/40
Overall length	mm	2120
Overall width	mm	1015
Outside width between forks	mm	200-660
Inside width between forks	mm	0-460
Min.Turning radius	mm	971
(800×1200,1200) Min.Aisle width for pallets 800×1200	mm	2346/2822
(1000×1200,1200) Min.Aisle width for pallets 1000×1200	mm	2379/2844
Min.ground clearance	mm	80
Performance
Travel speed,laden/unladen	km/h	5/5.5
Lift speed,laden/unladen	mm/s	130/230
Lowering speed,laden/unladen	mm/s	130/230
Gradeability,laden/unladen	%	5/7
Electrical configuration
Drive motor / Lift motor /Steering motor	KW	AC1.5/DC3/DC0.15
Battery voltage	V	24
Battery capacity	Ah	270
Brake		Electromagnetic / Regenerative
Controller		CURTIS
Weight
Battery weight	kg	245
Service weight with battery	kg	1770
