HX low profile lift table
- shanghai port
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Yi-Lift | |
| Model Number | HE | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Electric Motor | Power | 380V/50HZ,AC 1.1KW/380V/50HZ,AC 1.5KW | |
| Rated Loading Capacity | 1000/1500kg | Min. Lifting Height | 85mm | |
| Max. Lifting Height | 885mm | Table Size | 1450*1250 mm | |
| Weight | 1000kg |
Product Description

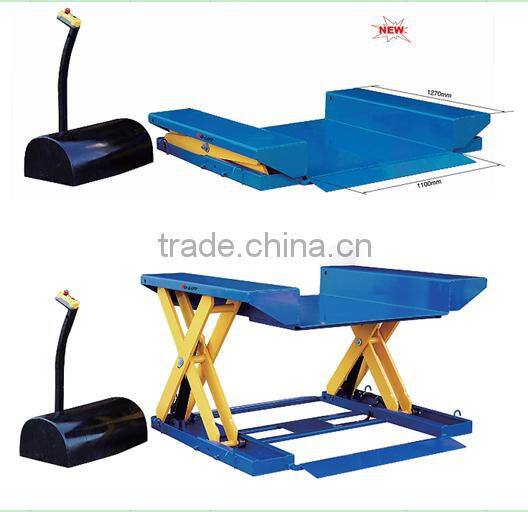

HX low profile lift table
"Scissors are beisdes the platform
The concave shape platform with super lower min height "
With explosion-proof valve HX low profile lift table
"Scissors are beisdes the platform
The concave shape platform with super lower min height "
With explosion-proof valve
They are manufactued to all European safety standards including EN1570:1999.
Remote Power pack with pedestal and controls,pretected to IP54.
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed.
Hose burst safety valve to stop the lift table lowering a case of hose breakage.
Removable lifting eyes to faciliate handling and installation of the lift table.
Oiless bushings om pivot points.
Quick assembly joint for oil hose.
| Model | capacity (Kg) | platform size(L×W)mm | min/max height mm | overall size (L×W)mm | lifting time(s) | Powerpack(V/Hz) | Net weight(kg) |
| HX500 | 500 | 1270X1100 | 25/800 | 1515X1715 | 25-30 | 380/50 | 320 |
| HX750 | 750 | 1270X1100 | 25/800 | 1515X1715 | 25-30 | 380/50 | 370 |
| HX1000 | 1000 | 1270X1100 | 35/800 | 1515X1715 | 25-30 | 380/50 | 400 |
| HX1500 | 1500 | 1270X1100 | 35/800 | 1515X1715 | 25-30 | 380/50 | 470 |
Note: Specification and materials are subject to change without notice.
