Save energy high brightness WS2811 UCS1903 12mm LED pixel light

FOB Price

US$ 0.15 - 0.2 / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	Epistar	Input Voltage(V)	DC5V
Lamp Power	0.3	Lamp Luminous Flux(lm)	100
Lamp Luminous Efficiency(lm/w)	100	Color Temperature(CCT)	Other
Working Temperature(℃)	-20, 60	Working Lifetime(Hour)	50000
Lamp Body Material	PVC	IP Rating	IP65
Certification	CE	Emitting Color	RGB
Place of Origin	Guangdong, China	Brand Name	BILIN
Model Number	BL-12-4

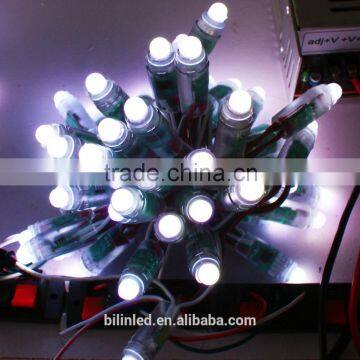

Waterproof 12mm IC UCS1903/WS2811/DMX512 RGB full color programmable led pixel module light

About Products

1. Individually control: 1PC LED pixel & 1IC

2. IC chip: ws2801, ws2811, ucs1903, sm16716, lpd6803, dmx512, etc

3. Waterproof: Yes IP66, with full silicon glue waterproof protection.

4. Installation: Easy to install, you'd better drill the hole with 12mm.

5. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.

6. Power supply: You must use a 5V DC power supply to power this pixel, do not use higher than 6V

or you can destroy the entire pixel.

7. Connetors: 3PIN or 4PIN JST female and male connectors.

each led pixel is seperate, you can connect them one by one via male and female connectors easliy.

3PIN: DAT, DC5V+, GND-

4PIN: DAT, CLK, DC5V+, GND

8. Factory sale directly, good quality and price, offer 2 years warranty and quikly after-sale service.

9. Color and effect: addressable lights you can set to any color, or animate, like running water,chasing

and scanning etc. depending on the different installation methods may compose different dynamic

effect of different color's character and design

Specification

Type	3Pin connector	4Pin connector
Product Name	12mm round pixel led module light	12mm round pixel led module light
IC Chip	ws2811,sm16716	ws2801,ucs1903,lpd6803,dmx512
Led Chip	Epistar F8mm Dot Led	Epistar F8mm Dot Led
Voltage	DC5V	DC5V
Wattage	0.3w/pcs	0.3w/pcs
Wire	DAT,CLK,DC5V+	DAT, CLK, DC5V+, GND-
Waterproof	Full silicon glue	Full silicon glue
Certification	CE,RoHS	CE,RoHS
Warranty	2 years	2 years
