Quick Details

Producer : China (mainland) Shanghai                       Material: Glass, ZnSe

Usage: Optical                                                                                        Structure: Plano-convex
Shape: Spherical                                                                                    Wavelenth: 10.6um
FL Tolerance: <±2%                                                                               Clear Aperture: more than 90%
Diameter Tolerance: +0/-0.13mm                                                         Thickness Tolerance: ±0.25mm
transmission: more than 99.5%@10.6um

Packaging & Delivery

Packaging Details: Inner packing is in protective plastic bag with tissue. Outer packing is in a carton

Delivery Detail: 5  days

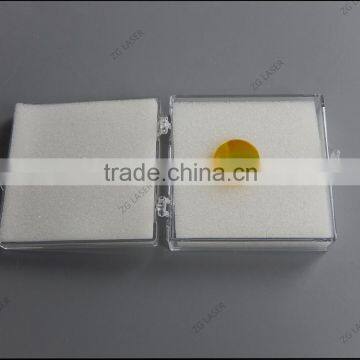

                               Laser Focus Lens 19mm FL50.8mm

       Z&G  corporation manufacturing laser focus lenses all adopt the U.S.A. imported CVD ZnSe. Imported CVDZnSe has double-sided semipermeable films, It can decrease or eliminate the reflective light from lens, prisms, etc.

Our focus lenses have advantages over than those of others, such as low material absorption rate enduring high power density, firm surface membrane and resistant to wipe. In CO2 laser industry working band 10.6 um, our lenses are commonly used through rate of 99.8%.

Specifications

Diameter Tolerance +0/-0.13mm
Thickness Tolerance ±0.25mm
FL Tolerance <±2%
Centration <3 arc minutes
Clear Aperture >90%
Surface Figure <λ/2 per 1”Dia at 632.8nm
Surface Quality 40-20 scratch and dig
AR/AR coating R<0.5% per surface at 10.6um or 9.4um
