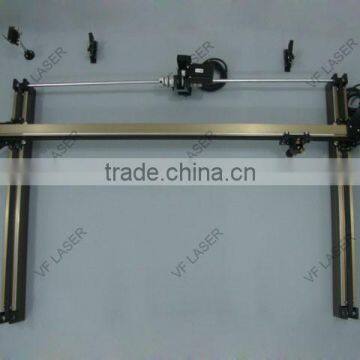

WeiFa 500*700 Double Head XY Stages complete kit for DIY CO2 Laser Machine Linear Guide

Professional WeiFa 5070 linear guide  X-Y Stages complete kit comes with: single/double/ three/ four/ five  laser head, mounts, and reduction gear for building a CO2 laser machine. We provide a warranty to cover any defective parts within 2 years of your purchase!

Kit major parts summary :
- 5x 2" anodized aluminum base bars
- 1x "X" slider & 2x "Y" slider
- 2:1 reduction gear box for X & Y
- 2x Nema 23 high torque3-phase 5A stepping motor

- 2x 3DM583 stepping driver
- 2x laser head for 25mm mirror and 20mm lens
- 4x mirror mounts for 25mm mirror
- 4x tube mounts
- 2x limit switches
- 4x 3-band axial coupling
- 1x "X" slider track
- 2x "Y" slider track
- 2x stainless steel Y axial

Specification of the linear guide
-Working area: 500mm x 700mm (20" x 27.5")
-Condition: New
-Speed: X: 1000mm/s, Y: 550mm/s (with driver set to 1/32)


Specification
X motor:

• Brand: VF 5070 linear guide
• Step angle: 1.2 degree
• Torque: 188oz-in
• Current: 5.2A
• Resistance: 0.9ohm
• Inductance: 1.35mH
• Detente torque: 700g
• No. Wire: 6
• Weight: 1.1Kg (2.4lb)
• Length: 79mm

Y motor

• Brand: VF 5070 linear guide
• Step angle: 1.2 degree
• Torque: 188oz-in
• Current: 5.2A
• Resistance: 0.9ohm
• Inductance: 1.35mH
• Detente torque: 700g
• No. Wire: 6
• Weight: 1.1Kg (2.4lb)
• Length: 79mm

Stper Motor Driver

Brand:VF linear guide

• Extra-low motor noise offers excellent quietness
• Anti-Resonance, provides optimum torque and nulls mid-range instability
• Self-test and Auto-configuration technology, offers optimum responses with different motors
• Microstep resolutions programmable, from full-step to 102,400 steps/rev
• Supply voltage up to +60 VDC
• Output current programmable, from 0.5A to 8.3A
• Pulse input frequency up to 200 KHz
• Automatic idle-current reduction
• Supports PUL/DIR and CW/CCW modes
• Suitable for 3/6 leads 3-phase moto
