Home > Products > Rubber Tile Making Machine > Solid Tyre Vulcanizer
Solid Tyre Vulcanizer
USD $3,450 - $36,500
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Qingdao
You May Like
-
Automatic Rubber Platen Vulcanizing Press/Rubber Mat Making Machine
-
Promotion!!Rubber Gasket Making Machine/Automotive Electric Heating Rubber Curing Press
-
Promotion!!Rubber Mouse Pad Making Machine/Rubber Gasket Making Machine/Rubber Sheet Curing Press
-
Solid Type Vulcanizer/Rubber Sealing Washer Moulding Press
-
Promotion!!Rubber Mouse Pad Making Machine/Automotive Electric Heating Rubber Sheet Curing Press
-
Germany Technology 2 Stations Rubber Vulcanizer/Rubber Wheel Plate Rubber Vulcanizer/Curing Press
Product Details
| Type | Vulcanizer | Place of Origin | Shandong, China | |
| Brand Name | Yahua | Model Number | XLB | |
| Certification | ISO9001:2008 |
Product Description
Specifications
Professional Rubber Mouse Pad Making Machine1.high speed, inorout mold
2.PLC control,easy operation

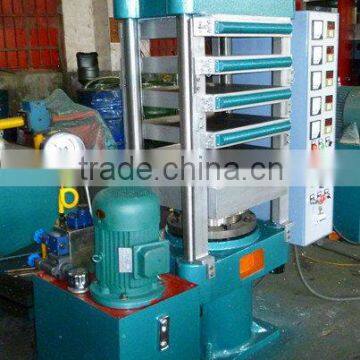

Solid Tyre Vulcanizer
1.Introduction
1.Hydraulic Presses are the machines in which rubber compound and other materials are shaped as
finished products. Ranging from 50 to 2500 Tons, these machine are manufactured with operation safety and optimum machine production in mind.
2.Controls and hydraulic system are perfectly matched to ensure complete customer satisfaction
3.The frame is fabricated from tested-quality steel profiles and plates of suitable thickness to withstand load during operation. Maximum frame rigidity is achieved through computer aided frame design for longer life of press. Precise machining of parts and their careful assembly ensures accuracies like parallelism between platen & bed and right angularity between the bed and the moving platen.
4.The low noise powerful hydraulic unit is designed as per latest standards and assembled with best
quality components. All valves are manifold mounted for easy and quick maintenance. A pressure relief valve protects against overloading of the press. During curing period, the motor stops which reduces electricity consumption. These presses provide fast approach, slow pressing and fast return speeds.
5.The change in speed can be manually preset with the help of limit switches. These presses give more production because numbers of breathing, breathing duration, curing time, temperature of platens etc can be controlled.
2. Technical Parameter as follows:
| Type | XLB-D300*300*1 | XLB-D350*350*2 | 500*500*2 | 800*800*1 | 1400*1700*2 | 2000*2000*2 | 1600*1800*1 |
| Nominal mounding power(MN) | 0.25 | 0.25 | 0.5 | 1.00 | 8.00 | 6.00 | 8.00 |
| Plate size(mm) | 300*300 | 350*350 | 500*500 | 800*800 | 1400*1700 | 2000*2000 | 1600*1800 |
| Working layer number | 1 | 2 | 2 | 1 | 2 | 2 | 1 |
| Piston stroke(mm) | 250 | 250 | 250 | 300 | 700 | 600 | 300 |
| Plate unit area pressure(Mpa) | 2.8 | 2.1 | 2.0 | 1.6 | 3.4 | 1.5 | 2.8 |
| Plate distance(mm) | 125 | 125 | 125 | 250 | 350 | 300 | 300 |
| Piston diameter(mm) | 152 | 152 | 200 | 300 | 400 | 340 | 400 |
| Working fluid pressure(Mpa) | 13.8 | 13.8 | 16.0 | 14.1 | 15.9 | 16.5 | 15.9 |
| Number of cylinder | 1 | 1 | 1 | 1 | 4 | 4 | 4 |
Service after sale:
We giveone year quality guaranteeand long-term technical support. We also can train your workers for free. If you need, we can install and assemble the rubber hydraulic vulcanizing press machine in your workshop. And you should pay for the necessary costs, according to the international tradition.
Qingdao Yahua Rubber Machinery is 100% RUBBER MACHINERY manufacturer
Passed ISO9001:2008 certificate
Contact Person: Bella Xue
Office phone: 0532-83132191/83137817
Office Fax: 0532-83137817
