Hot sell , shoe sole press machine, XLB-D500*500*2/0.80MN,Qingdao

Specifications

shoe sole press machine

1.Main Usages:

  (1)It is mainly used for vulcanizing all kinds of rubber and plastic model products and non-model products.

  (2)Applicable line:Rubber shoe sole,rubbersheet, tire,Oil Seal,O Ring,Gasket,Engine Mountings,Hardware Rubber,Molded rubber parts and etc.

2.Working Principle:

  1. Being a column struture and downward pressing type(from down to up).

The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure,the heating plate opens by the self-weight of the heating plate, platform and plunger

 2.This engine base is combined together with the cylinder and base frame,which is made of ductile iron to increase the cylinder intensity and abrad ability,The cylinder is fitted with the sealing washer  made of the oil-resisting rubber for the sealing purpose.

 3.By moving the operational handle of the control value to the two different positions,the heating plate can open and close.

4. It uses the electric pipe for heating,thus makes the workshop clean with easy and reliable operation.

3. Advantages :

1. High speed open/close mold, low mold-locking speed, protect mold.

2. Adopt new sealing material, excellent seal and long life use.

3. Matching-advanced oil way reduces energy consumption.

4. Simple structure,  easy to operate,wide application.

5.We  can provide push- pull mode device according to your request. Hand control and PC control, PLC control are optional.

4.TECHNICAL SPECIFITIONS:

 Nominal molding force ................................................. 0.80MN

 Hot plate size. ........................................................ 500*500mm

The hot plate unit area of pressure................................3.2MPa

Piston diameter.............................................................. 250mm

Hot plate Clearance....................................................... 125mm

Working  layer number.......................................................... 2

Working liquid pressure............................................. 16.3MPa

Heating mode................................................................Electrical

The highest tempreture.....................................................200°C

Control way............................................................... Semi-automatic

Motor power:.................................................................2.2KW,1420r/min

Total weight (about).............................................................2.0T

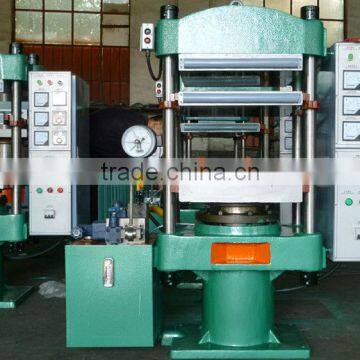

5. Pictures Show :

0.8MN  EVA slipper foaming machine

Products:

Dear ,if you 're interested in our machine,just tell us the Plate Size or mold size ,working layer number you need,

we can design the best machine for you!!! Feel free to contact us!
