Home > Products > Rubber Product Making Machine > Car Rubber Part Platens Molding Press/Rubber Water-Seal Products Forming Hot Platen Press Machine

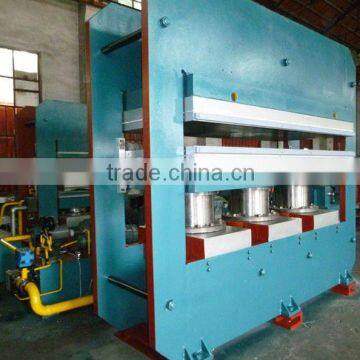

Car Rubber Part Platens Molding Press/Rubber Water-Seal Products Forming Hot Platen Press Machine
- 50 Set / Sets per Month
- Qingdao
You May Like
-
Machine to make rubber stamps
-
silicone bracelet making machine
-
Automatic Vulcanizer/Rubber Machinery Components Curing Press and Shaping Machine/Rubber Mould Press and Vulcanizing Machine
-
Auto Control Rubber Slipper Making and shaping Machine/Rubber Vulcanizer/Curing Press
-
Hydraulic Press For Rubber VulcanizatioRubber Goods Vulcanizing Press/Rubber O ring and V-sealed washer Shaping and Curing Press
-
Full Automatic Large Advanced Rubber Moulding Press/rubber vulcanizing press
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Yahua | Model Number | XLB | |
| Voltage | According to your voltage | Power(W) | According to the machine | |
| Dimension(L*W*H) | According to the machine | Weight | According to the machine | |
| Certification | ISO9001 | Warranty | One year |
Product Description
Specifications
hydraulic hot platen press1.Mainly used for the clampdown of all kinds of rubber ,
2.Without oil spilling,
3.Low noise
Rubber Plate Vulcanizing press is the machinery which produce all kind of rubber products, and thermosetting plastic like as related specifications aseling products, projected rubber, rubber plate and so on.
This Machinery has three types: frame type, pillar type and jaw type. It is economical advantage of compact structure, high working pressure, and high producing efficency.
Rubber Parts for Car Electric Platens Molding Press
Model and its Parameter as follows:
Model | XLB-D800*800*1 | XLB-Q1500*4000 | XLB-D400*400*1 |
Nominalmoundingpower(MN)
| 160 | 24.00 | 0.8 |
Plate Size(mm) | 800*800 | 1500*4000 | 400*400 |
Plate pressure(Mpa) | 2.5 | 4.0 | 5.0 |
Piston stroke(mm) | 400 | 350 | 250 |
Distance between hot plate(mm) | 400 | 350 | 250 |
Working layer Number | 1 | 1 | 1 |
Pressure of working fluid(Mpa) | 15.7 | 15.3 | 16.0 |
Total heat power(KW) | 14.4 | 33 | 6.0 |
Heat type | Electricity | Steam Heating | Electricity |
Maximum working temperature(Degree) | 200 | 170 | 200 |
Configuration type | Frame | Frame | Frame |
Motor power | 3KW,960R/Min | 11kw | 2.2KW |
