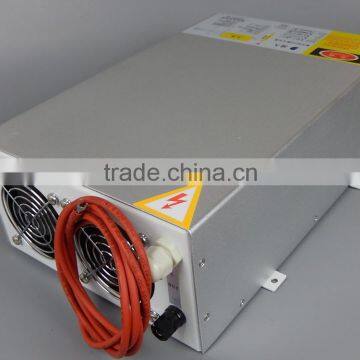

high quality 60W power supply for laser cutting machine

1) Good compatibility: It can be applicable to 50W , 60W laser tube.

2) Cutting type or sculpting type: The cutting type has a good power stability and strong adaptability; while the sculpting type has a quick response speed and good engraving effect. It also can prolong laser tube’s service life.

3) Easy Control: The start and stop of laser can be easily controlled by TTL level.

4) The power supply has output open circuit protection.

5) The power supply has TTL signal indication, water through signal indication and laser output indication.

6)This power supply has the BUTTON to test output laser manually.

7) Application: Sculpture and cut acrylic, fabric, double color sheet and rubber, etc.

Input

Input voltage

AC 220V or 110V(please specify when placing order)

AC frequency

47-440HZ

Max input power

450W

Output

Max output current

3A

Max output voltage

DC 35KV

Max output current

DC 24mA

Efficiency

>=90%(full load)

MTBF(Mean time between failure)

>=10000hours

Response speed

<=1ms(from the TTL signal is given to the output current up to 90% of setting current)

Withstand voltage

Input-output,input-enclosure:AC1500V 10mA 60s,output cathode is connected with enclosure.

Weight

2.2kg

Environment

Operating temperature:-10~40degrees, relative humidity:<=90%

Cooling

Force air cooling(FAC)

Dimension

L*W*H=207*144*97mm

CO2 laser tube, laser power supply, laser control systems, laser focus lens, laser reflector mirrors, water chillers, laser mechanical parts, frequency inverter, ect.

laser cutting machines, laser engraving machines, laser marking machin, ect.
