Hydraulic Single Blade Rubber Cutter
- Qingdao
- T/T
You May Like
-
Automatical Single Knife Hydrulic Rubber Bale Cutter-XQL
-
Automatical Single Knife Hydrulic Rubber Bale Cutter
-
China Most Competitive Price Single Knife Rubber Cutter/Rubber Cutting Machinery
-
Single blade hydraulic cutter/rubber cutting machine
-
Hydraulic Rubber Block Cutter/Single Knife Rubber Cutting Machinery
-
shoes cutter
Product Details
| Place of Origin | Shandong, China | Brand Name | YAHUA | |
| Model Number | XQL |
Product Description
Specifications
1.bale cutter for waste width from 660mm to 1000mm2.High speed 10 to 25 seconds
3.we are manufacturer
4.quick delivery
Specification

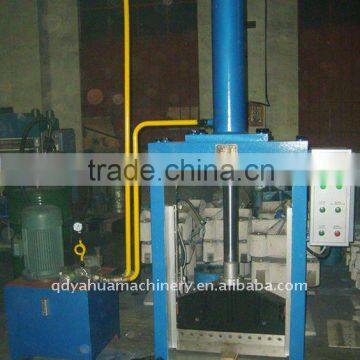

This bale cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The lead is casted on the base under the rubber knife for protecting the edge of the rubber knife.
When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber.
Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder.
Purpose/performance characteristics:
1.Simple operation
2.Deliever immediately
3.Best after-service
4.Professional manufacture ,not trading company
Main technical parameter
Model | XQL-80 | XQL-160 | |
1 | Width(mm) | 660 | 790 |
2 | Stoke(mm) | 680 | 680 |
3 | Rated cut-off force(KN) | 80 | 160 |
4 | Diameter of hydro-cylinder(mm) | 150 | 200 |
5 | Time Taken by the Stroke(S) | 10-16 | 10-16 |
6 | Rated working oil pressure (Mpa) | 4.5 | 5.0 |
7 | pumping flow | 63L/min | 63L/min |
8 | Motor power (KW) | Y132M2—6,5.5KW,960r/min | Y132M2—6,5.5KW,960r/min |
9 | Overall size(mm) | 1950*500*2300mm | 2150*550*2500 |
