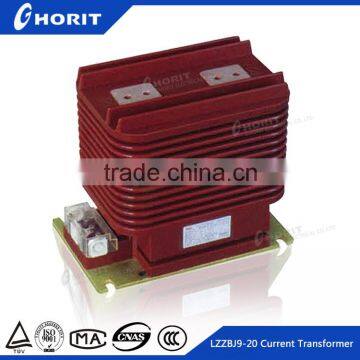

LZZBJ9-20 cast-resin insulated post type current transformer 20kV 600 to 1200VA current transformer

LZZBJ9-20  current transformer

description

The Cutrent transformer is spport type epoxy resin insulated designed for current power measurement and relay protection is a power system with rated frequency 50Hz rated voltage 20kv.

type description

construction

The current transformer  is totally enclosed it’s core pimary winding and secondary windings are cast with epoxy resin the base is fitted with rating plate. Earthing bolt and 4 mounting holes There is a protective cover for the secondary terminals.

Service conditon

• Altitude:Not over 1000m;
• Ambient temperatu re:-5°C to+40°C:
• Relative humidity:less than 85%,at 20°C :
• The product has passed the divect vibration test with the intensity of 0.4g three
• sine waves,equivalent to nice degree earth quake on the richter scale

Technical data

Performance conforms with IEC standard and GB 1208-2006 Current Transformer;

Rated insulation  level withstand vltage: Power frequency voltage 65KV;

Lighting impulse withstand voltage;

Relation of 10p accurate limit factor and secondary load is shown as following.

Overall dimensions

When ordering, please specify the following

1. type and current ration;

2. accuracy class and secondary output

3. insulation class and service condition
