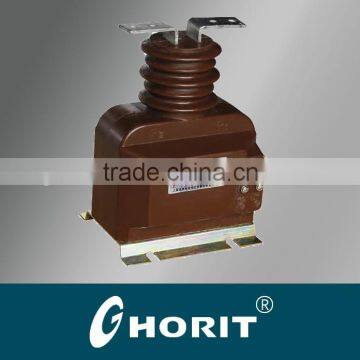

LQJ(C)-10 coiled type current transformer

Specifications

LQJ(C)-10 current transformer

description

Resin casting insulated current transformer LQJ(C)-10 is designed for measurement of current and electronic energy and relay protection in electronic system at rated frequenty of 50Hz,and rated voltage of 10kV.

type description

Service conditon

• Altitude:Not over 1000m;
• Ambient temperatu re:-5°C to+40°C:
• Relative humidity:less than 85%,at 20°C :
• The product has passed the divect vibration test with the intensity of 0.4g three
• sine waves,equivalent to nice degree earth quake on the richter scale

construction

The transformer use expoxy resin as main insulation. The primary winding and part of secondary winding are cast to be one body cast.The other part of secondary and ring core are enposed.The primary lead on the top and secondary on the side.

Technical data

Performance conforms with IEC standard and  GB1208-87  Current Transformer

Overall dimensions

When ordering, please specify the following

1. insulation level

2. current ratio

3. accurate level and rated secondary load

4. use environment
