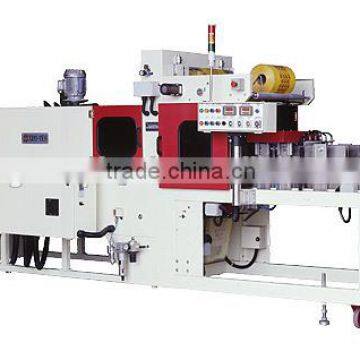

Auto Counting and Collating Shrink Wrap Package Machine

Specifications

 Auto  Counting and Collating  Shrink Wrap  Package Machine:

• 1. Standardized machine structure, ruggedly constructed throughout, combined with innovative electronic drive system for
  maximum convenient maintenance.
• 2. Modular components feature maximum durability without deformation while maintaining normal performance at all times.
• 3. Employs popular famous brand components with consistent specifications for convenient interchange ability .Also, ideal for
  mass production line management.
• 4. Employs European or Japanese electronic sensor for maximum dependability of performance.
• 5. Constant temperature. one piece fabricated bronze sealing blade, pick-up type constant temperature hear tube combined
  with SCR temperature control for maximum stability, power saving and quick change.
• 6. Cast bronze sealing blade is coated with teflon for protection without sticking of glue.
• 7. BLADE PROTECTION DEVICE; Equipped with micro-sensor. in case cutting hard object, the blade kickback automatically to
  protect machine structures and minimize package damage.

• Model	Voltage	Consumption (KW)	Machine size  (LxW)	Speed range (PPM)
  SA-106-1	220/380/415V	25kw	4700x1160mm	1~22
  SA-106-2	220/380/415V	50kw	4700x1820mm	1~44

  *Specifications subject to change without prior notice.
