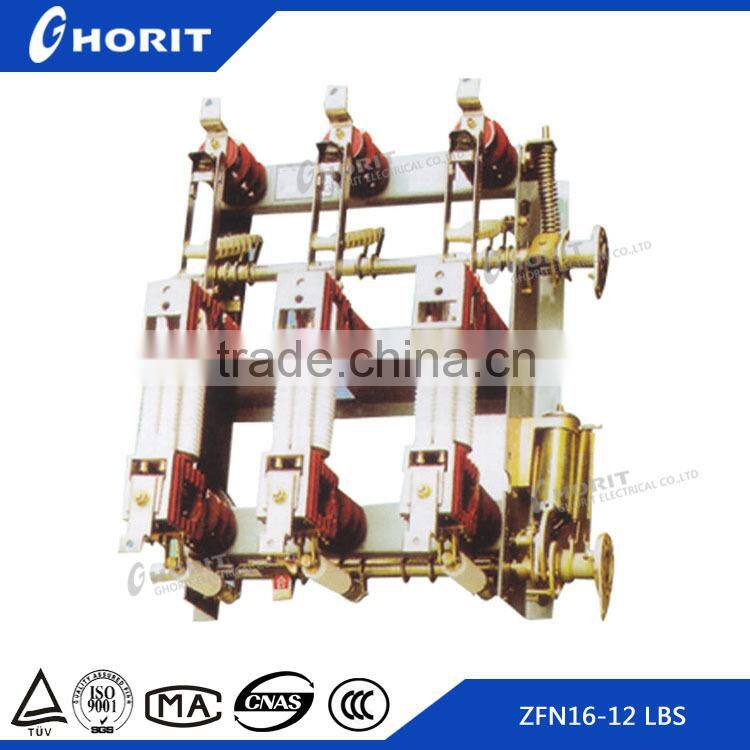

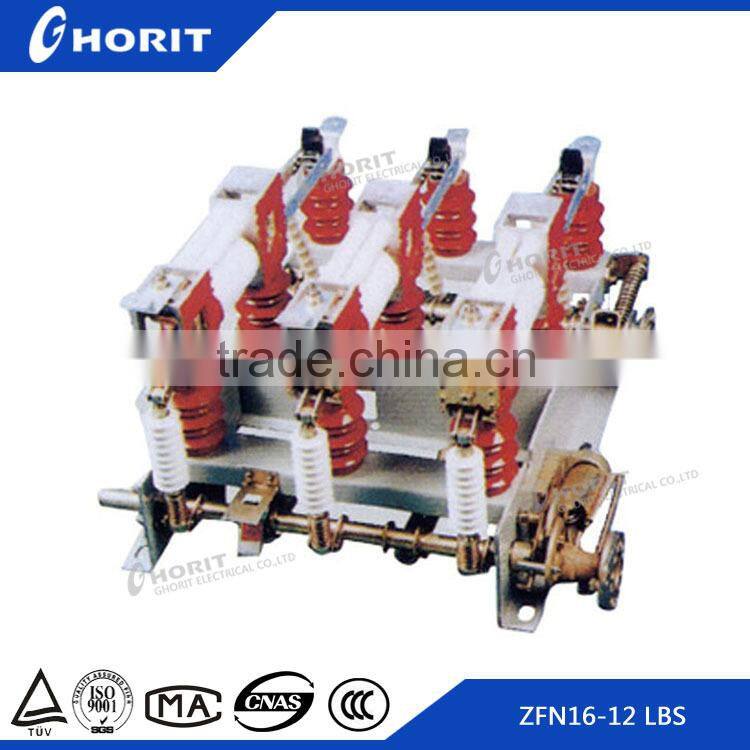

ZFN16-12 800A Load Break Switch Indoor Switch 400A Isolating Switch

FOB Price

US$ 600 - 1,120 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	ghorit
Model Number	ZFN16-12 Series	Type	Other, high voltage load switche
Poles Number	3

Number	Name	Unit	Parameter
1	Rated voltage	KV	12
2	ing voltage	KV	12
3	Rated frequency	Hz	50
4	Rated voltage	A	630
5	Rated power load switch-off current	A	630
6	Rated closed switch-off current	A	630
7	5%Rated power load switch-off current	A	31.5
8	Rated cable charging switch-off current	A	10
9	Rated capcity switch-off current	A	400
10	Rated no-load transformer switch-off curent	A	6000KV Acurrent of no-load transformer
11	1min power frequency withstand voltage(value) to ground,interphase,cacuum break/isolation break	KV	42/48
12	full wave lighting impulse resisting voltage(peak) to ground,interphase,vacuum break/isolation break	KV	75/85
13	Rated short-time withstand current (heat-stabling)	KV/S	20/3
14	Rated peak withstand current (machine-stabing)	KA	50
15	Rated short-circuit controlly current	KA	50
16	Rated current break times	times	10000
17	Mechanical life	Times	10000
18	Automatic striking and grinding cumulative tickness	mm	3
19	switch on-and-off operating moment	Nm/(N)	175(350)

2,Technical parameter of Load Swith Fuse box (please see the table)

Number	Name	Unit	Parameter
1	Rated voltage	KV	12
2	ing voltage	KV	12
3	Rated frequency	Hz	50
4	Fuse box Max.Rated current	A	125	200
5	Rated transfer current	A	2000	3150
6	Switch-off time of fusebox stroking switch	ms	35±5
7	Rated short-circuit switch-off current (prospective value)	KA	31.5
8	Rated short-circuit controlly current (prospective value)	KA	80
9	1min power frequency withstand voltage(value) to ground,interphase,cacuum break/isolation break	KV	42/48
10	Lighting impulse resisting voltage(peak) to ground,interphase,vacuum break/isolation break	KA	75/85
11	Fuse box strike output energy	J	2-5

3,Technical parameter switch with fuse box(please see the table)
