FPC High quality laser marking machine

1. Company Information

Shenzhen Heng Jin ZhiTechnology Co., Ltd. based in Shenzhen & established in 2014,and specialized in automatic soldering equipment, automatic locking screw equipment, automated dispensing equipment, labeling machines, laser machines, ACF machines, automated assembly line,other high-tech enterprise automation control equipment,standardizedmachines,non-standard machines and related product development, production, sales and import and export.We provided high-speed, high-precision fully automated technology programs with high reliability and flexibility to our customers mainly in the telecommunications, semiconductor, plastic modules, automotive electronics, new energy and other areas. Currently, our products are mainly exported to Europe, America, Southeast Asia and other markets, the main customers include Oticon, Electrolux. Bosch, Flextronics, Foxconn, Panasonic, Philips, Huawei, ZTE and so on. Heng Jin Zhi Technology Co., Ltd. has accumulated years of technology industry experience, adhere to the people-oriented, innovative development concept, to provide 24-hour service to support customer demand, professional engineers to help customers complete the installation, commissioning, training and process improvement. We look forward to providing professional solutions for automated production processes and agents to join us in the global market. Our vision: to become a global manufacturer and marketer of leading automation products. Our mission: to create value for customers.

1.1 Our Team

1.2 Our Processes

2. Production description

2.1 Machine specifications

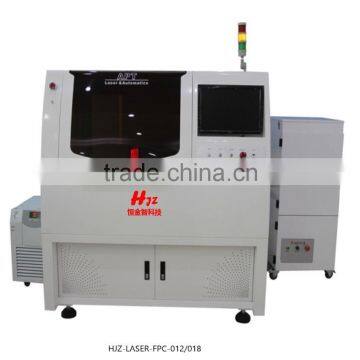

 2.2 Machine photo

2.3 Porduct function

1.FPC laser cutting machine is mainly used for the cover film (CVL), a flexible board (FPC) Flex PCB (RF) and thin plywood cut to shape. The device without a mold or protective plate is fixed, effectively improve the processing speed and accurate machining results through the use of high-energy ultraviolet laser, precise control of the laser beam, can flexible circuit boards and organic coating precision cutting. Meanwhile, the apparatus may also cut a variety of substrate materials, such as: silicon, ceramic, glass.
2. With the control software with independent intellectual property rights, user-friendly interface, complete functions, simple operation; CCD automatic visual homing support multi-target catch target; can achieve great graphics automatically or manually slitting slitting select stitching accuracy up to ≤ ± 3um. And laser scanning galvanometer precision machining simultaneously, mature and stable software technology, powerful editing, graphics modification can be carried out within the interface.

2.4 Machine characteristics

1. Cutting with high precision. Ultra-high-precision scanning galvanometer, cutting quality and precision of fully guaranteed.
2. Using high-performance ultraviolet laser with a short wavelength, high beam quality, higher peak power characteristics. Optical system design optimization, ensuring high beam quality, reduce the size of the focused spot, ensure accuracy; so almost no post-processing glitches, small thermal effects, non-hierarchical, precision cutting effect, smooth, steep side walls; minimize yellow side and carbonization.
3. using vacuum fixed sample without protective plate fixed mold, convenient, improve processing efficiency;
4. processed any graphics, cutting different thicknesses and different materials, slicing and synchronization is complete;
5. The use of intelligent design, spot compensation, automatic homing, homing focus, automatic correction, automatic positioning, automatic thickness measurement and compensation, with a one-time multi-panel arrays cutting function. Motor full stroke compensation processing better uniformity, small machining depth fluctuations, higher complex graphics processing efficiency.

2.5 Machine application

can do  flexible circuit boards and organic coating precision cutting. Meanwhile, the apparatus may also cut a variety of substrate materials, such as: silicon, ceramic, glass.

 3. Quality System

 - Assembly process control with traveling card.

 - 100% final inspection.

 - 72hrs running with power before out going.

 4. Delivery

5. Our Service

- On time delivery, 5-8 days deliery time for normal machine,cutomized machine maximum 15 days.

- Provide free training.

- 1 Year warranty except consumption parts.

- 10 hours response time for oversea customers, 72 hours can provide the repair service in customers country. normally we can provde 24hrs on line service. we can arrange our engineer go to oversea customer for training or repair if requested by customer.

- Free for software upgrade.

- Whole life service after warranty.
